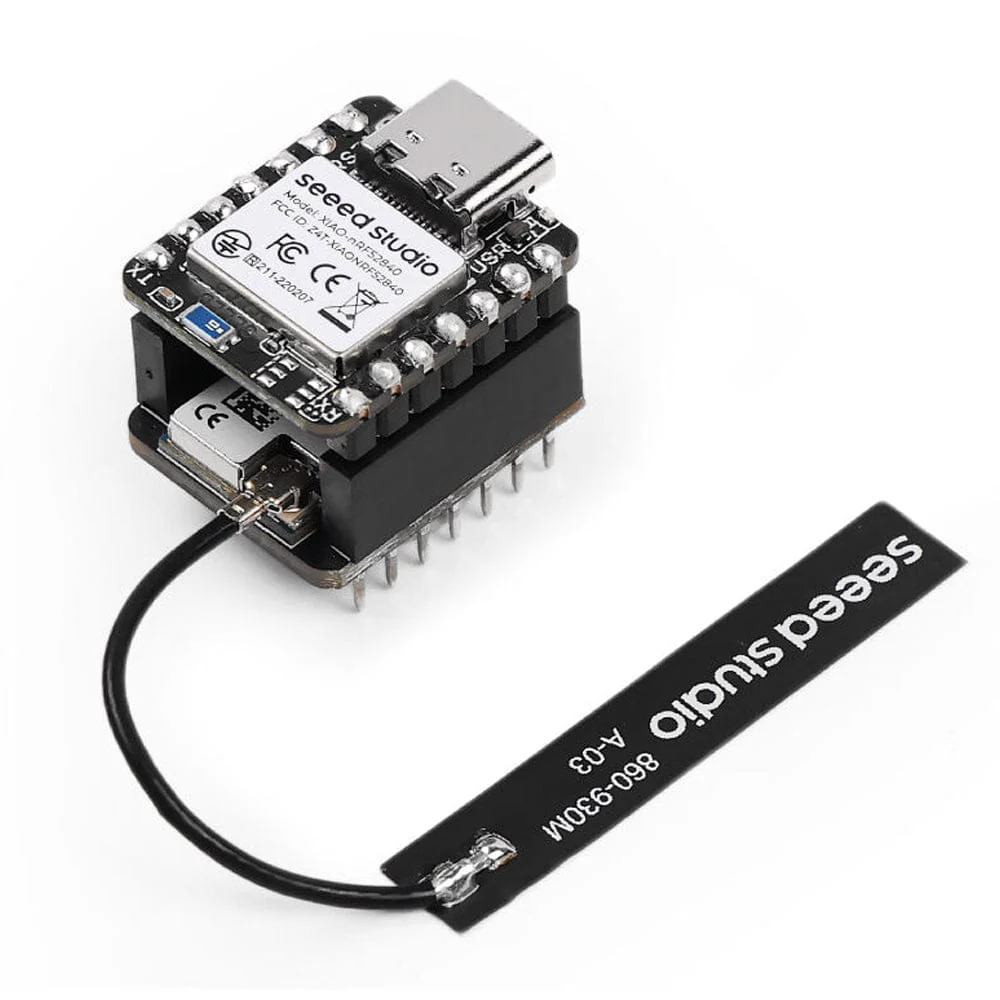

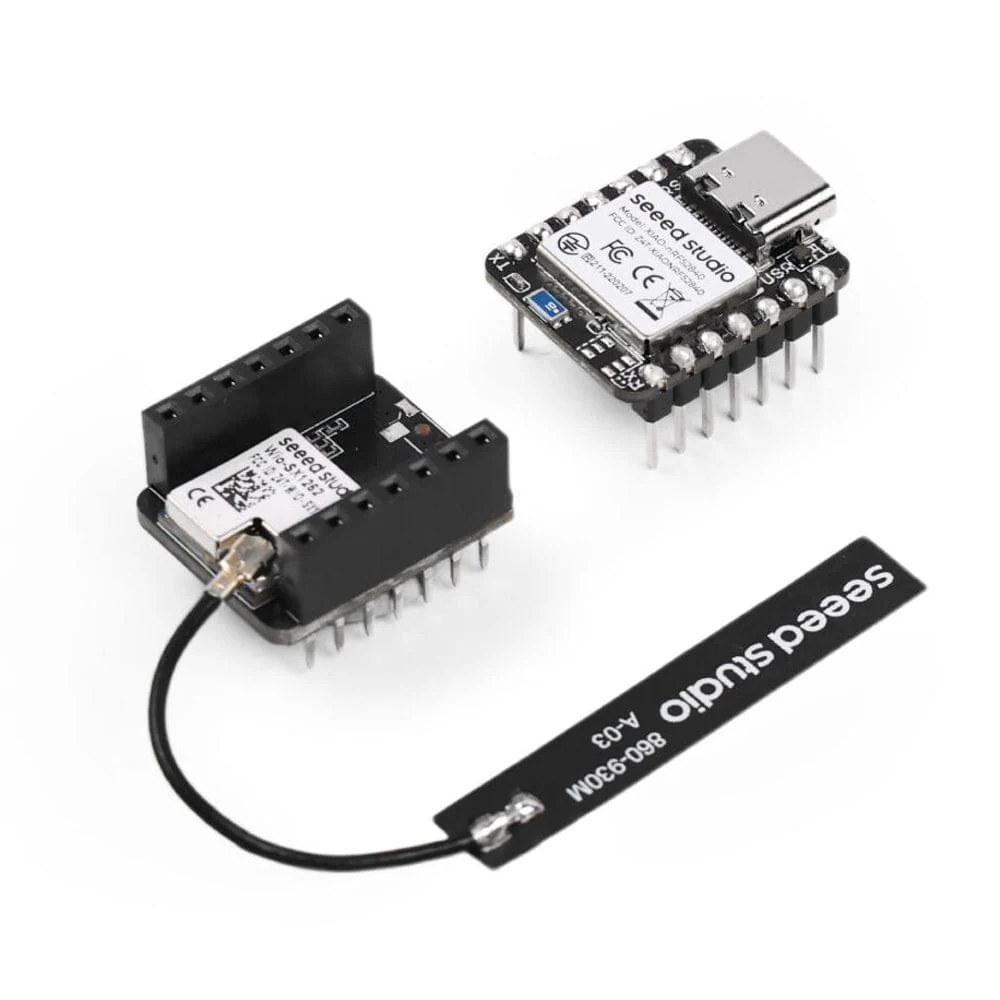

XIAO nRF52840 & Wio-SX1262 Kit for Meshtastic
This kit combines the XIAO nRF52840 and Wio-SX1262 to deliver low-power BLE 5.0 and LoRa (862–930 MHz) connectivity, making it ideal for Meshtastic, sensor networks, environmental monitoring and asset tracking projects.
This kit combines the XIAO nRF52840 with the Wio-SX1262 LoRa module, bringing together Bluetooth LE 5.0 and LoRa (862–930 MHz) connectivity in a compact, low-power solution. Designed for efficient wireless communication, it offers reliable performance while keeping power consumption to a minimum.
Thanks to its dual wireless capabilities, the kit is well suited to a wide range of applications, including Meshtastic networks, sensor networks, environmental monitoring, asset tracking, as well as educational projects and experimental or innovative developments.
Features
- Nordic nRF52840 microcontroller with FPU, up to 64 MHz
- Supports Arduino, CircuitPython and MicroPython
- Semtech SX1262 LoRa transceiver for long-range communication
- Supports 868 MHz and 915 MHz LoRa bands
- Dual wireless support for Bluetooth and LoRa operation
- Compact design measuring 8 × 22 × 23 mm
- Integrated antenna for space-saving installations
Specifications
| Product Series | XIAO nRF52840 |
| Main Chip | Nordic nRF52840 |
| Processor | ARM® Cortex®-M4 with FPU runs up to 64 MHz |
| LoRa Module | Wio-SX1262 Based on Semtech SX1262, supports 862-930MHz |
| Wireless | Bluetooth 5.0 / NFC |
| Interface | XIAO nRF52840: 1x UART, 1x IIC, 1x SPI (connect to SX1262), 1x NFC, 1x SWD, 11x GPIO (PWM), 6x ADC Wio-SX1262: 1x SPI (connect to XIAO nRF52840) |
| Power | Input voltage (Type-C): 5V Input voltage (BAT): 4.2V Charging battery current: 50mA/100mA Standby power consumption: <5uA |
| Working Temperature | -40°C ~ 65°C |
| Dimensions | 21 x 17.8mm |
| Supplier Code | 102010710 |
Hardware Overview

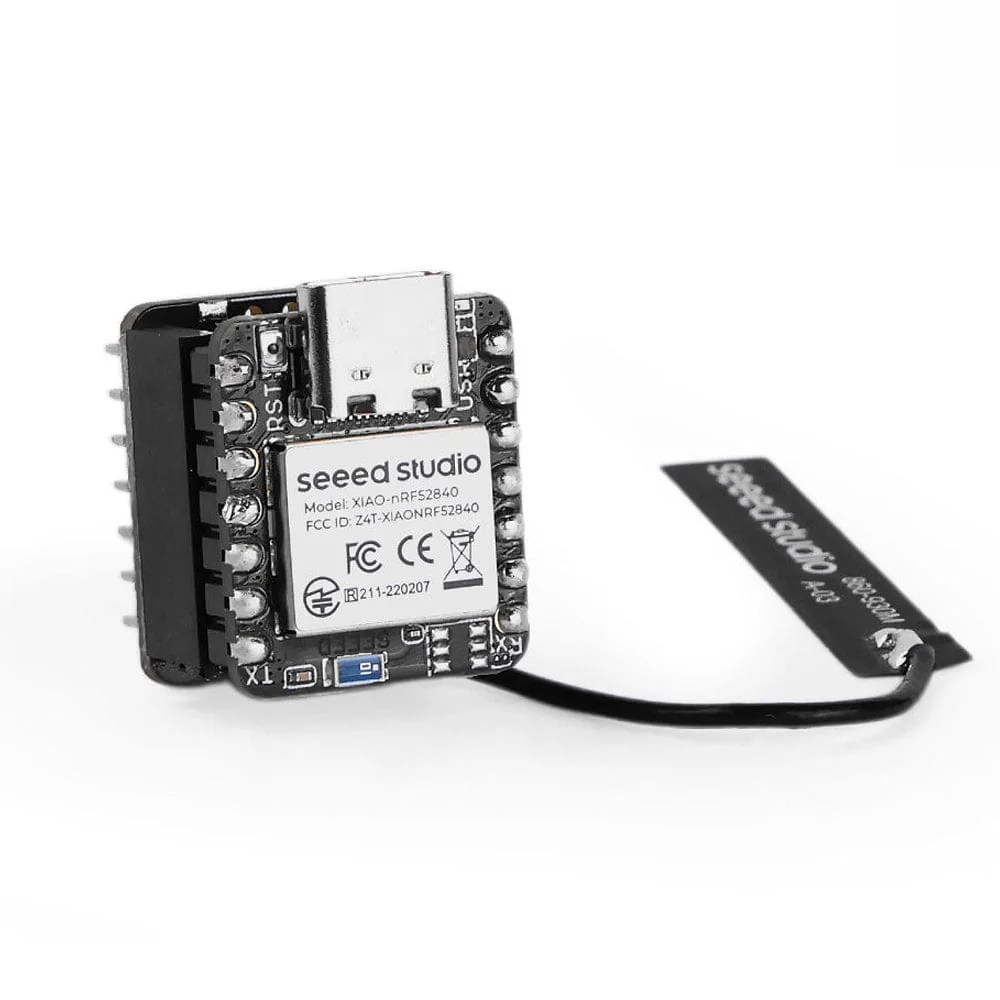

XIAO nRF52840

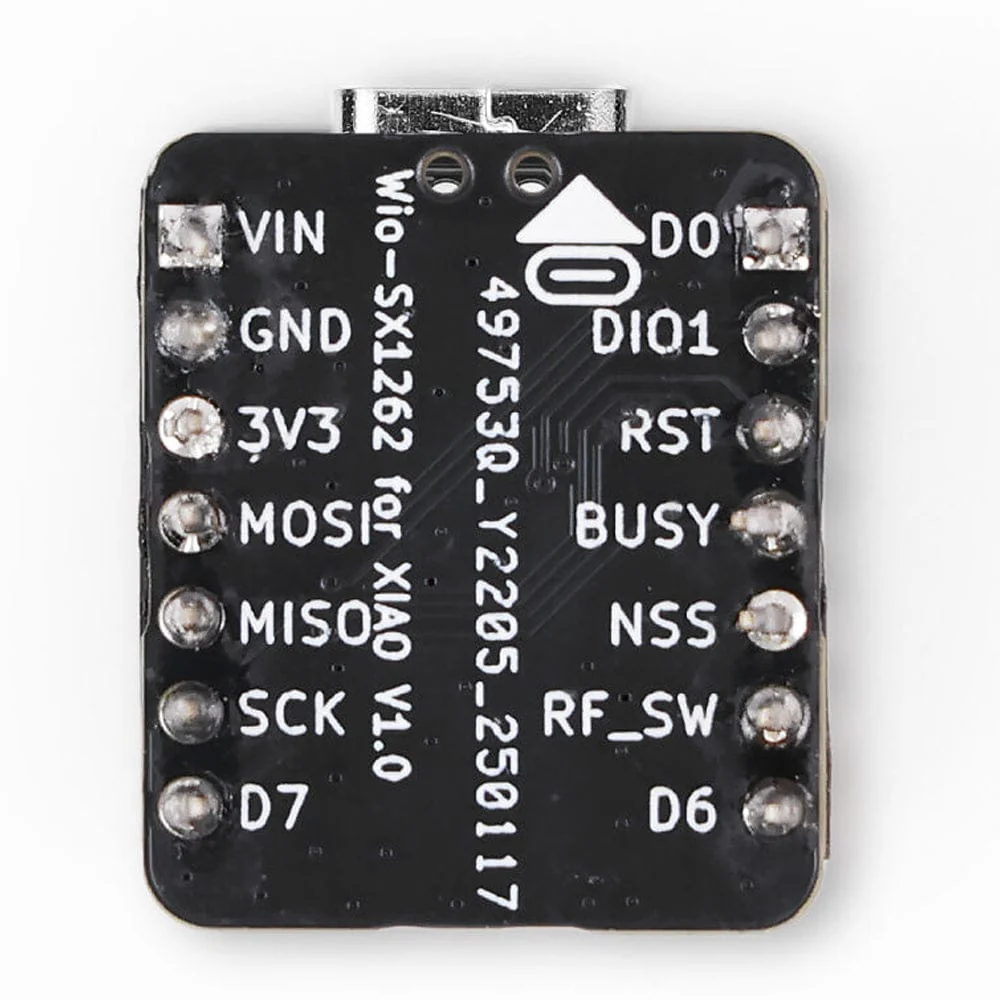

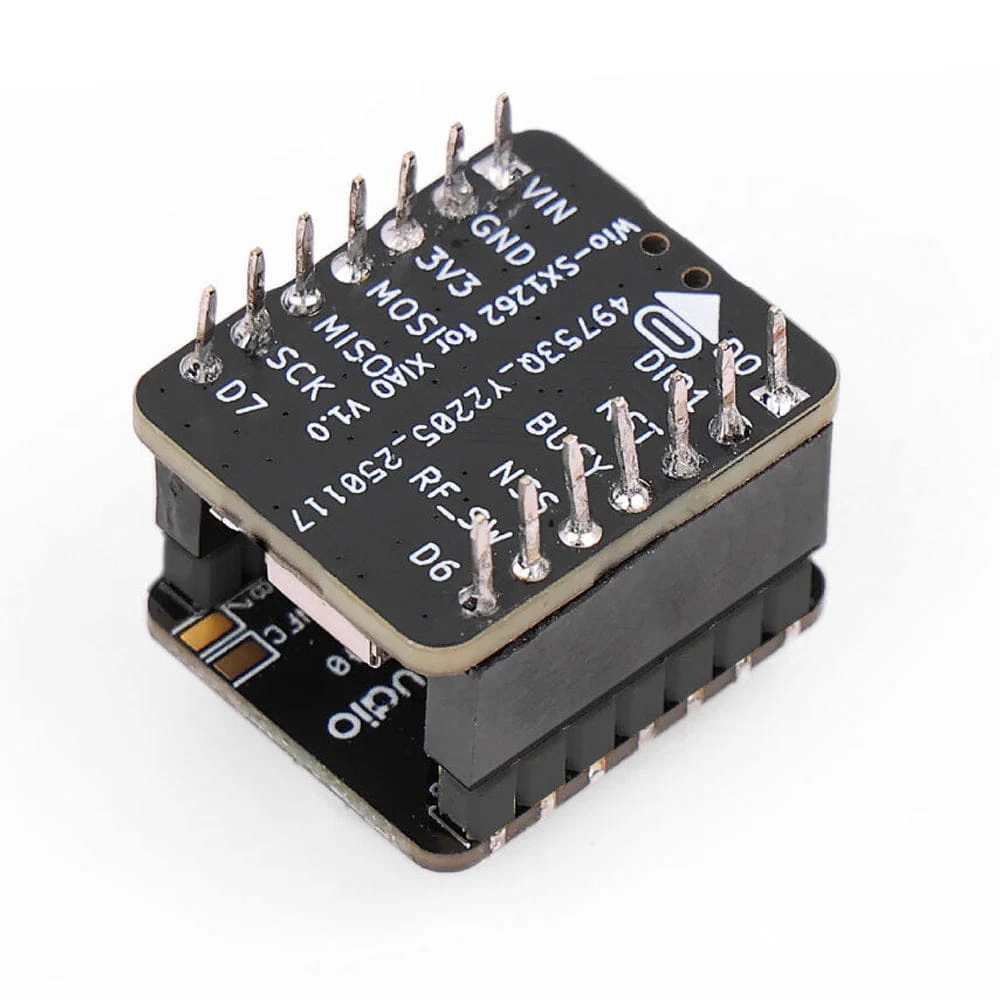

Wio-SX1262
Resources
- Wio-SX1262 for XIAO 3D file
- Wio-SX1262 Module Datasheet
- XIAO Reference Design
- Seeed Studio XIAO nRF52840 BLE Communication Distance Test Report
- Seeed Studio XIAO nRF52840 CE | FCC | MIC
- Schematic diagram of Wio-SX1262 for XIAO
- XIAO nRF52840 Kit Kicad Library

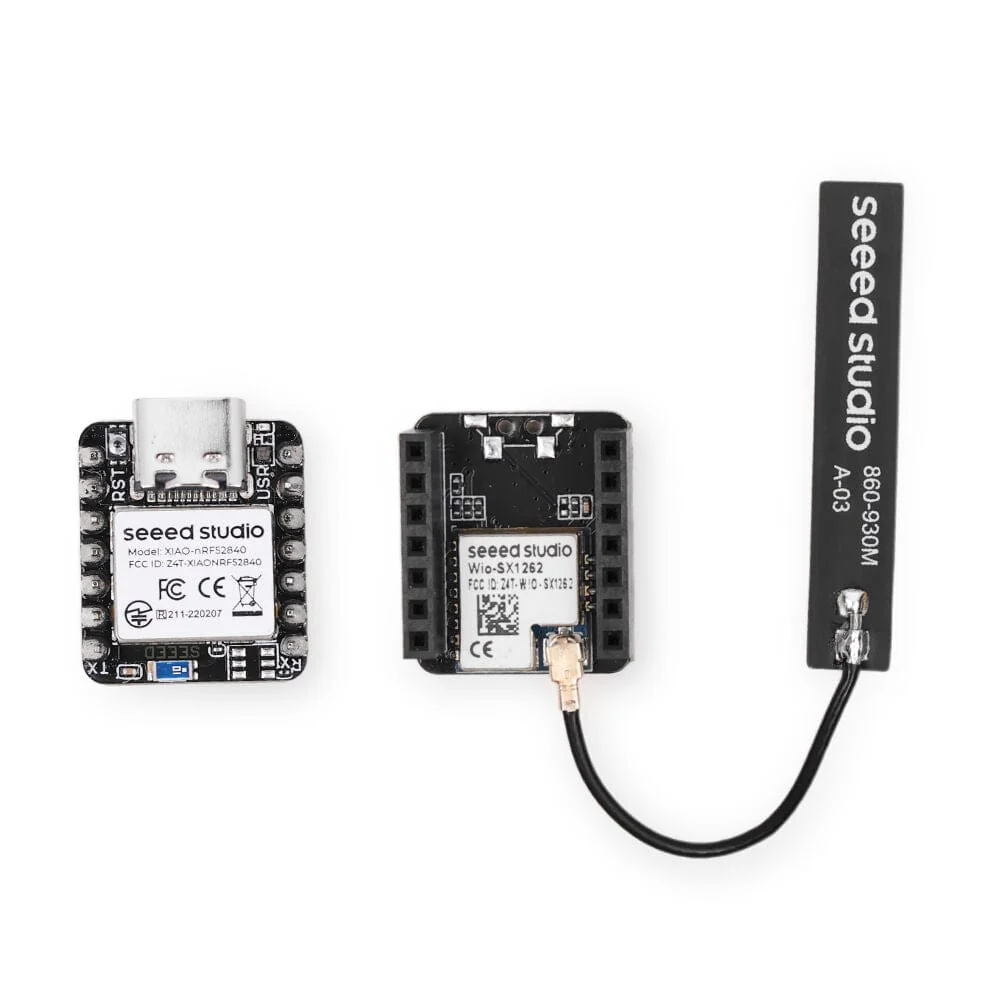

Package Contents
- 1x XIAO nRF52840
- 1x Wio-SX1262 extension board
- 1x LoRa antenna
