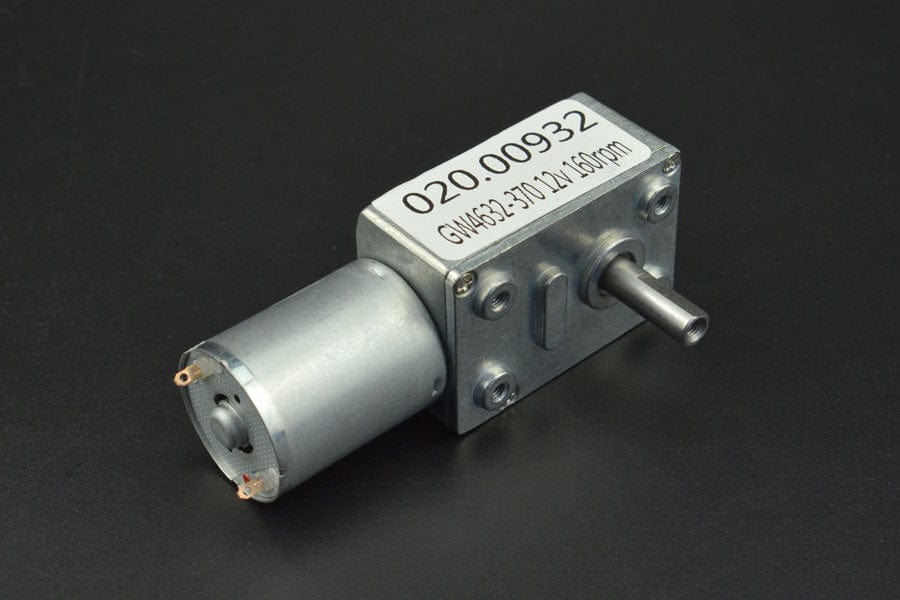

Turbo Metal Gear Worm Motor (12V 160RPM 2.2kg.cm)
HomeStore

Turbo Metal Gear Worm Motor (12V 160RPM 2.2kg.cm)

Turbo Metal Gear Worm Motor (12V 160RPM 2.2kg.cm)

The turbo metal gear worm motor uses a metal gear box for durability and a high torque output. Due to the special mechanical structure of the worm drive the motor output shaft is self locking and can not be rotated.
Warning: Do not stall motor for extended periods of time to avoid damage to the gearbox.

Specification

  • Operating Voltage: 6 - 15 V
  • Rated Voltage: 12V
  • No-load Speed: 160 RPM
  • No-load Current: 35 mA
  • Rated Torque: 128 RPM
  • Rated Current: 180 mA
  • Rated Torque: 0.55 kg.cm
  • Rated Power: 1.1 W
  • Stall Torque: 2.2 kg/cm
  • Stall Current: 1 A
  • Reduction Ratio: 1:37.3
  • Weight: 165 g

Shipping List

  • Metal Turbo Worm Gear Motor (12V 160RPM 2.2kg.cm) x1
$18.20
Turbo Metal Gear Worm Motor (12V 160RPM 2.2kg.cm)—
$18.20

More Images

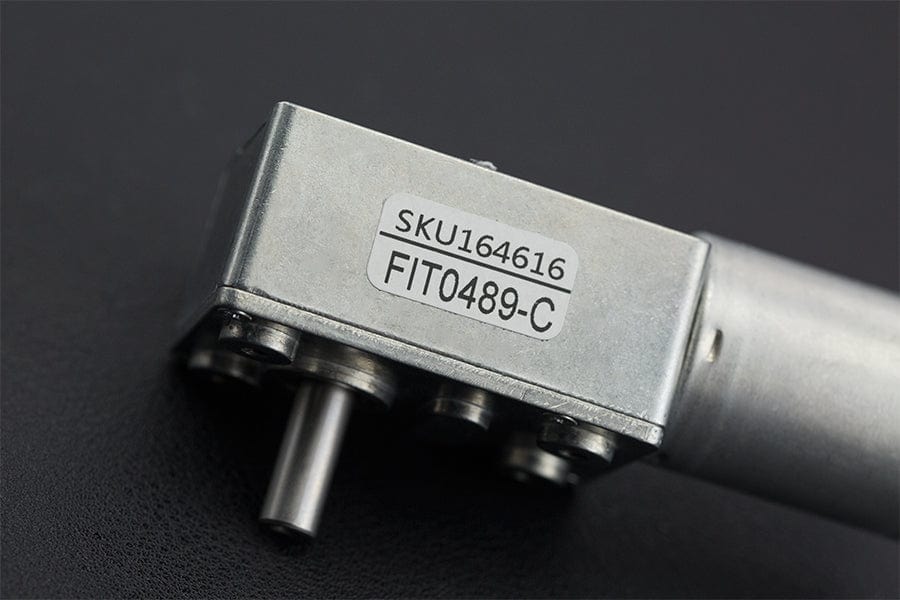

Turbo Metal Gear Worm Motor (12V 160RPM 2.2kg.cm) - Image 2

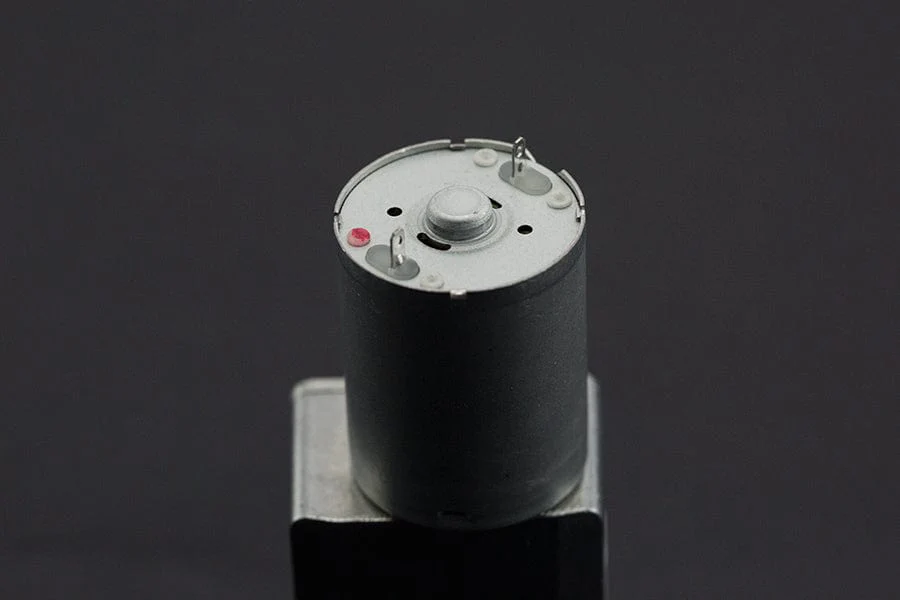

Turbo Metal Gear Worm Motor (12V 160RPM 2.2kg.cm) - Image 3
