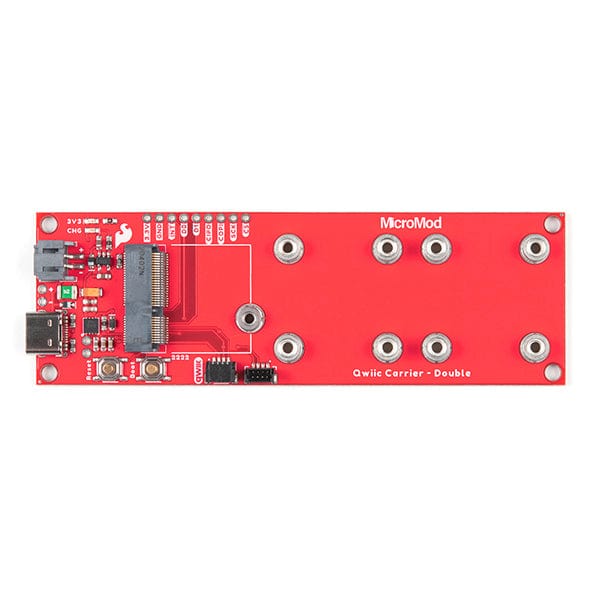

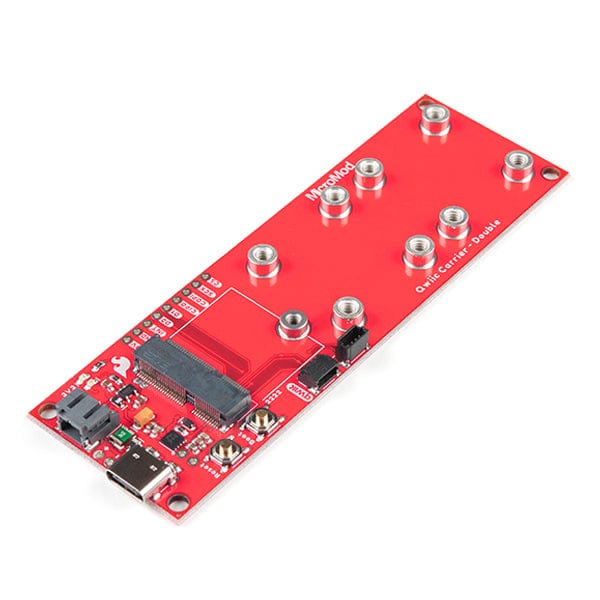

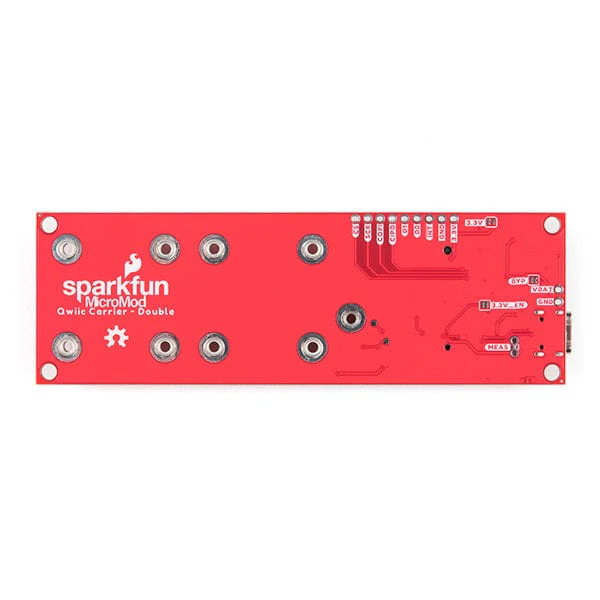

SparkFun MicroMod Qwiic Carrier Board - Double

The MicroMod Qwiic Carrier Board can be used to rapidly prototype with other Qwiic devices. The MicroMod M.2 socket provides users the freedom to experiment with any processor board in the MicroMod ecosystem. This board also features two Qwiic connectors and eight 4-40 screw inserts to connect and mount Qwiic devices.

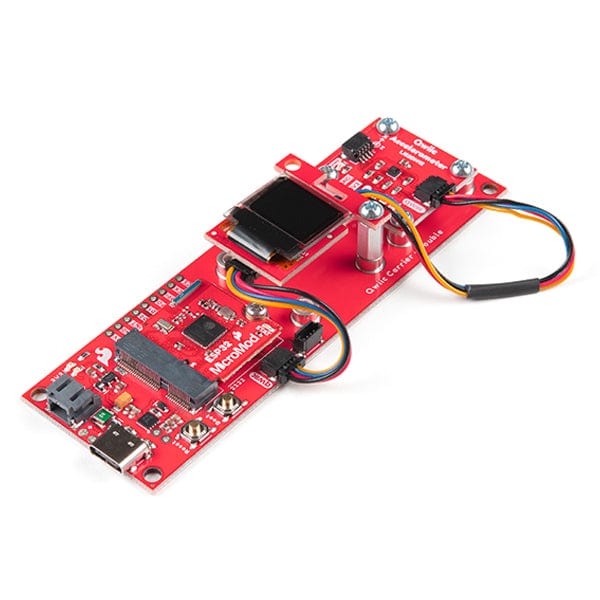

This version of the SparkFun MicroMod Qwiic Carrier Board features two ports for our standard 1in. by 1in. Qwiic breakouts. However, you aren't beholden to attaching just a duo of Qwiic breakouts since you are able to stack the boards on top of each other, allowing you to hook up a full circuit of Qwiic sensors and accessories to fully utilize your next project!

Get Started with the Micromod Qwiic Carrier Board Guide

• M.2 MicroMod Connector
• USB-C Connector
• 3.3V 1A Voltage Regulator
• Qwiic Connectors
• Boot/Reset Buttons
• Charge Circuit
• Eight 4-40 Inserts

Package Contents

• 1x MicroMod Qwiic Carrier Board - Double
• 1x Phillips #0 M2.5x3mm screw
• 10x Phillips Head 1/4in. 4-40 screws (for mounting additional boards to standoffs)

Hardware Documentation:

• Schematic
• Eagle Files

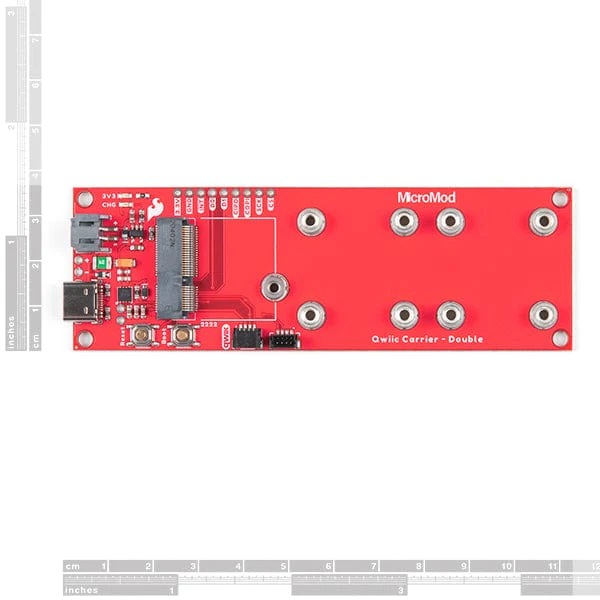

• Board Dimensions
• Hookup Guide
• Qwiic Info Page
• GitHub Hardware Repo

MicroMod Documentation:

• Full MicroMod Range
• Getting Started with MicroMod

• Designing with MicroMod
• MicroMod Info Page
• MicroMod Forums
