SOIC/SOT23-6 to DIP Adapter - 8-Pin

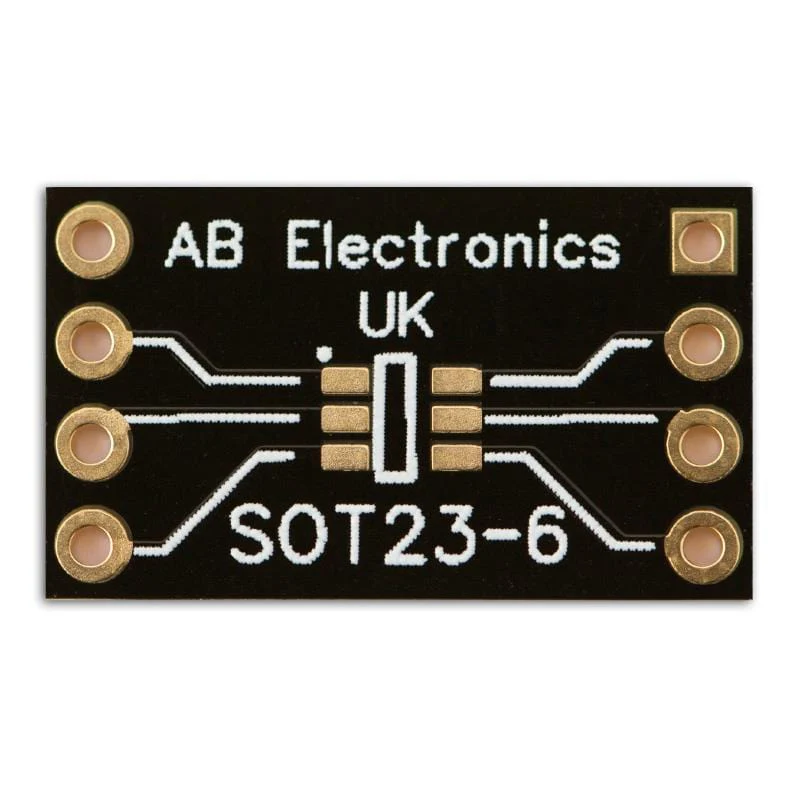

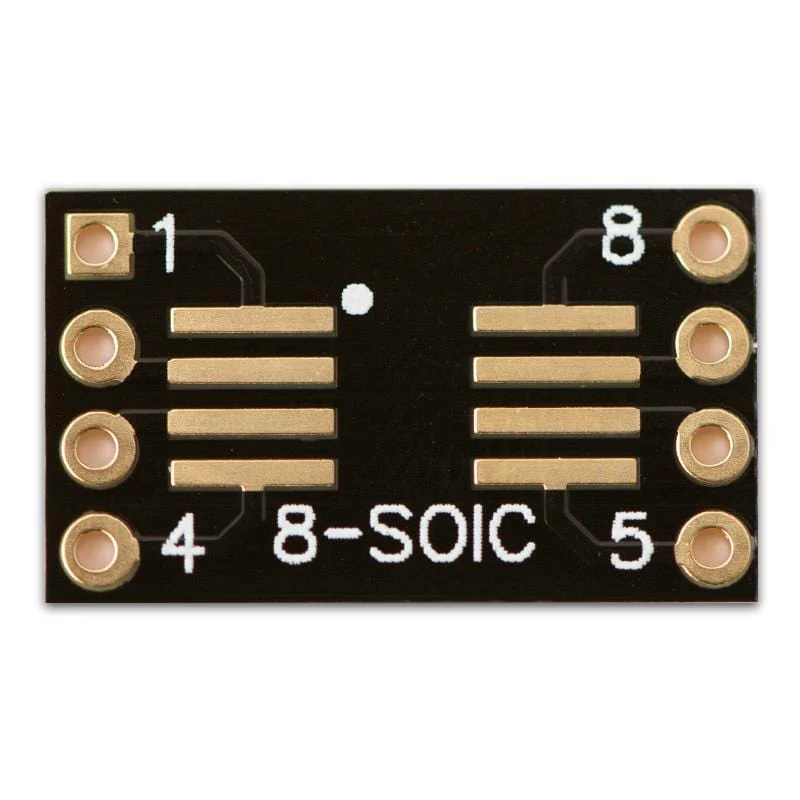

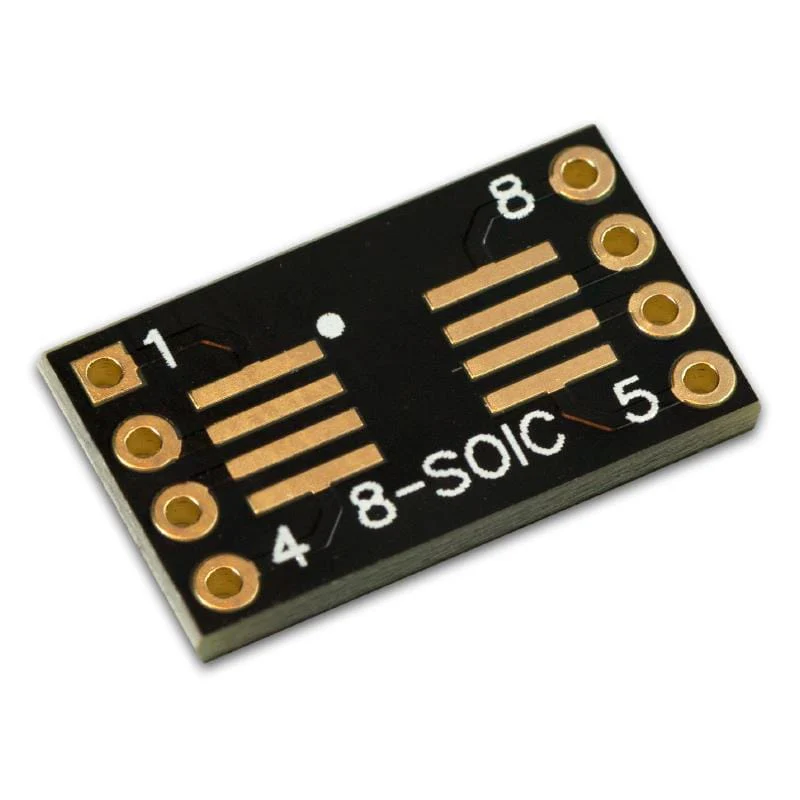

This breakout board is a dual-sided PCB with a SOIC 8 package on one side and a SOT23-6 package on the other. The SOIC and SOT23-6 pins are broken out to 0.1" (2.54mm) headers which can be used on breadboards for prototyping your projects.
The board is compatible with 150mil and 300mil wide SOIC packages.
20-pin SOIC adapter also available

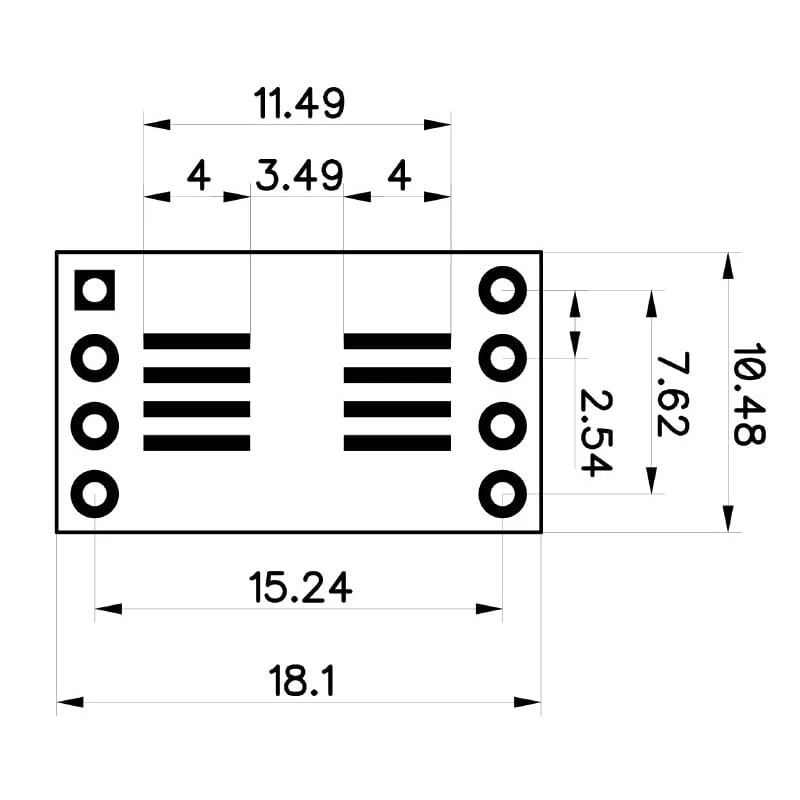

Dimensions
- 18.1mm x 10.48mm
- Spacing between pin rows: 15.24mm
More Images
SOIC/SOT23-6 to DIP Adapter - 8-Pin
This breakout board is a dual-sided PCB with a SOIC 8 package on one side and a SOT23-6 package on the other. The SOIC and SOT23-6 pins are broken out to 0.1" (2.54mm) headers which can be used on breadboards for prototyping your projects.
The board is compatible with 150mil and 300mil wide SOIC packages.
20-pin SOIC adapter also available
Dimensions
- 18.1mm x 10.48mm
- Spacing between pin rows: 15.24mm
