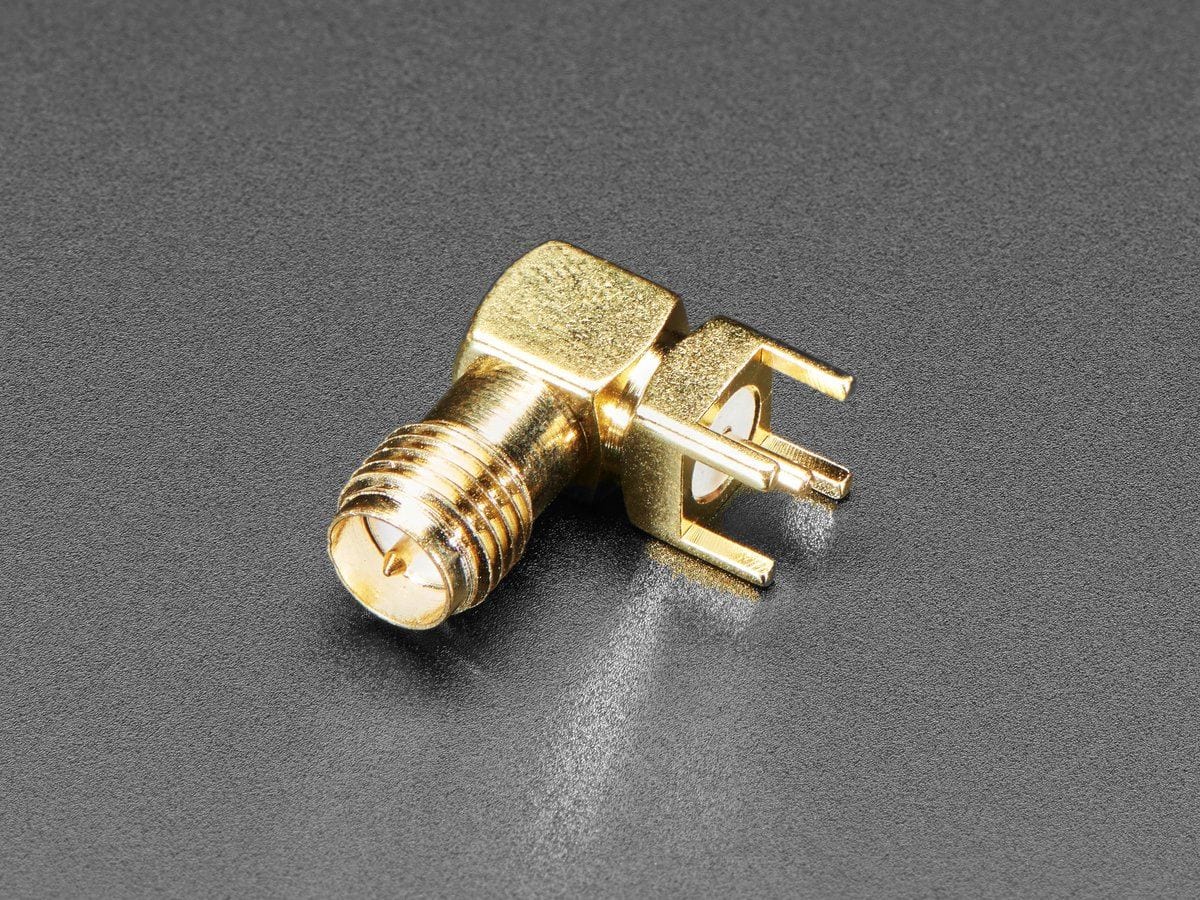

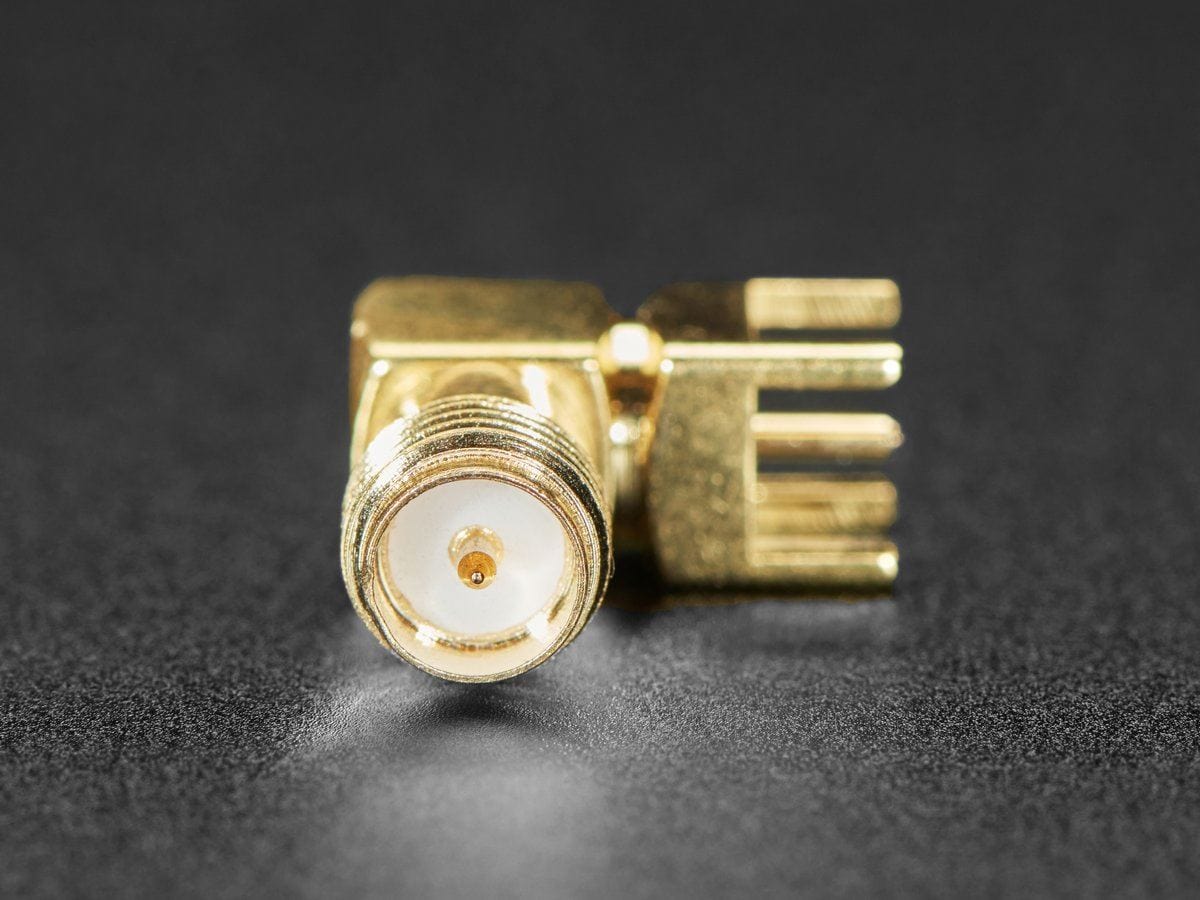

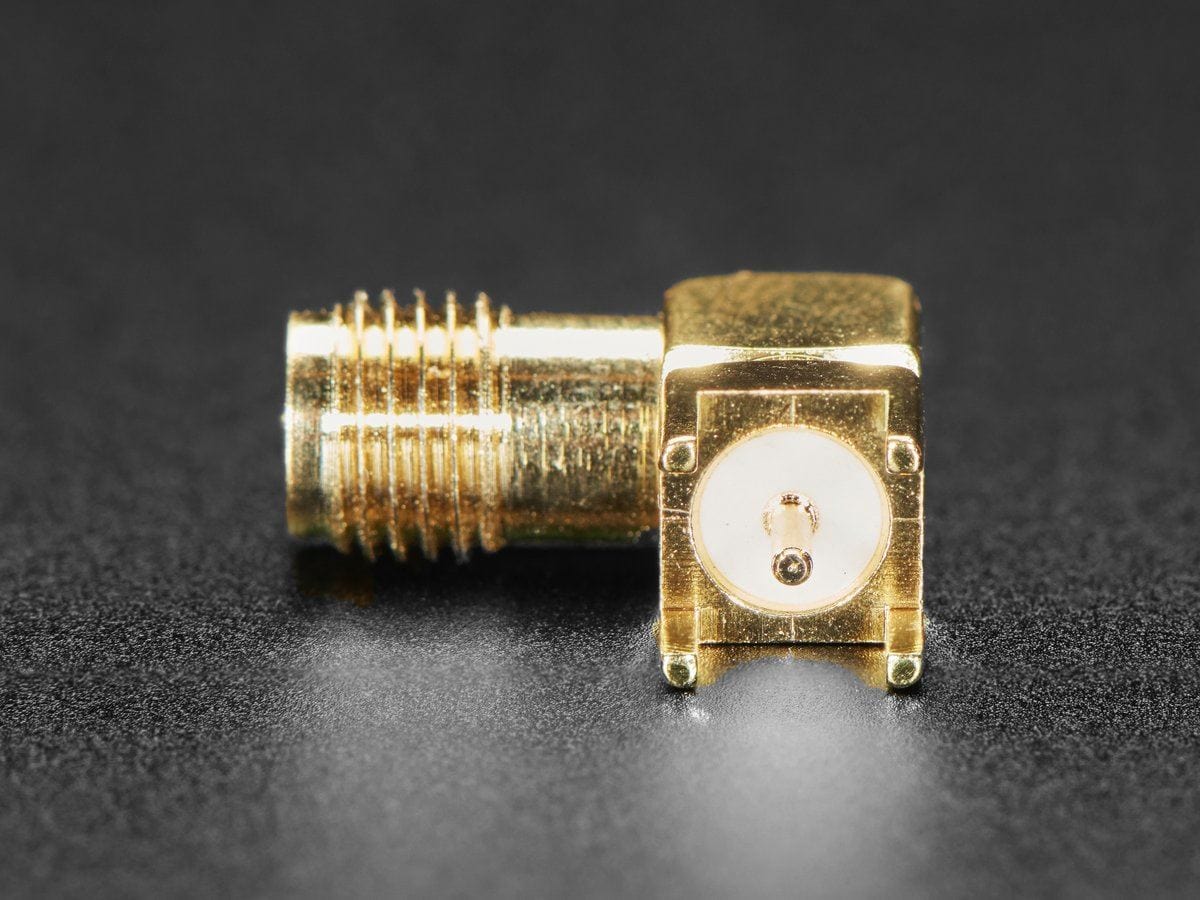

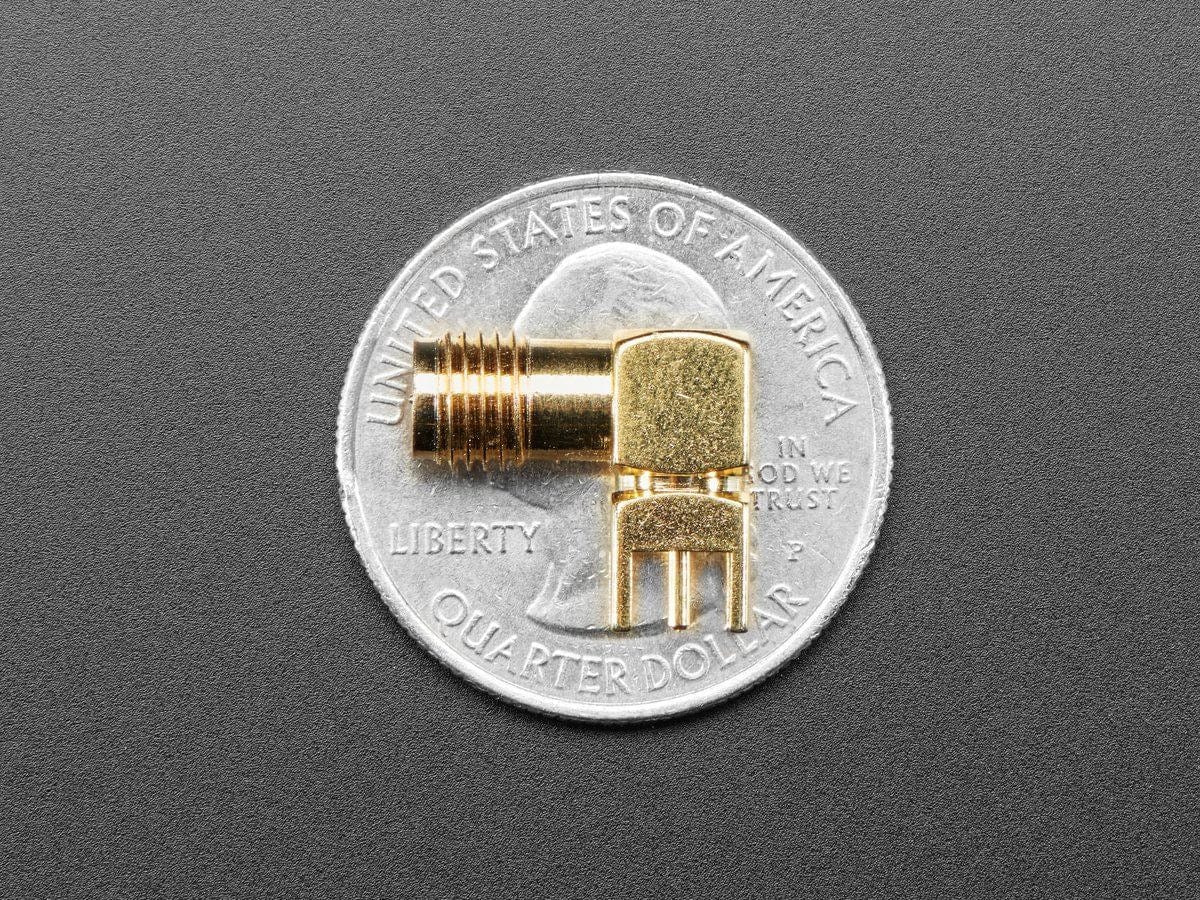

Right Angle RP-SMA Thru Hole RF Connector
This is a great connector for anyone doing RF work, when a right angle RP-SMA connector is required. Solder it into your PCB for a very secure mechanical connection. You've probably seen tons of these on various development boards! The four mechanical connectors also act as the RF ground.
Mates with any RP-SMA plug. Check if you have RP-SMA or SMA by looking at the middle pin of your antenna/cable and verifying it will match with this connector!
You can download a CAD object for this connector here.
Technical Details
- Impedance: 50 ohm
- Diameter of Jack: 6.1mm / .24"
- Total Length of Connector: 14.5mm / 0.57"
