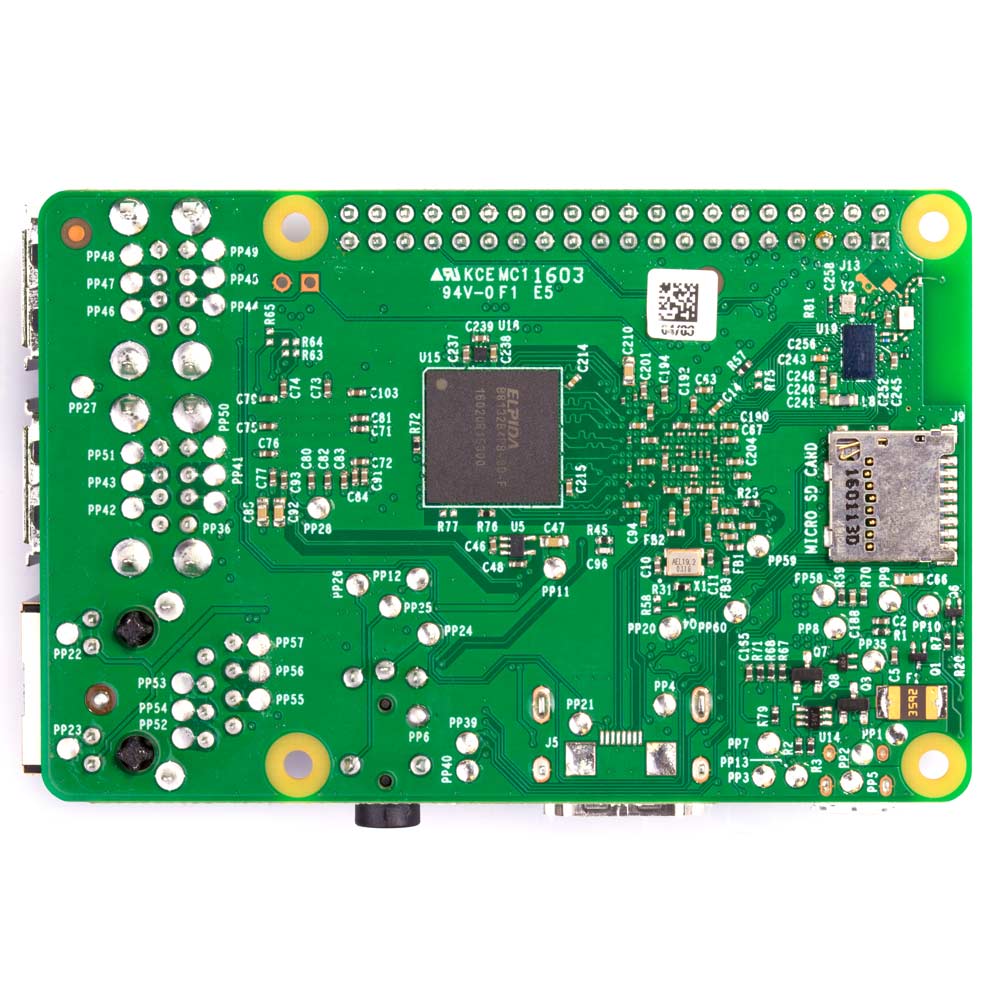

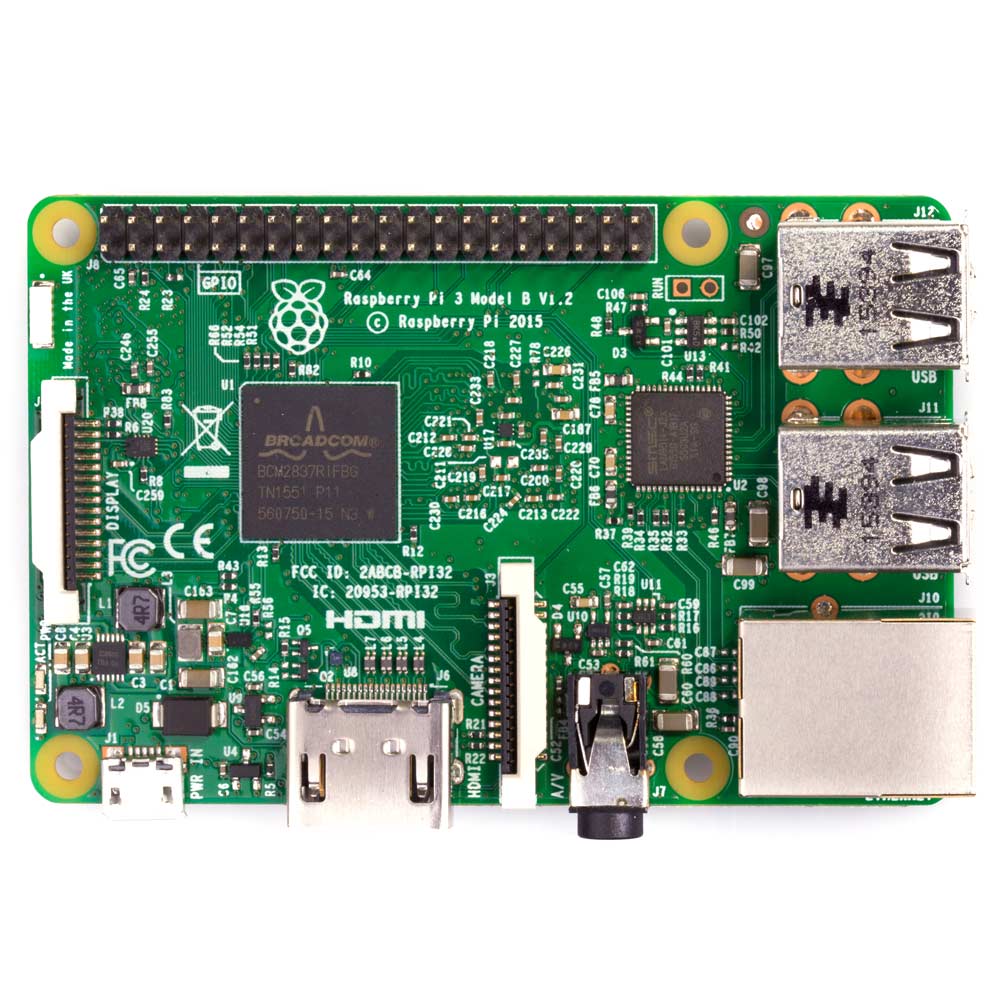

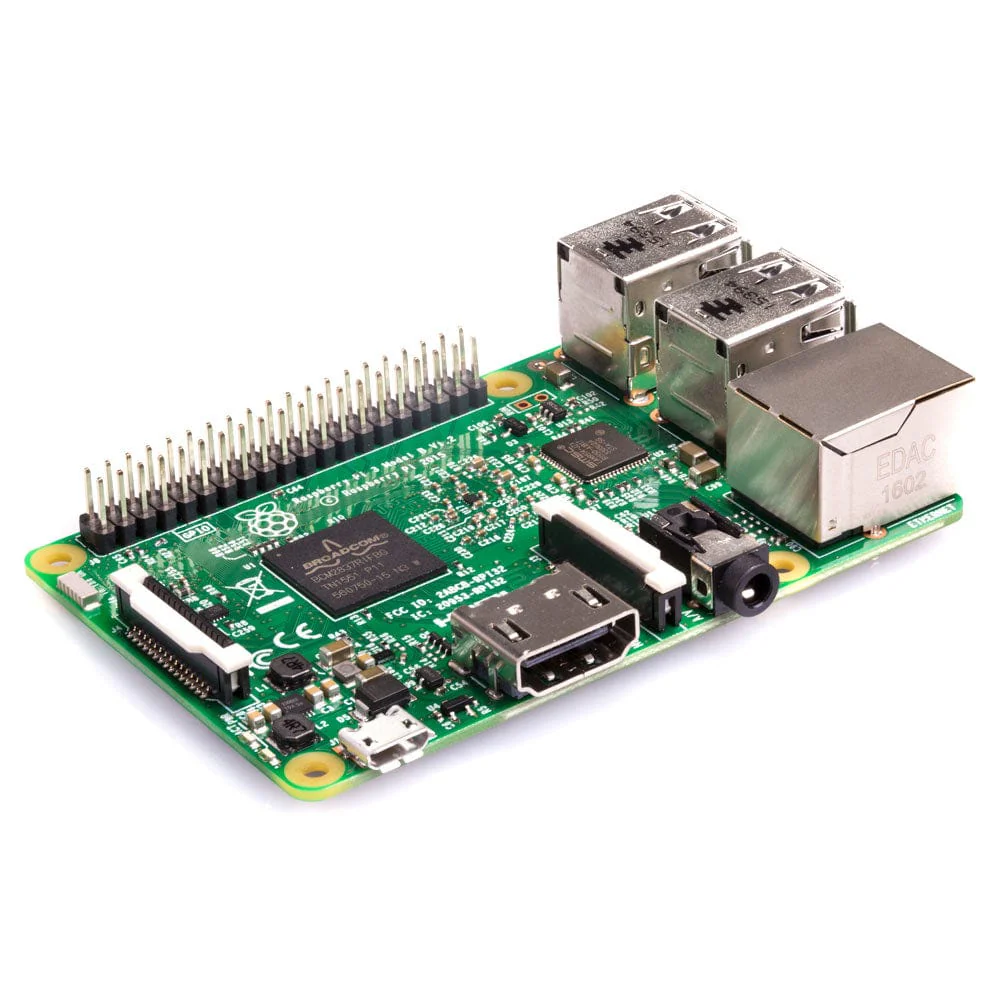

Raspberry Pi 3 Model B

The Raspberry Pi just got juicier! Now with a Quad-Core 64bit CPU, WiFi & Bluetooth!

The Raspberry Pi 3 Model B is the third generation Raspberry Pi. This powerful credit-card-sized single-board computer can be used for many applications and supersedes the original Raspberry Pi Model B+ and Raspberry Pi 2 Model B.

Whilst maintaining the popular board format the Raspberry Pi 3 Model B brings you a more powerful processor, 10x faster than the first generation Raspberry Pi.

Additionally, it adds wireless LAN & Bluetooth connectivity making it the ideal solution for powerful connected designs.

Specifications

• Broadcom BCM2387 chipset
• 1.2GHz Quad-Core ARM Cortex-A53
• 802.11 bgn Wireless LAN and Bluetooth 4.1 (Bluetooth Classic and LE)
• 1GB RAM
• 64 Bit CPU
• 4 x USB ports
• 4 pole Stereo output and Composite video port
• Full size HDMI
• 10/100 BaseT Ethernet socketbr
• CSI camera port for connecting the Raspberry Pi camera
• DSI display port for connecting the Raspberry Pi Touch Display 2

• Micro SD port for loading your operating system and storing data
• Micro USB power source

Features

• Now 10x Faster - Broadcom BCM2387 ARM Cortex-A53 Quad Core Processor powered Single Board Computer running at 1.2GHz!
• 1GB RAM so you can now run bigger and more powerful applications
• Fully HAT compatible
• 40-pin extended GPIO to enhance your “real world” projects.
• Connect a Raspberry Pi camera and touchscreen display (sold separately)
• Stream and watch Hi-definition video output at 1080
• Micro SD slot for storing information and loading your operating systems.
• 10/100 BaseT Ethernet socket to quickly connect the Raspberry Pi to the Internet

Resources

• Getting Started
• Raspberry Pi OS
• Schematics, revision 1.2
• Mechanical drawings, PDF
• Mechanical drawings, DXF
