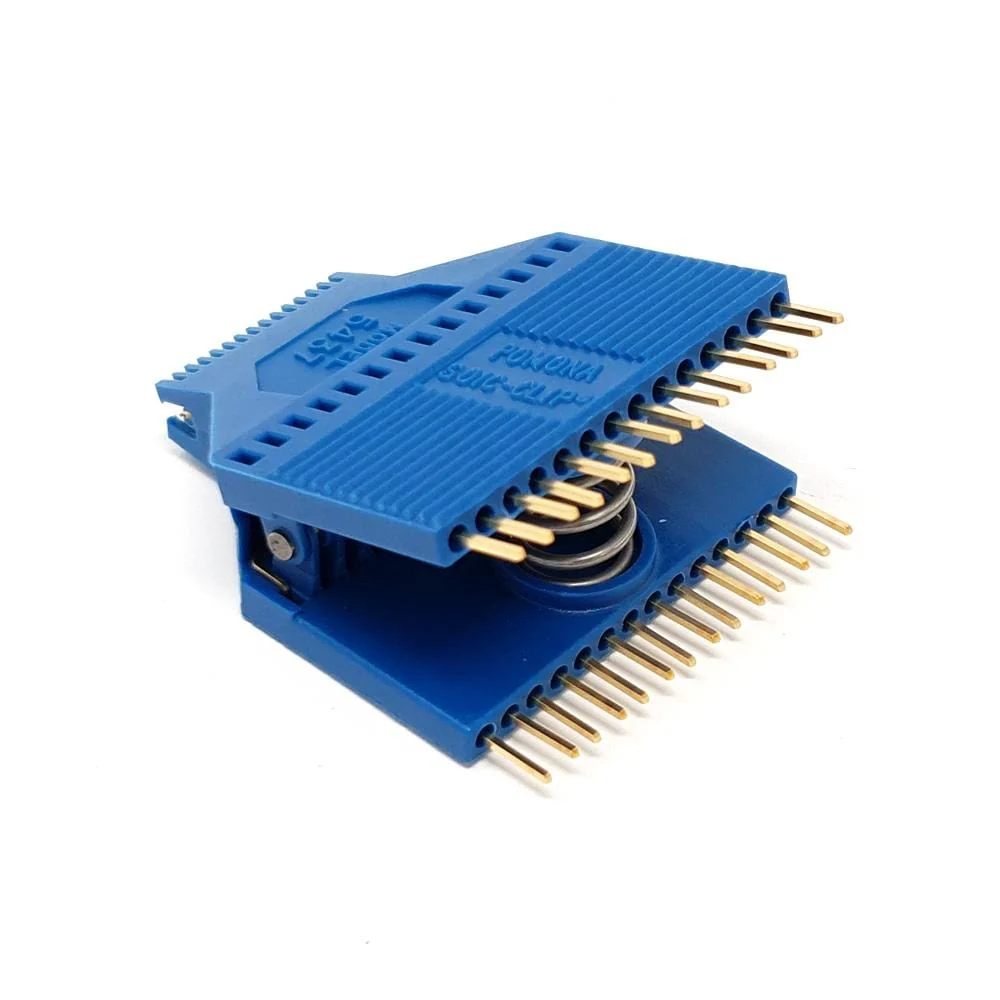

Pomona 5437 28-pin SOIC Clip

Pomona 5437 28-pin SOIC Clip

These new test clips are designed especially for in-circuit testing on Small Outline Integrated Circuits (SOIC & SOJ).

The SOIC Clip test clip assures a positive connection to all chip leads and provides hands-free testing.

This clip is a 28-pin SOIC clip - the Pomona 5437.

Check out our full range of Pomona clips.

Features

  • Upper contacts are .025" sq. pins, spaced at .100"
  • Pins are perfect for sq. pin receptacles, wire-wrap or jumper leads
  • Gold plated lower contacts assure reliable, noise free connections
  • Molded barriers between each contact allow connections to be made on live boards without accidental shorting to adjacent chip leads.
  • Fits surface mounted SOIC and SOJ chips with gull wing or “J” leads and body width from .150" to .350" wide.
$10.50

Original: $30.00

-65%
Pomona 5437 28-pin SOIC Clip—

$30.00

$10.50

More Images

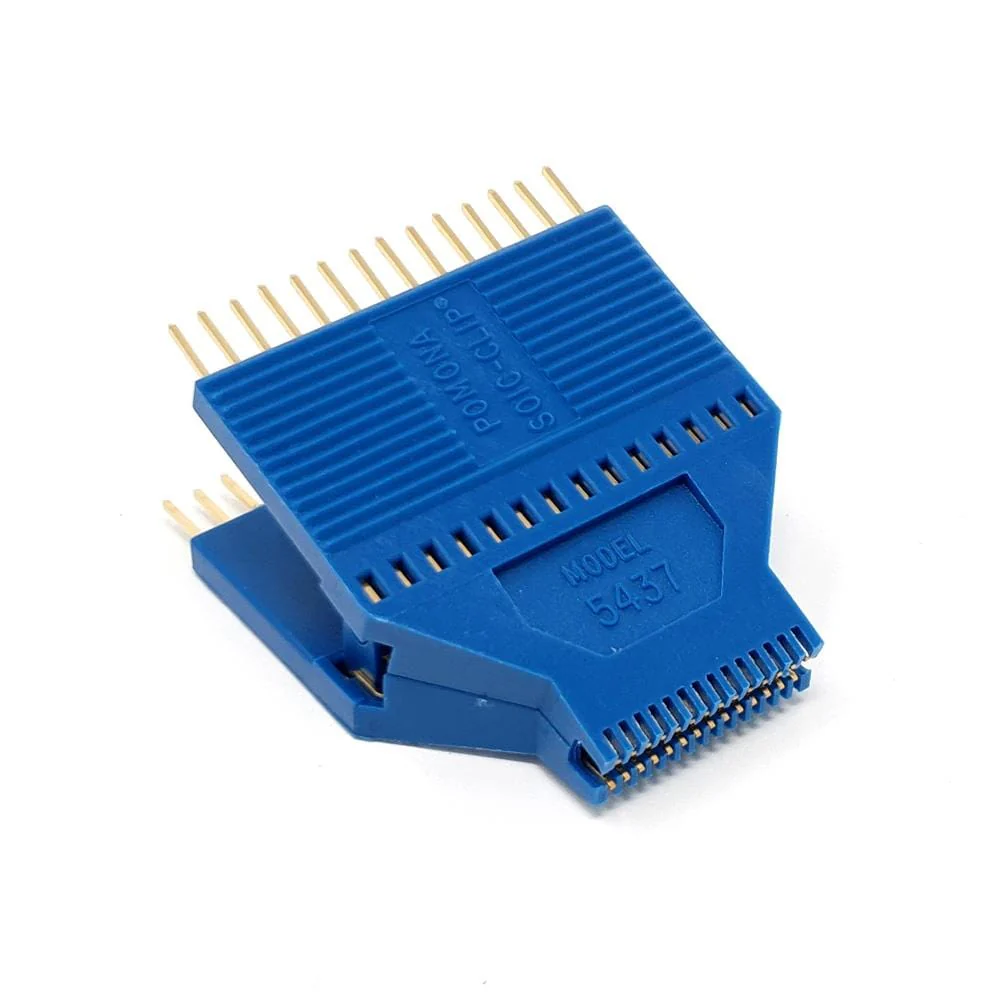

Pomona 5437 28-pin SOIC Clip - Image 2

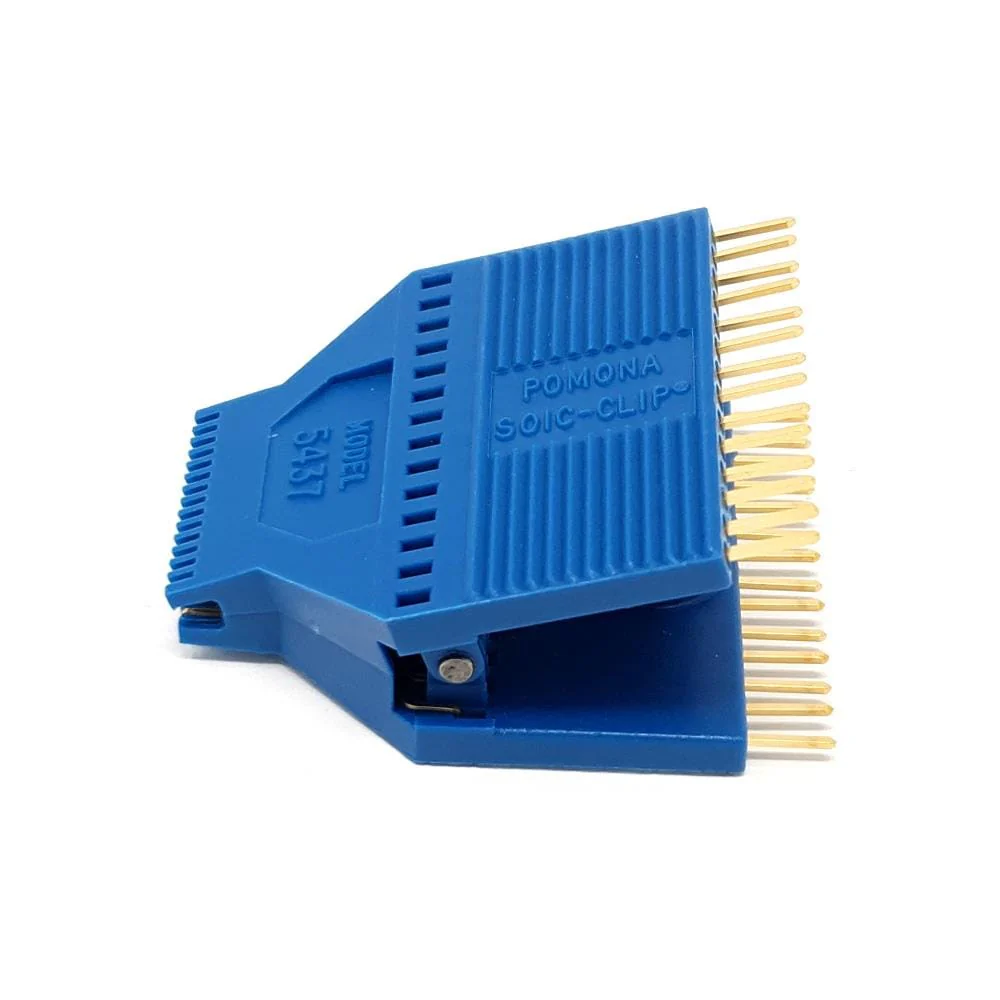

Pomona 5437 28-pin SOIC Clip - Image 3
