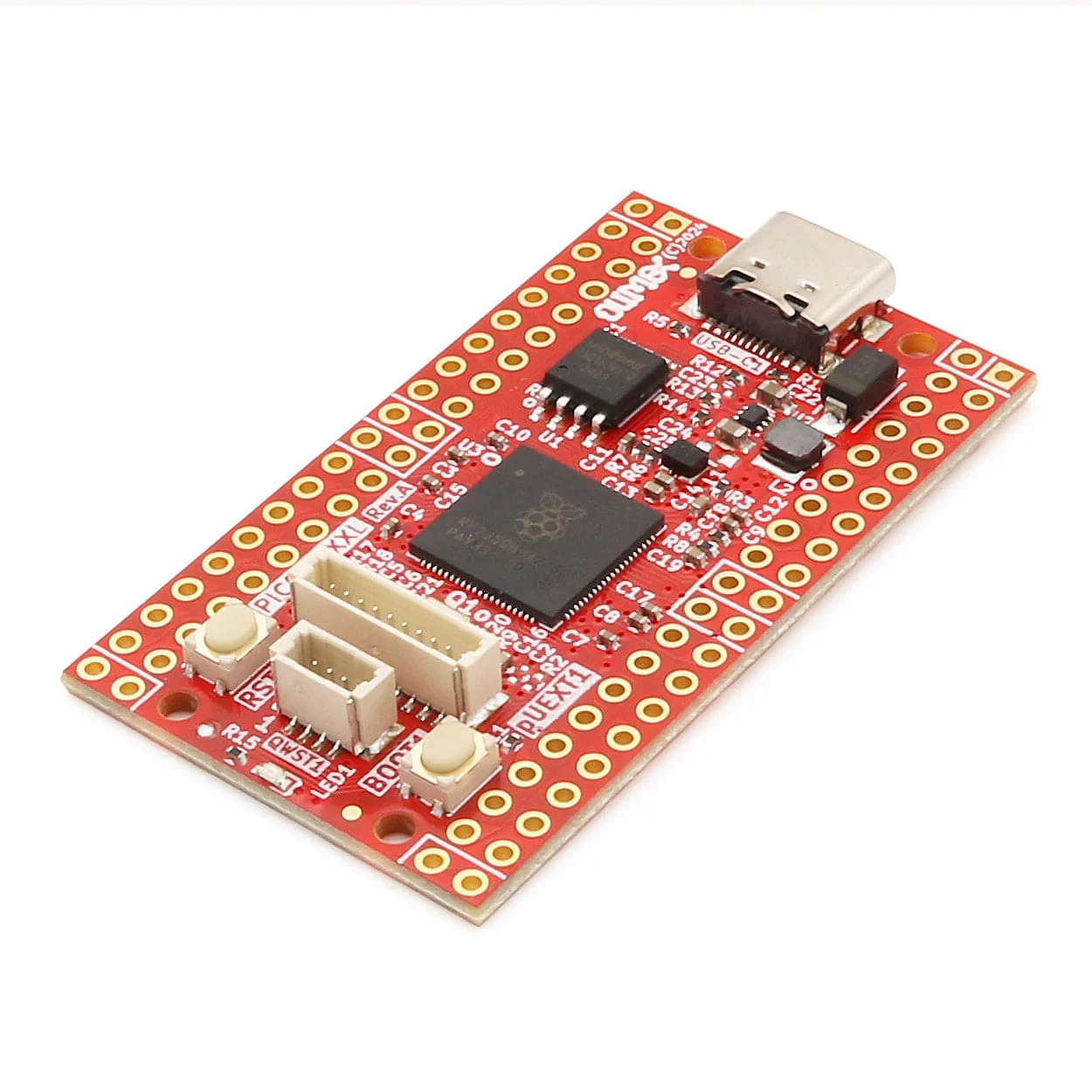

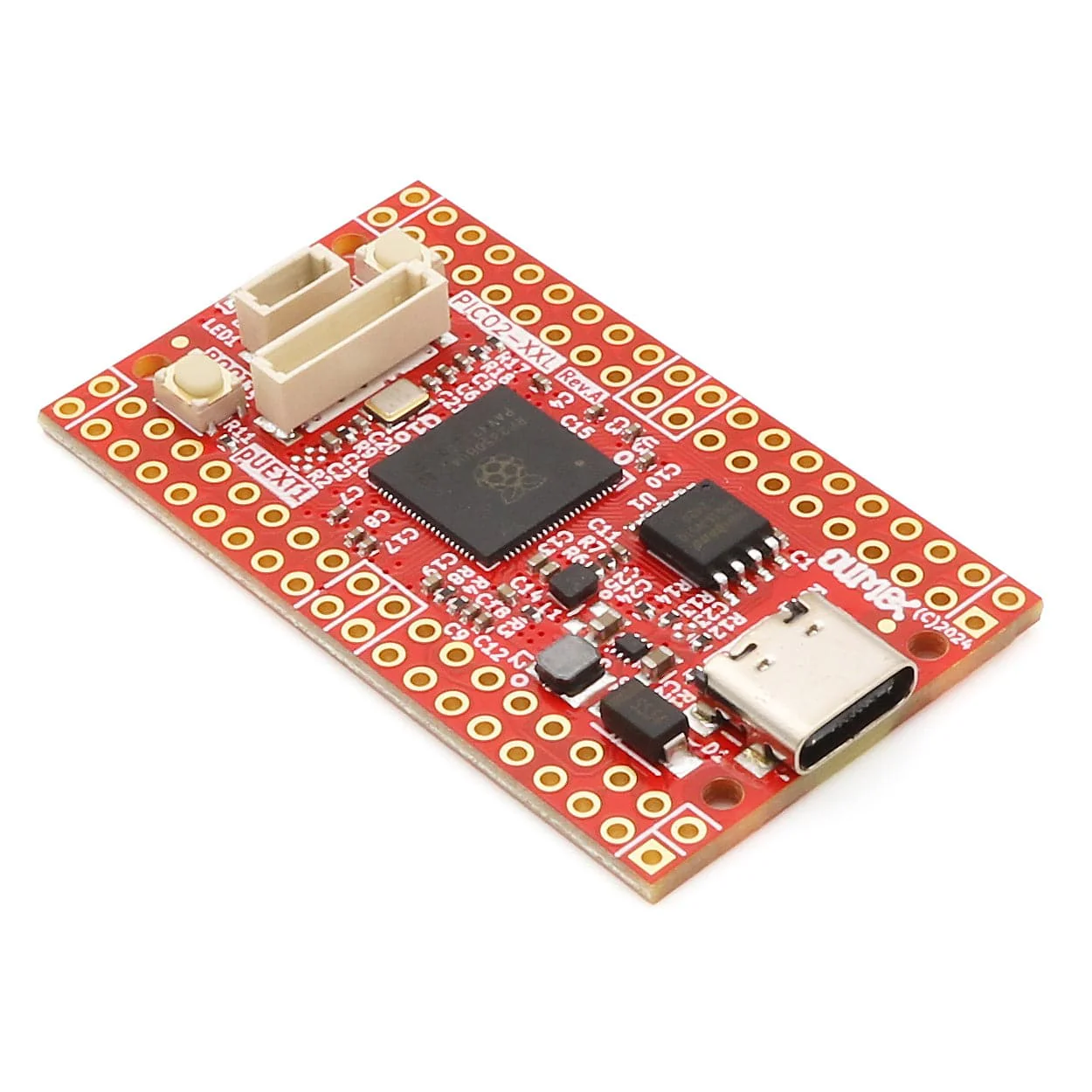

Olimex PICO2-XL - RP2350 Board with 48 GPIO

The Olimex PICO2-XL is an RP2350-based development board exposing all 48 GPIO from the Raspberry Pi RP2350B microcontroller!

The board features USB-C for power and programming, RESET and BOOT buttons, upright Qwiic/Stemma QT port, status LED and a pUEXT connector.

This more-affordable XL version of the Olimex PICO2 board range comes with 2MB external flash (vs the 16MB on the PICO2-XXL). The board features unpopulated pads for adding your own headers or soldering wires directly.

We also stock the meatier Olimex PICO2-XXL, which has 16MB external flash, 8MB QSPI PSRAM and a MicroSD slot.

Note: The PCB will show as 'XXL' as the XXL PCB is used for both variants of this board.

Features

• RP2350B Dual Cortex-M33 or dual RISC-V @ 150MHz
• 520 KB on-chip SRAM
• USB-C connector
• BOOT and RESET buttons
• 2MB QSPI flash

• UEXT connector
• Qwiic/Stemma connector
• Status LED
• All 48 GPIOs exposed
• Dimensions (50x28)mm

Resources

Note: same documentation as the XXL version

Documentation

• PICO2-XL pinout
• PICO2-XL user manual
• PICO2-XL EU declaration of conformity
• PICO2-XL UKCA declaration of conformity

Hardware

• PICO2-XL schematic in PDF format
• PICO2-XL source CAD files on GitHub

Software

• Raspberry Pi C-SDK
• Micropython
• Arduino
• There isn't a CircuitPython version for this board yet, however one of our customers Leon found that the version for the Pimoroni PGA2350 works well (after not having much success with the PICO2 version).

Package Contents

• 1x PICO2-XL Development board
