Neco Unit with LED (WS2812C)
The Neco Unit is an RGB light board unit with a cat ear shape, including 35x WS2812C-2020 RGB lamp beads. It is equipped with two 4-pin grove ports for connecting the M5Stack host and expanding more units. In addition, there is a button to interact with the host and switch between different lighting effects. It is suitable for home decoration, stage performances and many other scenarios!
Note: If it is set to full brightness for a long time, it will cause the lamp bulbs to burn out, it is recommended to set the brightness to around 20.
Features
- WS2812C-2020 RGB lamp bead
- HY2.0-4P
- Compatible with multi-platform development:
- UIFlow
- Arduino
Specifications
| Resources | Parameters |
| RGB lamp bead | WS2812C-2020 |
| Consumes current | 5mA（each RGB lamp bead） |
| Brightness level | 256 levels of brightness display |
| Connection method | Serial cascade interface |
| Operating temperature | 0-85°C |
| Number of colors | 16777216 colors |
| Product Size | 41 x 46 x 1mm |
| Package Size | 95 x 65 x 25mm |
| Product Weight | 9.2g |
| Package Weight | 34.7g |
Resources
Package Contents
- 2x Neco Unit
- 2x Grove cable (20cm\100cm）
- 2x Plastic-coated iron wire
More Images

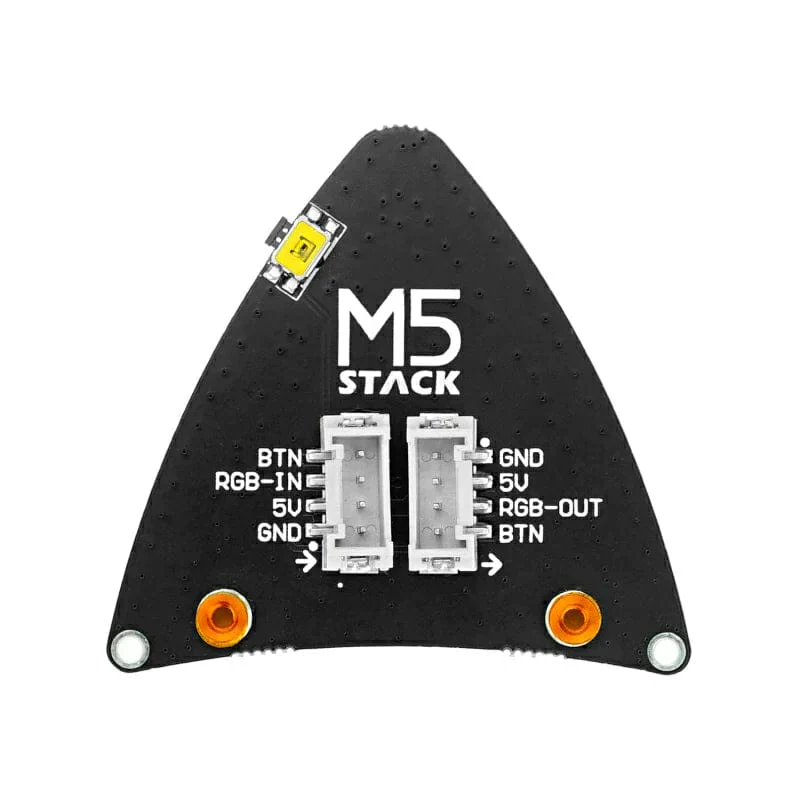

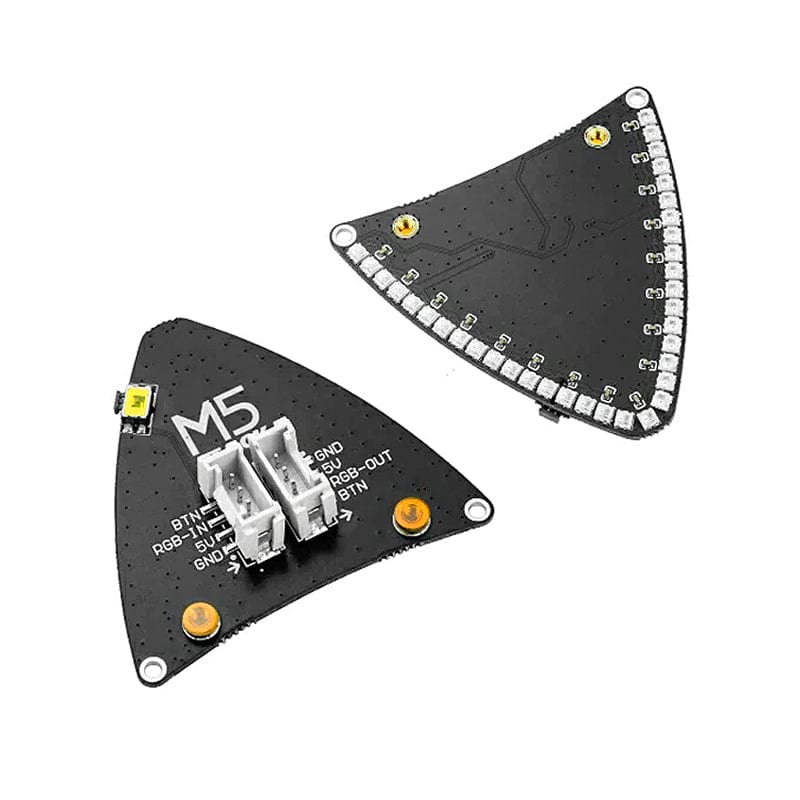

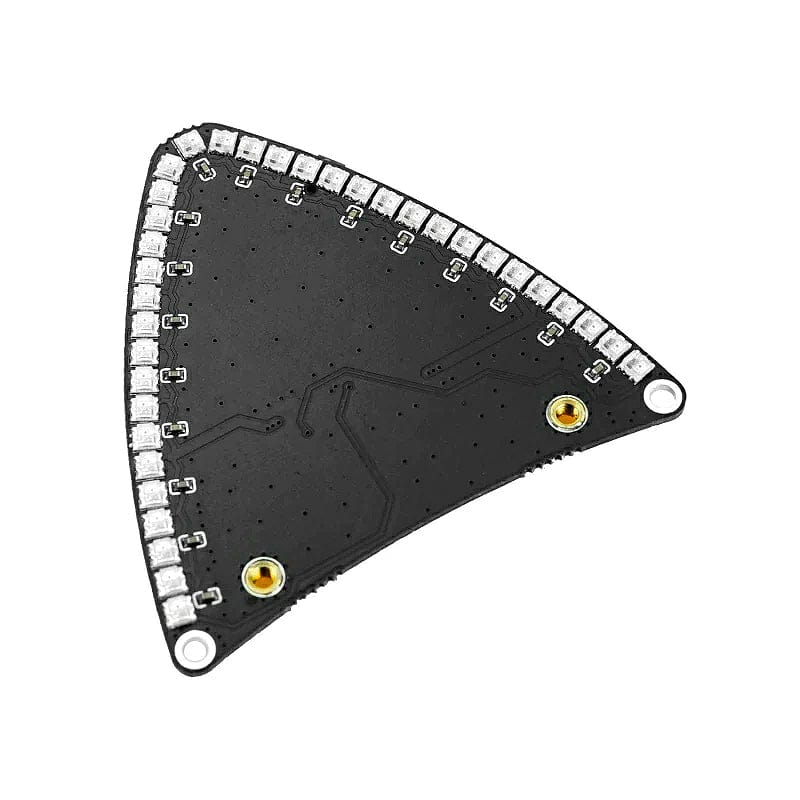

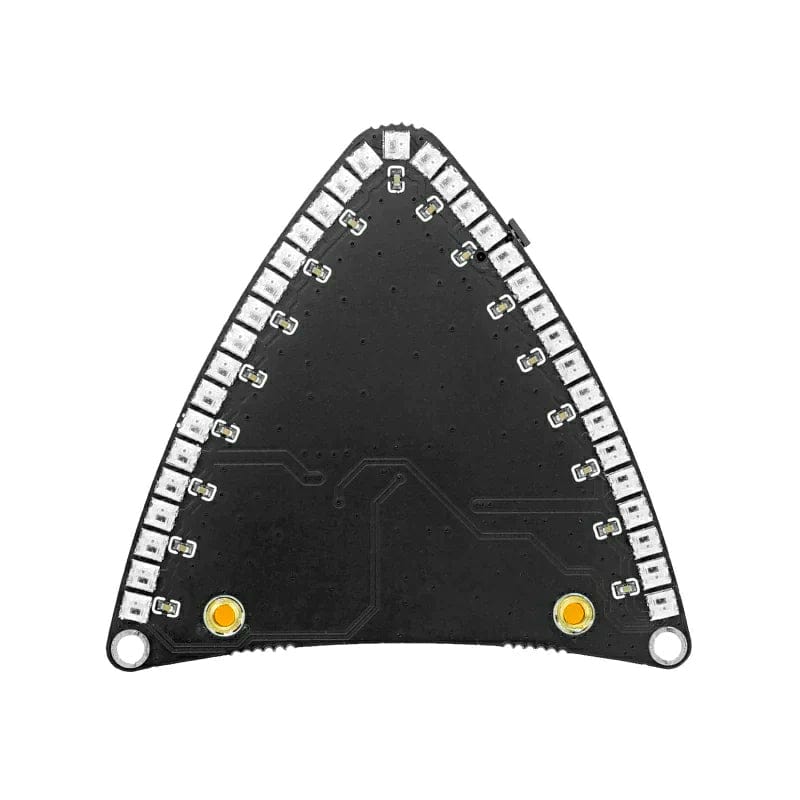

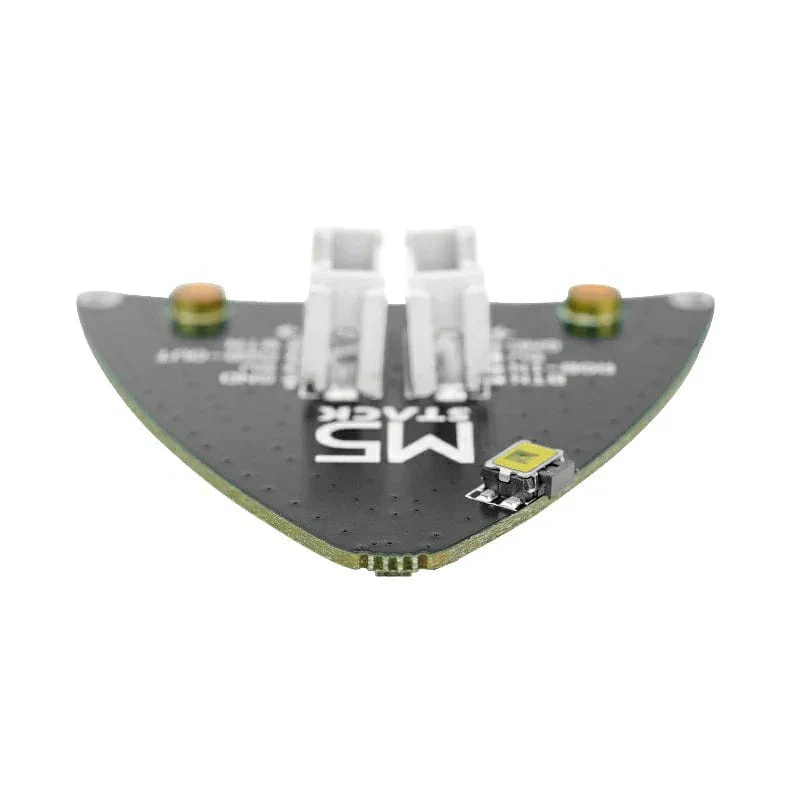

Neco Unit with LED (WS2812C)
The Neco Unit is an RGB light board unit with a cat ear shape, including 35x WS2812C-2020 RGB lamp beads. It is equipped with two 4-pin grove ports for connecting the M5Stack host and expanding more units. In addition, there is a button to interact with the host and switch between different lighting effects. It is suitable for home decoration, stage performances and many other scenarios!
Note: If it is set to full brightness for a long time, it will cause the lamp bulbs to burn out, it is recommended to set the brightness to around 20.
Features
- WS2812C-2020 RGB lamp bead
- HY2.0-4P
- Compatible with multi-platform development:
- UIFlow
- Arduino
Specifications
| Resources | Parameters |
| RGB lamp bead | WS2812C-2020 |
| Consumes current | 5mA（each RGB lamp bead） |
| Brightness level | 256 levels of brightness display |
| Connection method | Serial cascade interface |
| Operating temperature | 0-85°C |
| Number of colors | 16777216 colors |
| Product Size | 41 x 46 x 1mm |
| Package Size | 95 x 65 x 25mm |
| Product Weight | 9.2g |
| Package Weight | 34.7g |
Resources
Package Contents
- 2x Neco Unit
- 2x Grove cable (20cm\100cm）
- 2x Plastic-coated iron wire
