Miniature 0.8" 8x8 Pure Green LED Matrix (KWM-20882CPGB) [Discontinued]

Miniature 0.8" 8x8 Pure Green LED Matrix (KWM-20882CPGB) [Discontinued]

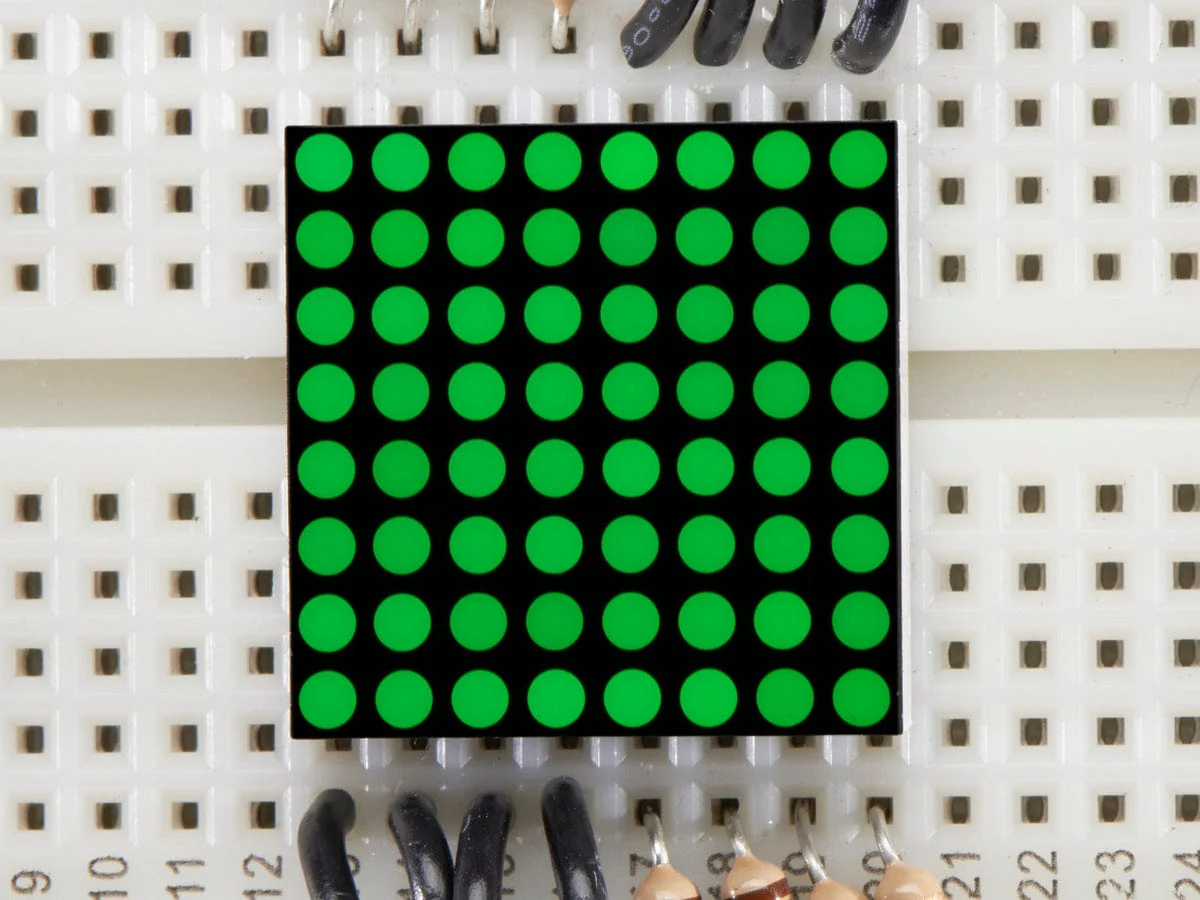

You will squeak with delight when you hold this adorable miniature LED matrix. 0.8" square, its got everything a big LED matrix has, but bite sized! 64 pure green LEDs are contained inside the plastic body, in an 8x8 matrix. There are 16 pins on the side, 8 on each, with 0.1" spacing so you can easily plug it into a breadboard with plenty of space to wire it up

These LEDs have a deeper green coloring, its a beautiful shade but the process is different than 0:57)

Technical Details

  • Dimensions: 20mm / 0.8" x 20mm / 0.8" x 6mm / 0.23"
  • Pin Length: 13.35mm / 0.5"
  • Weight: 3g

This is a Common Cathode LED Matrix


Datasheet - We currently have LuckyLight as the supplier for this matrix. Previously we carried BetLux.

The Arduino playground has a nice set of tutorials introducing the MAX7219 and 8x8 LED matrices

Using a high power shift register to drive 8x8 matrices with a NETduino

$4.80
Miniature 0.8" 8x8 Pure Green LED Matrix (KWM-20882CPGB) [Discontinued]—
$4.80

More Images

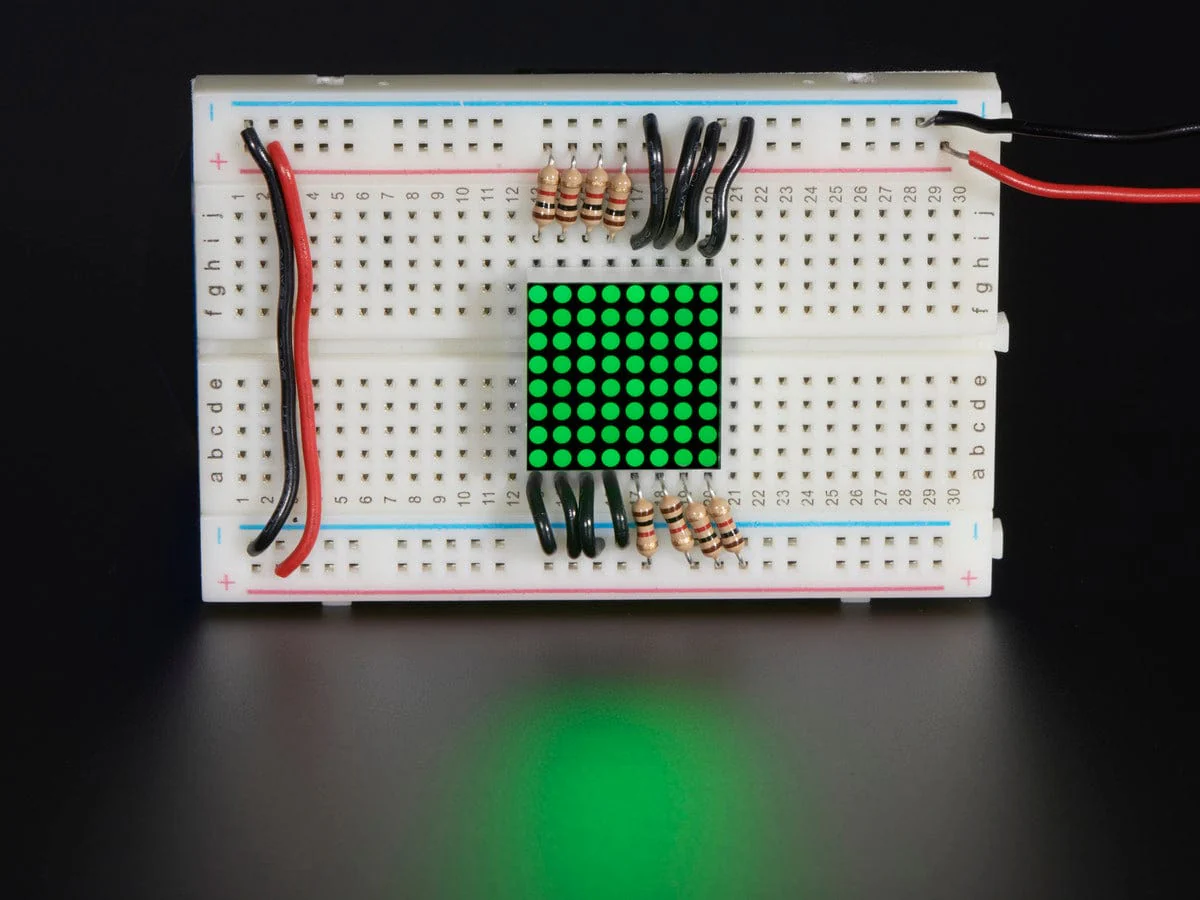

Miniature 0.8" 8x8 Pure Green LED Matrix (KWM-20882CPGB) [Discontinued] - Image 2

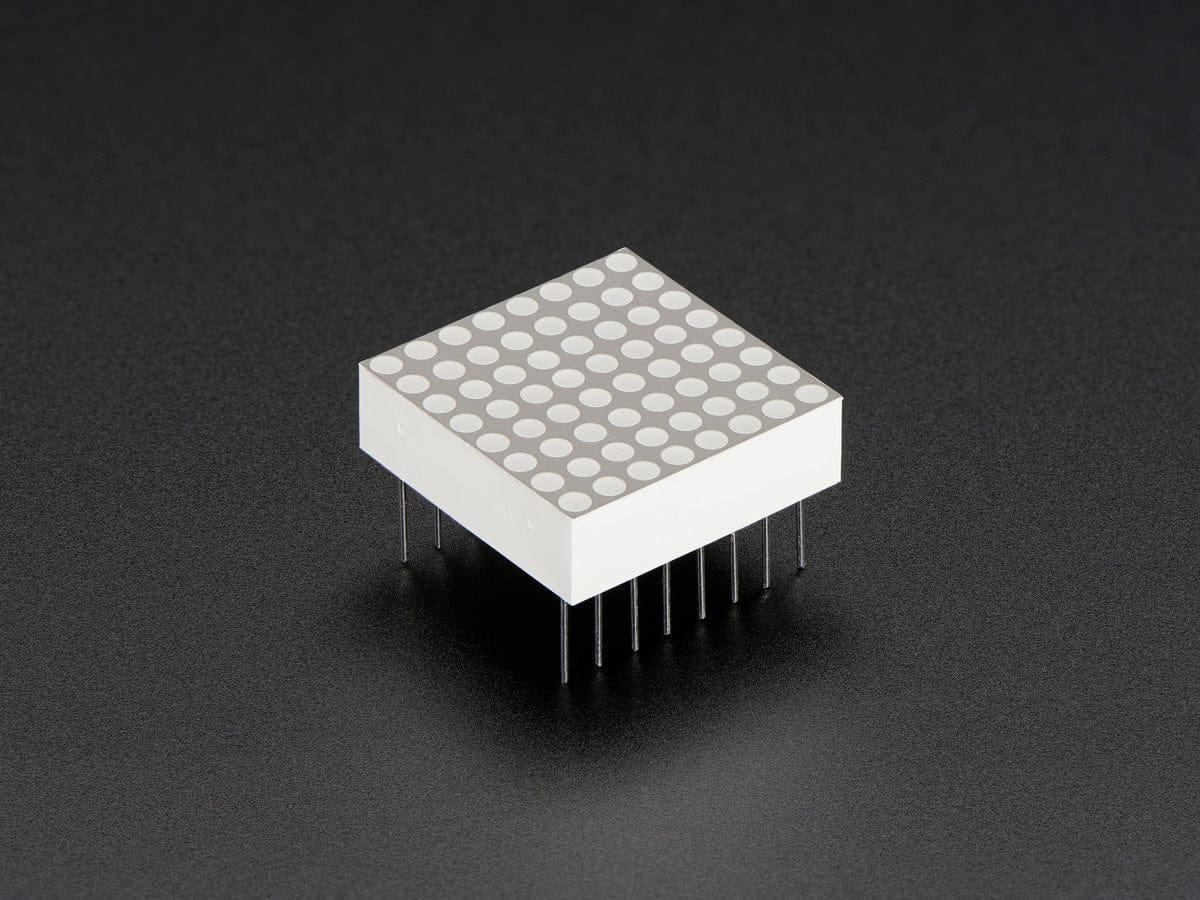

Miniature 0.8" 8x8 Pure Green LED Matrix (KWM-20882CPGB) [Discontinued] - Image 3

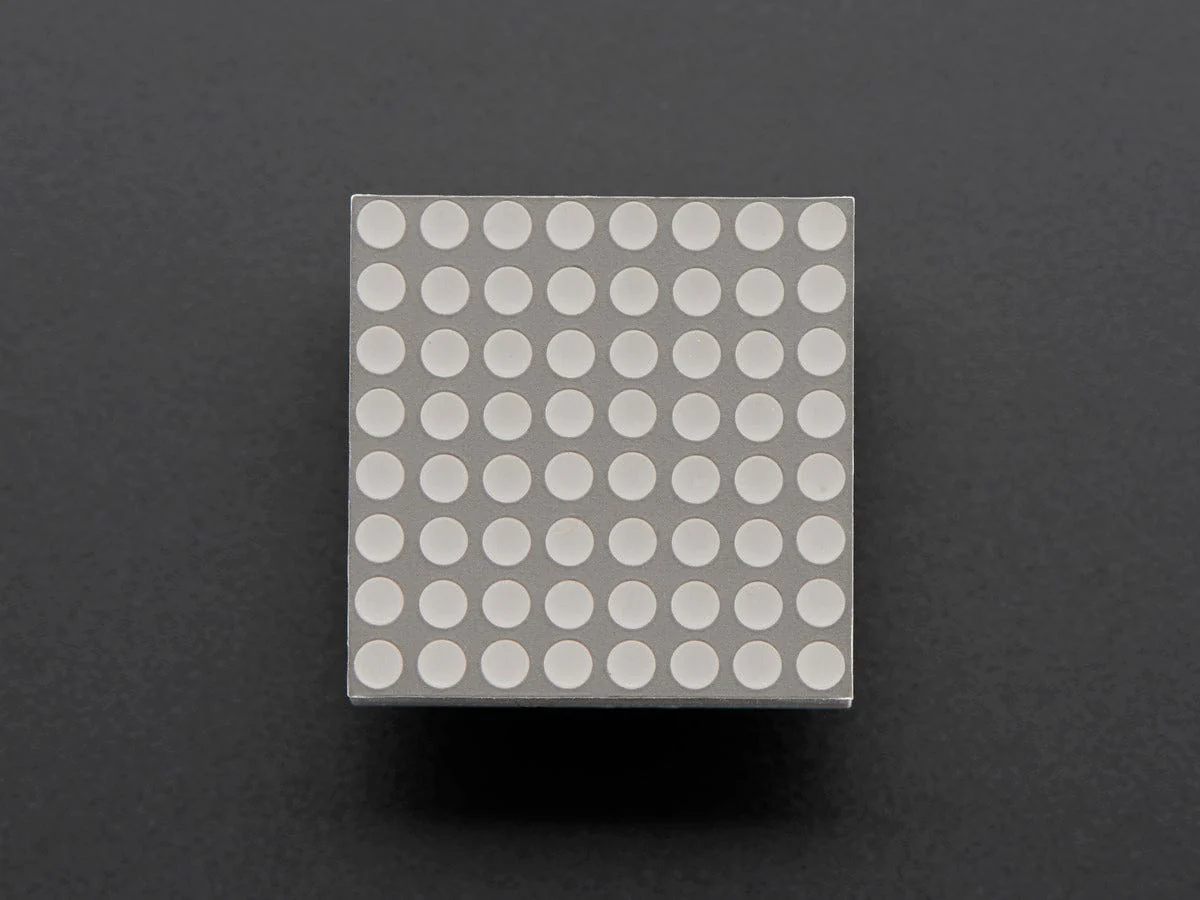

Miniature 0.8" 8x8 Pure Green LED Matrix (KWM-20882CPGB) [Discontinued] - Image 4

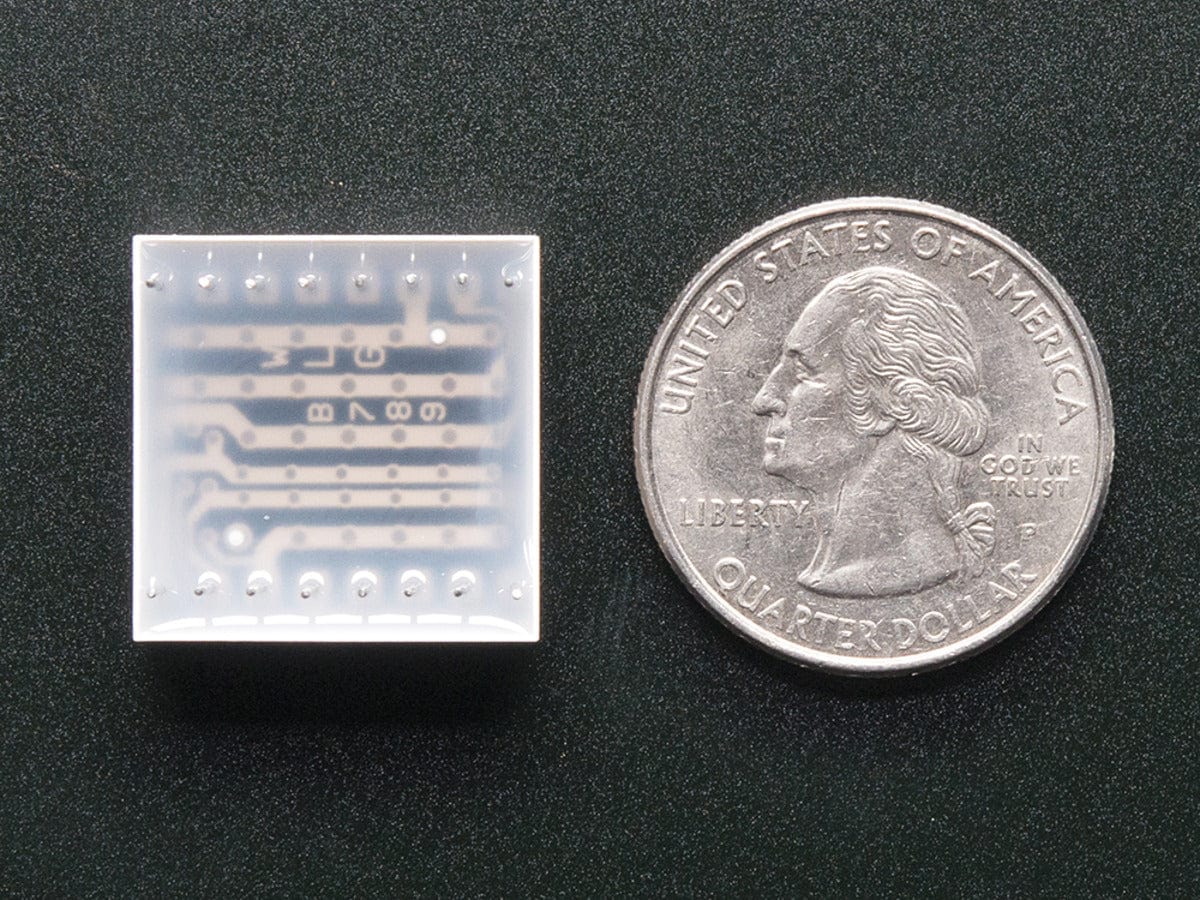

Miniature 0.8" 8x8 Pure Green LED Matrix (KWM-20882CPGB) [Discontinued] - Image 5
