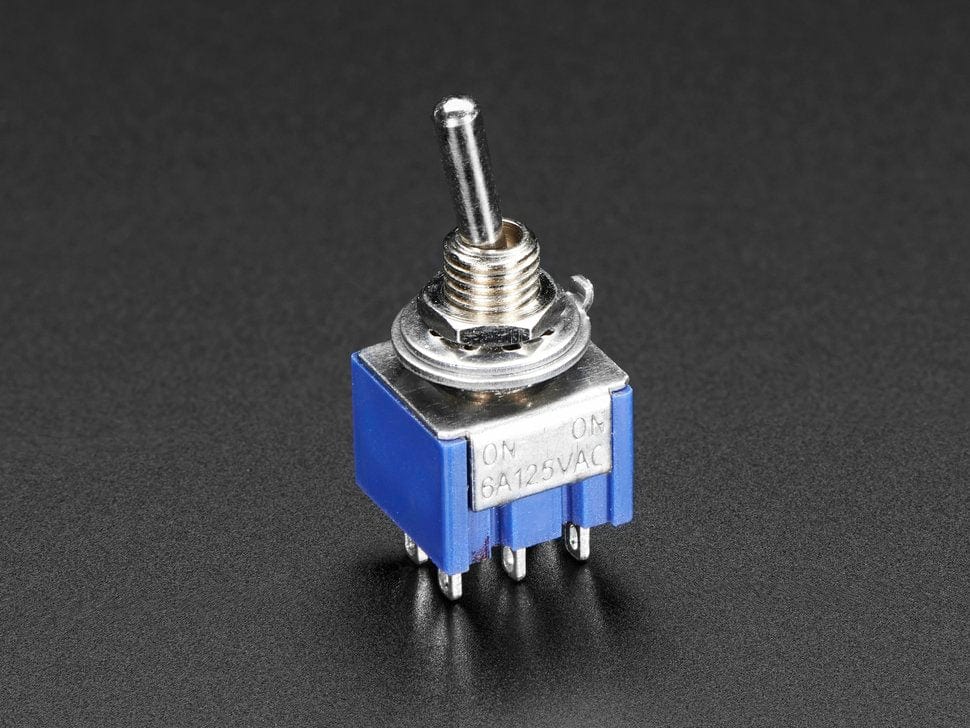

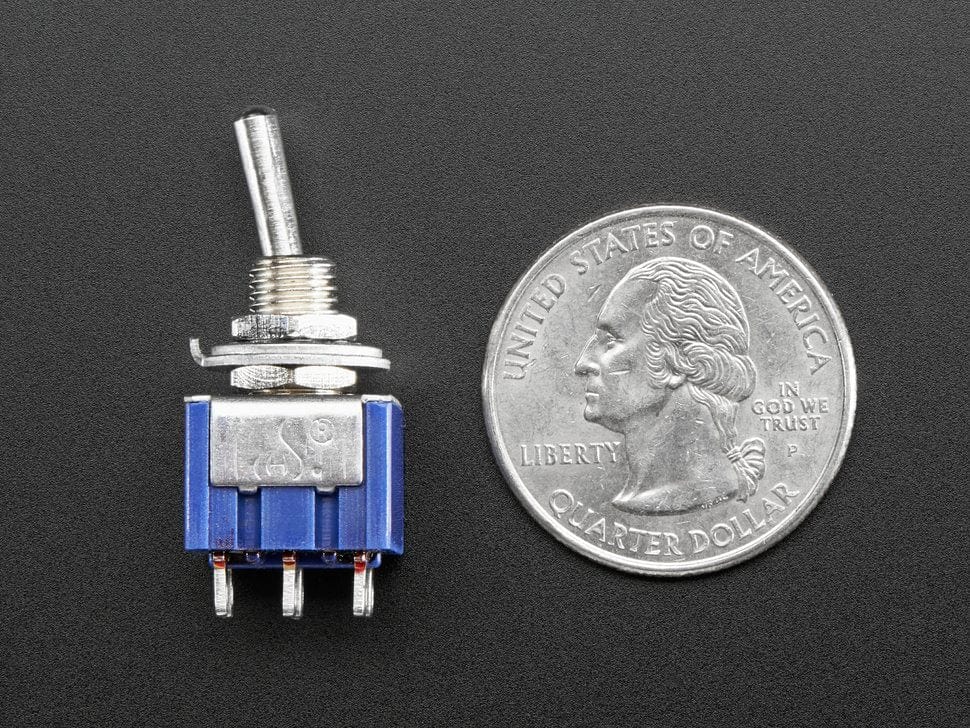

DPDT ON-ON Latching Miniature Toggle Switch

This is a Latching DPDT ON-ON miniature toggle switch with 6 pins, rated to AC 6A/125V.

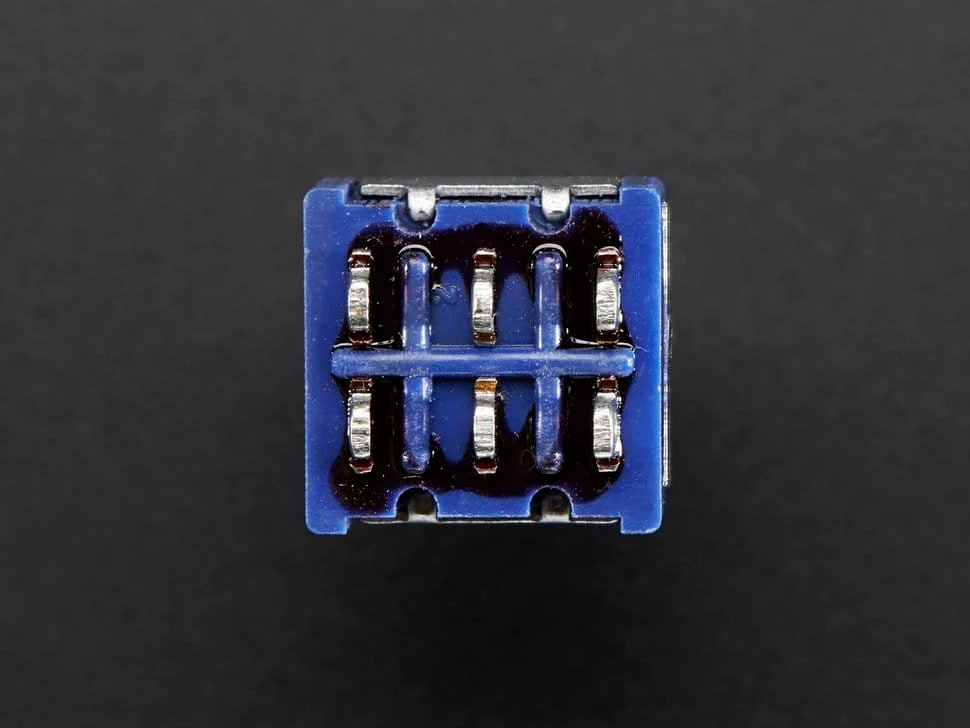

The switch has 6 pins allowing double pole, double throw use. The thread shaft requires a 6mm hole and has enough length to mount it to a panel/enclosure around 4mm thick (when using the included nuts/washers).

The switch comes with washers and nuts to mount to your panel/enclosure.

Do not use these switches with mains voltages!

Features

• Miniature toggle switch
• DPDT (double pole, double throw)
• Latching action
• ON-ON switch
• Rated to 6A/125V AC
• 6 contacts/pins
• Body colour: Blue
• Washers and nut included
• Model number: MTS-202
• Thread hole size: 6mm
• Maximum mounting panel thickness: 4mm

Resources

• Datasheet coming soon
