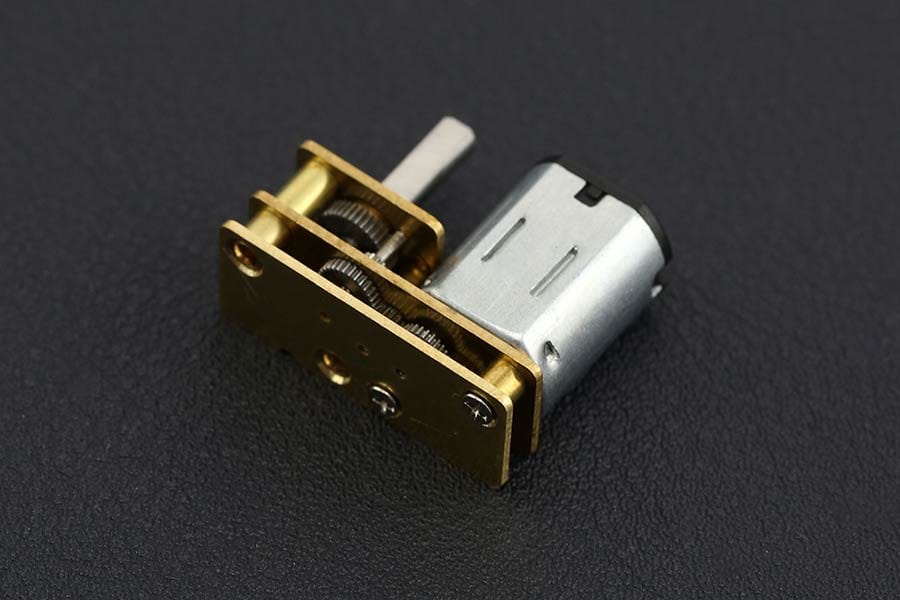

Micro DC Geared Motor with Exclusive Upside Down Structure
HomeStore

Micro DC Geared Motor with Exclusive Upside Down Structure

Micro DC Geared Motor with Exclusive Upside Down Structure

This DC gearmotor has an exclusive upside down structure, 6V rated voltage, the no-load speed could arrive 150RPM. It is durable and easy to be drived by our Romeo BLE microcontroller.

Specification

  • Reduction Ratio: 100:1
  • Rated voltage: 6.0 V
  • No-load speed: 150 RPM
  • No-load Current: 30 mA
  • Rated load speed: 120 RPM
  • Rated Torque: 0.35 kg.cm
  • Rated Current: 5 mA
  • Stall Torque: 2.4 kg.cm
  • Stall Current: 250 mA
  • Weight: 12 g

Shipping List

  • Micro DC Geared Motor with Exclusive Upside Down Structure (6V 150RPM 2.4Kg.cm) x1
$11.10
Micro DC Geared Motor with Exclusive Upside Down Structure—
$11.10

More Images

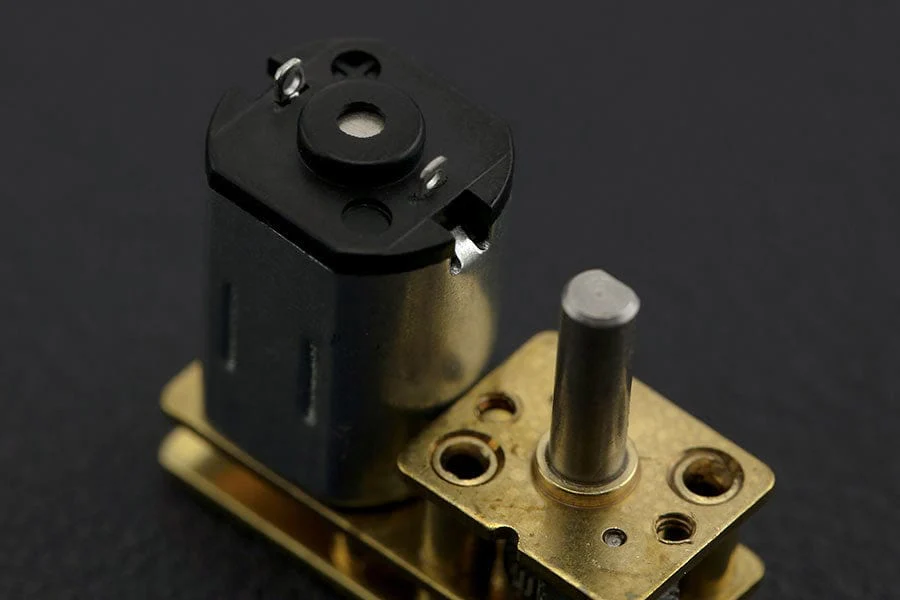

Micro DC Geared Motor with Exclusive Upside Down Structure - Image 2
Micro DC Geared Motor with Exclusive Upside Down Structure - Image 3

Micro DC Geared Motor with Exclusive Upside Down Structure

This DC gearmotor has an exclusive upside down structure, 6V rated voltage, the no-load speed could arrive 150RPM. It is durable and easy to be drived by our Romeo BLE microcontroller.

Specification

  • Reduction Ratio: 100:1
  • Rated voltage: 6.0 V
  • No-load speed: 150 RPM
  • No-load Current: 30 mA
  • Rated load speed: 120 RPM
  • Rated Torque: 0.35 kg.cm
  • Rated Current: 5 mA
  • Stall Torque: 2.4 kg.cm
  • Stall Current: 250 mA
  • Weight: 12 g

Shipping List

  • Micro DC Geared Motor with Exclusive Upside Down Structure (6V 150RPM 2.4Kg.cm) x1

Product Information

Shipping & Returns

Description

This DC gearmotor has an exclusive upside down structure, 6V rated voltage, the no-load speed could arrive 150RPM. It is durable and easy to be drived by our Romeo BLE microcontroller.

Specification

  • Reduction Ratio: 100:1
  • Rated voltage: 6.0 V
  • No-load speed: 150 RPM
  • No-load Current: 30 mA
  • Rated load speed: 120 RPM
  • Rated Torque: 0.35 kg.cm
  • Rated Current: 5 mA
  • Stall Torque: 2.4 kg.cm
  • Stall Current: 250 mA
  • Weight: 12 g

Shipping List

  • Micro DC Geared Motor with Exclusive Upside Down Structure (6V 150RPM 2.4Kg.cm) x1
