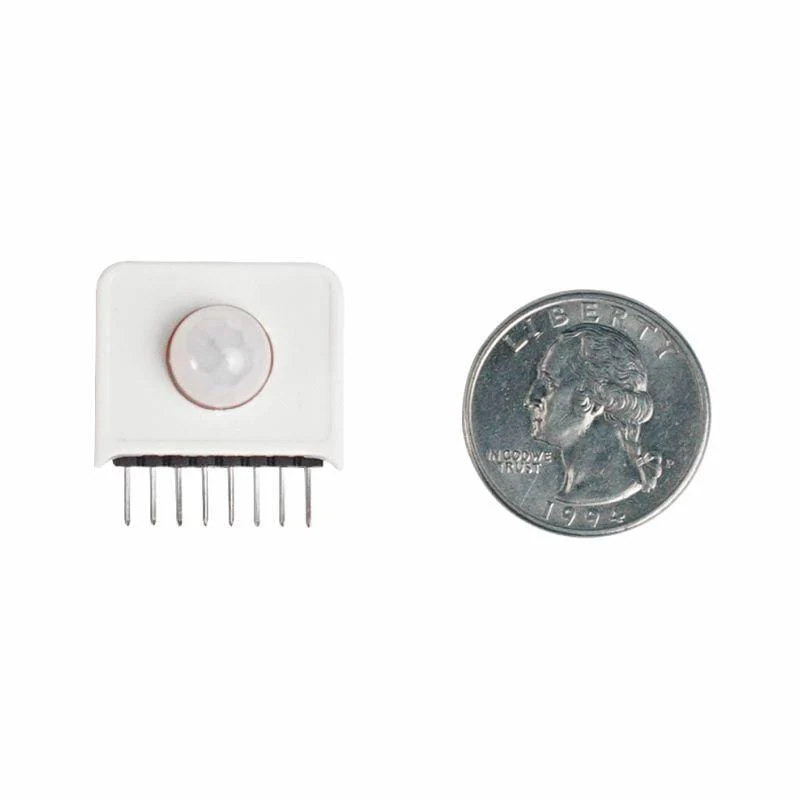

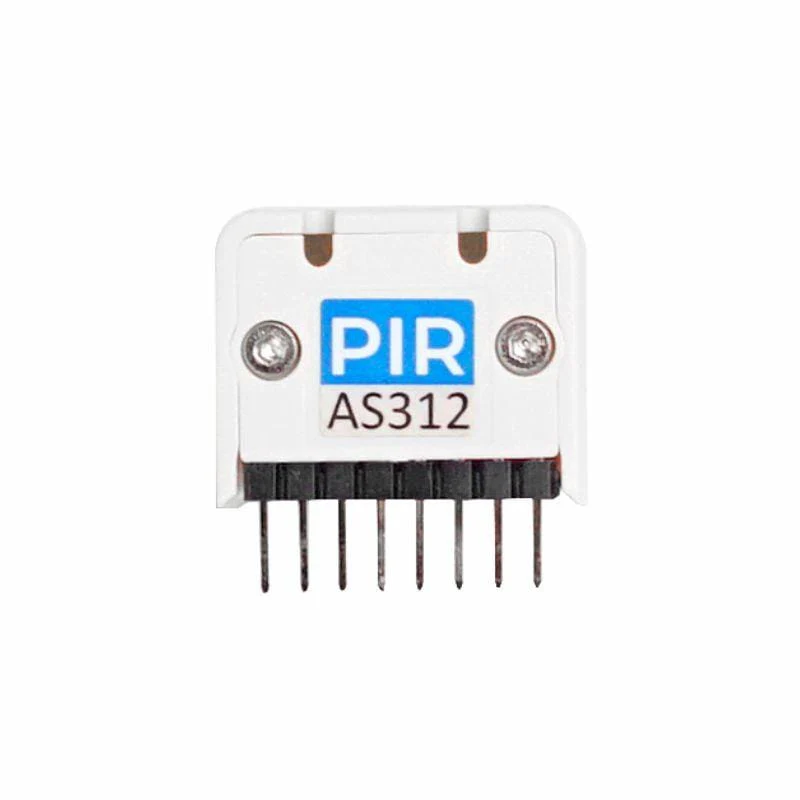

M5Stack M5StickC PIR Hat (AS312)
The PIR HAT is an M5StickC compatible human body induction sensor. It belongs to a passive pyroelectric infrared detector, that detects the infrared from the human body. When the infrared is detected, the sensor will output HIGH and last for two seconds until the next detecting round.
Features
- Detecting Range: 500cm
- Delay time: 2s
- Induction Angle: < 100°
- IDDQ : < 60uA
- Op.T: -20 - 80 °C
Package Contents
- 1x PIR Hat
Specifications
| Resources | Parameter |
|---|---|
| Net weight | 5g |
| Gross weight | 12g |
| Product Size | 24 x 25 x 20mm |
| Package Size | 40 x 42 x 30mm |
Resources
