IDC Breakout Helper - 2x5 (10 pin)

IDC Breakout Helper - 2x5 (10 pin)

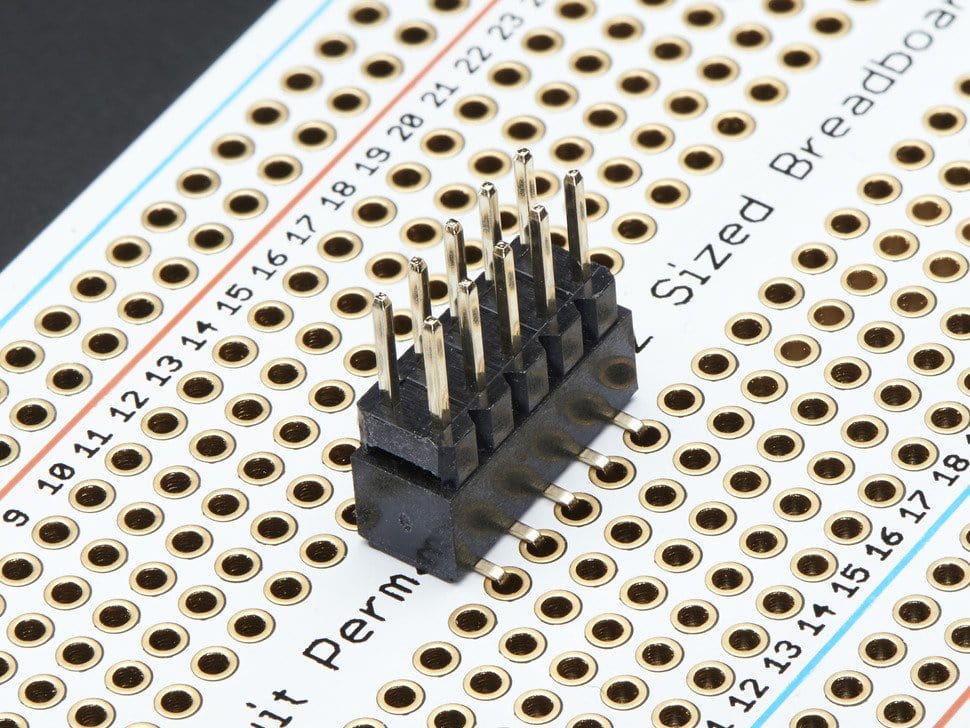

This little 2x5 (10 pin - 0.1 spaced) IDC Breadboard Helper is great in conjunction with any of our 10-pin IDC cables.

It comes in two parts, a 'pin-through' socket and a male header. The socket straddles the centre of a Perma-Proto and then the header plugs into the top of the socket.

Works best when soldered in place (they don't always stay put in a breadboard).

Each order comes with one socket and one header. Perma Proto and IDC cable not included!

Technical details

  • Dimensions (assembled): 13mm x 8mm x 16.5mm
  • Dimensions (header): 12.5mm x 5mm x 12mm
  • Dimensions (socket): 13mm x 8mm x 8mm
  • Weight (assembled): 1g
    $0.80
