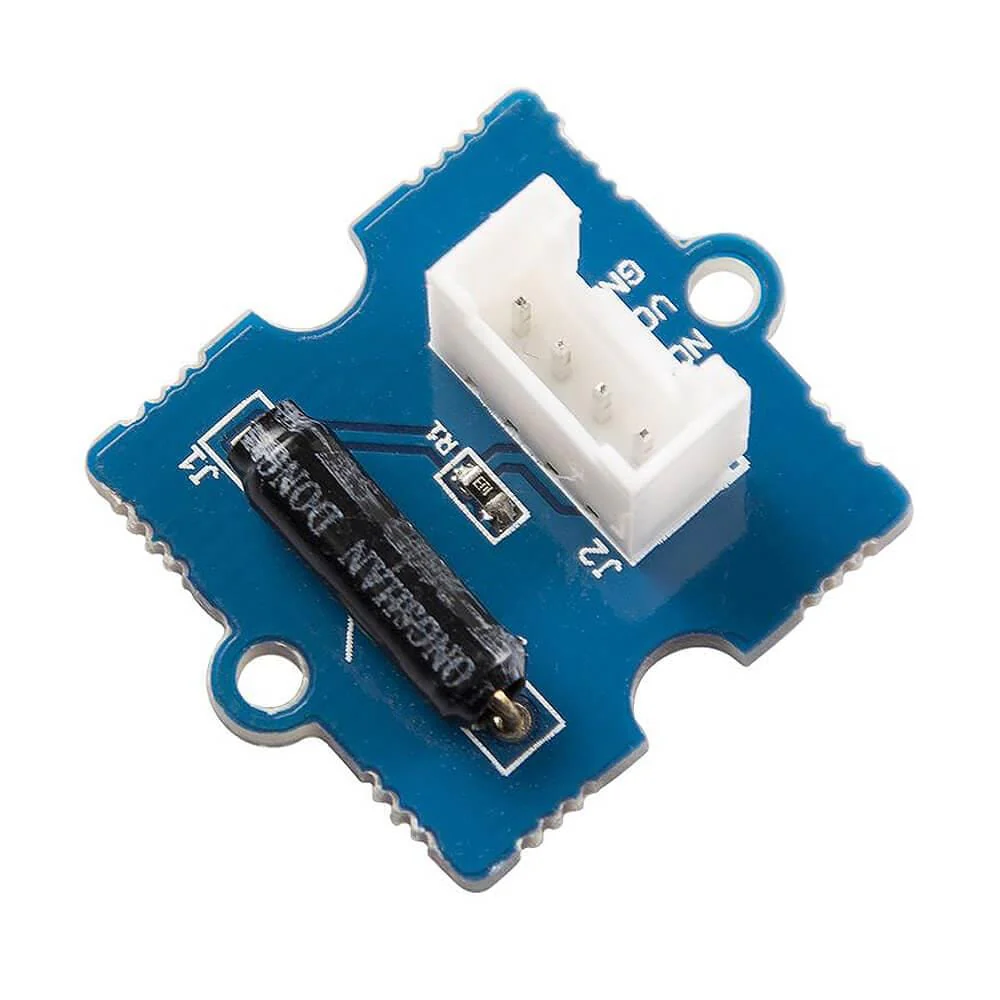

Grove - Tilt Switch

Grove - Tilt Switch

The tilt-switch Grove Module is the equivalent of a button when tilted (on/off) and is used as a digital input. When the switch is level it is open, when tilted the switch closes. It is wired to the SIG line (NC is not used on this module).

This module is great for monitoring a robot's orientation, allowing you to code measures such as an immediate halt to avoid a roll-over.

Features

  • Tilt switch
  • Grove compatible
  • Mounting holes
  • Product number: Seeed 101020025

Specifications

  • Voltage: 5V typical (3V min, 5.25V max)
  • Connection angle: 10° - 170°
  • Disconnect angle: 190° - 350°
  • Electrical Lifecycle: 100,000 uses

    Resources

    Package Contents

    • 1x Grove Tilt Switch
    $1.08

    Original: $3.10

    -65%
    Grove - Tilt Switch—

    $3.10

    $1.08

    More Images

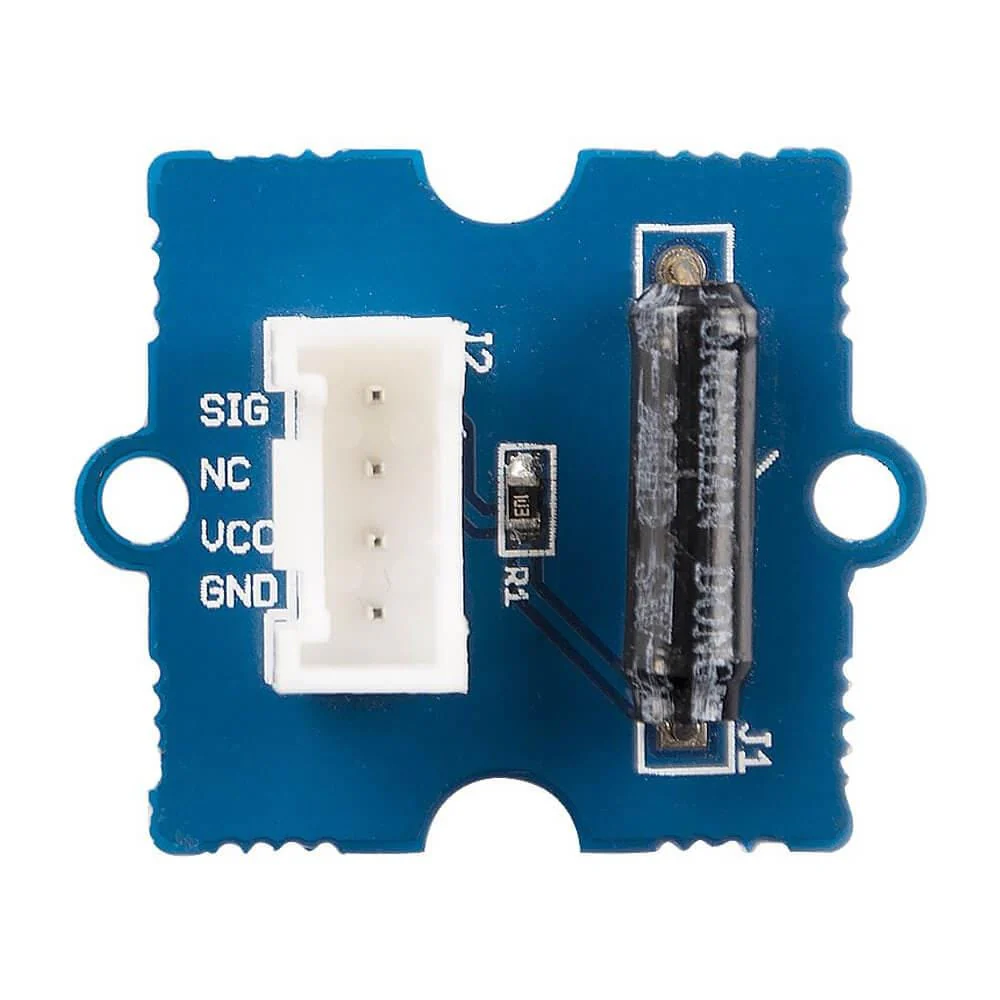

    Grove - Tilt Switch - Image 2
