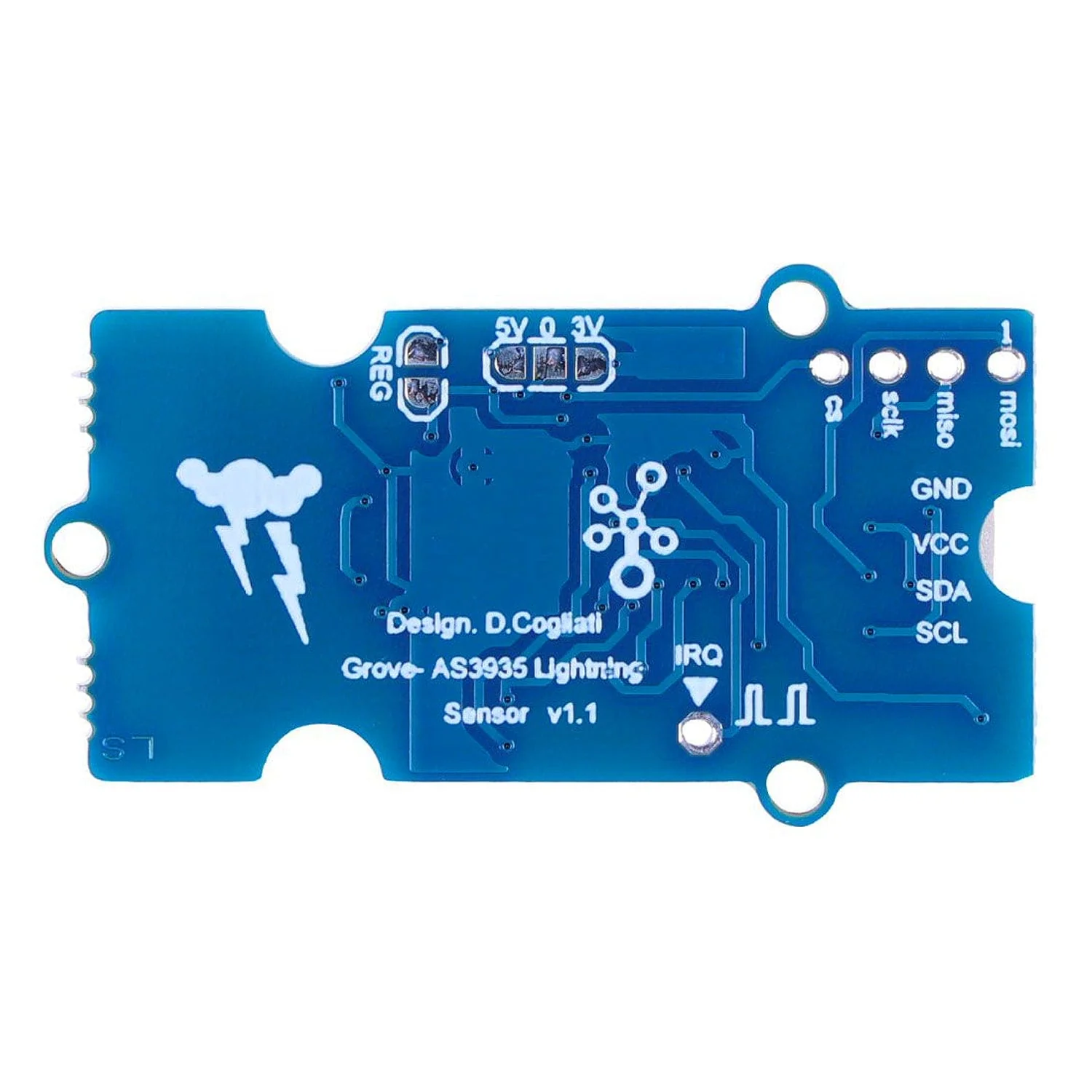

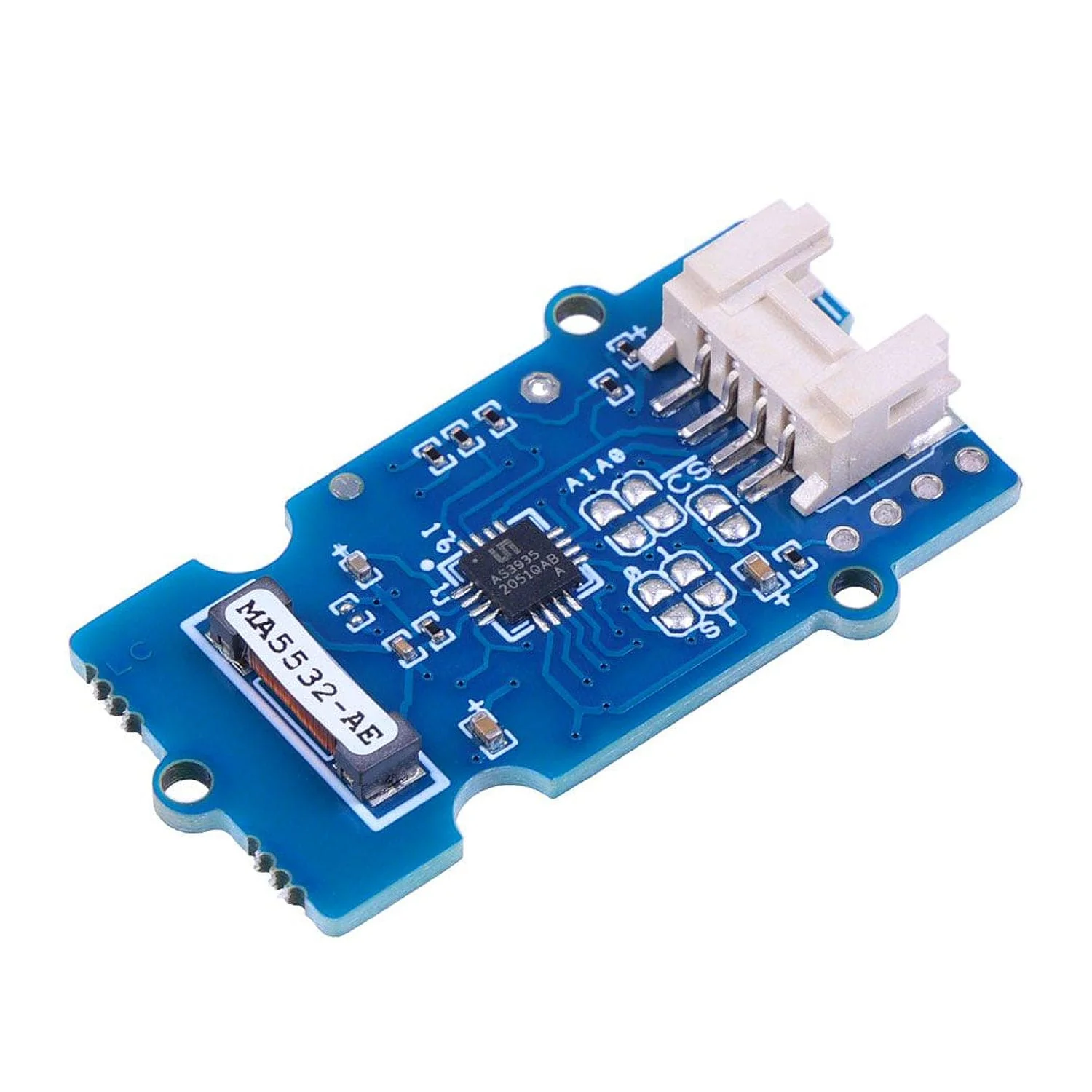

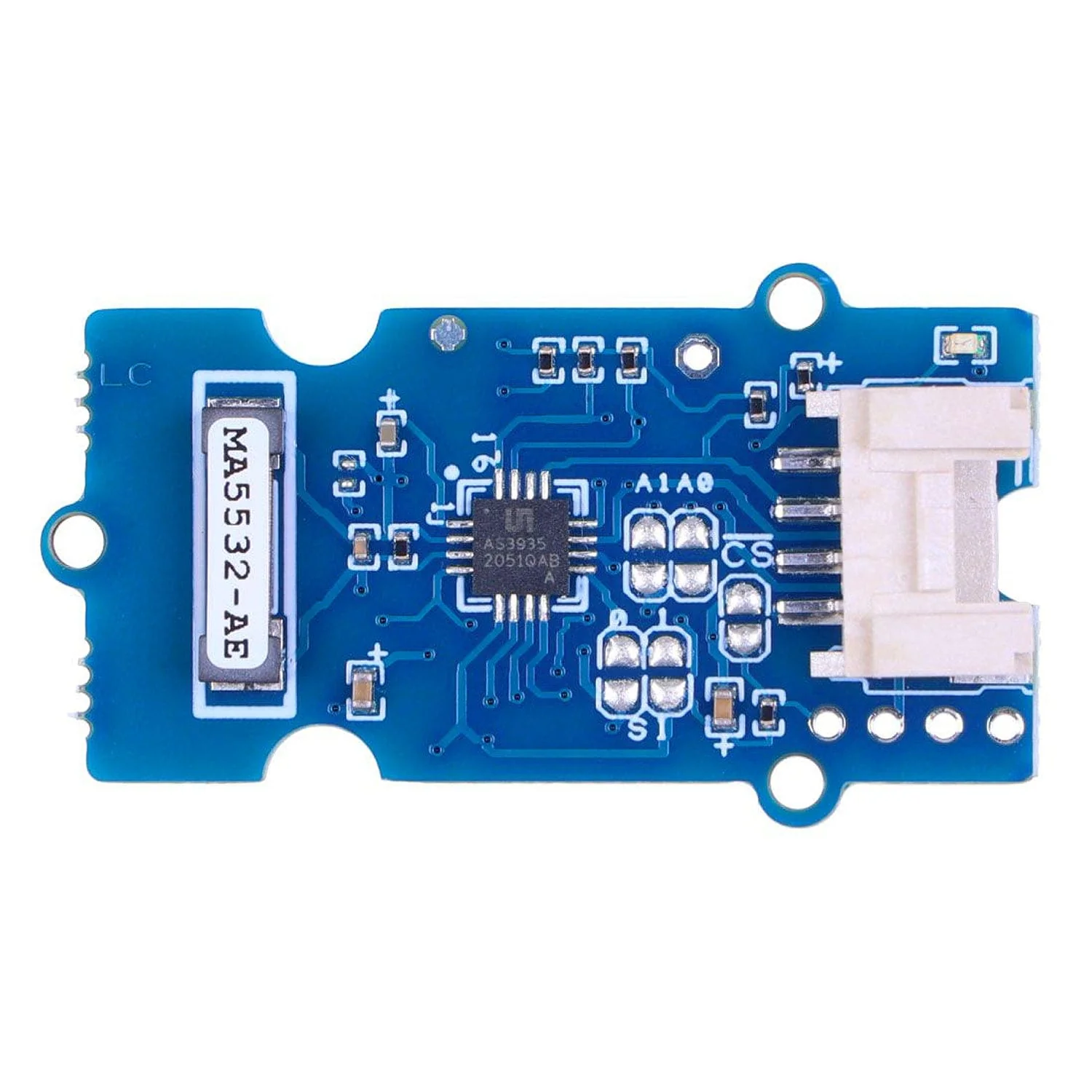

Grove - Lightning Sensor (AS3935)
The Grove AS3935 Lightning sensor is an easy-to-use sensor built around the AS3935 IC, which can detect both cloud-to-ground and intra-cloud types of lightning, for up to 30 or 40 km. It is programmable with I2C or SPI communication and supports 3.3V and 5.0V power supply.
This sensor evaluates the electric fields in the air and verifies the specific characteristic waveform of Lightning, finally sending the output to the development board. It represents a great application of electric field processing, which can be used to create alert systems for Lightning or violent storms approaching and for making complete forecast meteorological stations with adverse conditions alert.
Features
- Lightning Sensor: Detect both cloud-to-ground and intra-cloud types of lightning, based on the electric fields
- Wide Range: Sense in a range up to 30 – 40 km the front of a storm with lightning
- Programmable Detection Parameters: Achieve threshold setting level for optimal control
- Support I2C or SPI communication
- Support both 3.3V and 5.0 V power supply
- Product number: Seeed 101021072
Specifications
| Parameter | Detail |
| Size | 40 x 20 mm - height 7 mm |
| Power | 5 Volt or 3.3 Volt(through jumper selection) |
| Communication | I2C or SPI |
| Current in | Max 70 uA down to 2 uA with Vreg off and |
| Power down mode. | |
| On state | Yes through green led ON |
| Resonance | |
| Frequency | 500 kHz |
Resources
Package Contents
- 1x Grove lightning detection sensor
- 1x Grove cable
