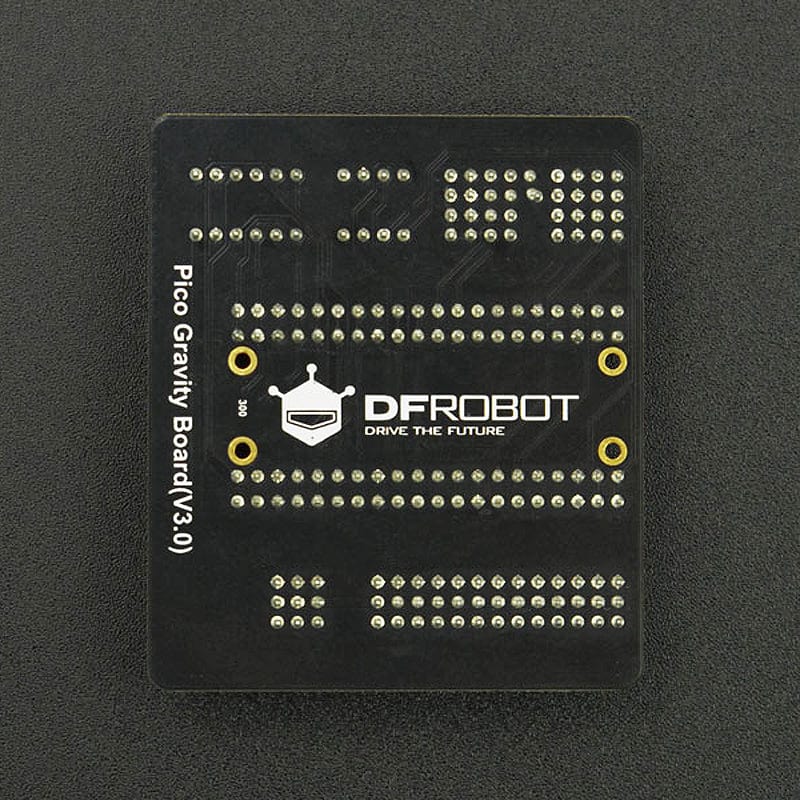

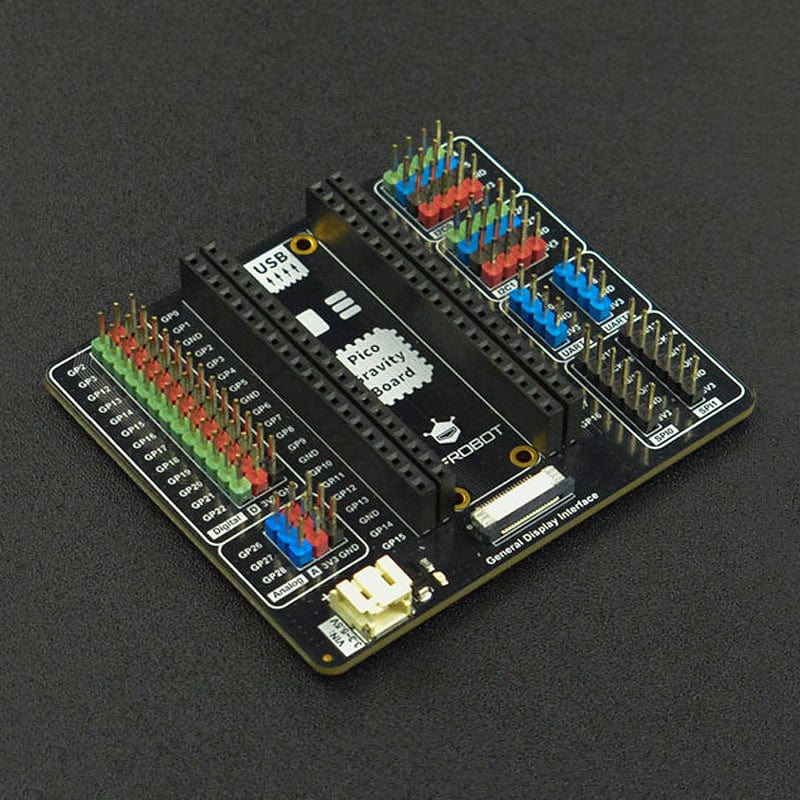

Gravity: Expansion Board for Raspberry Pi Pico
This Gravity Expansion Board specifically designed for Raspberry Pi Pico is compatible with a variety of Gravity sensors and modules.
With all pins led out, you can directly use it without soldering. Additionally, the board offers various communication ports including, 2 x I2C, 2 x UART, 2 x SPI, 3 x analog IOs and 13 x digital IOs as well as a 3.3~5.5V power connector and GDI port, which provides you with an easier way to prototype.

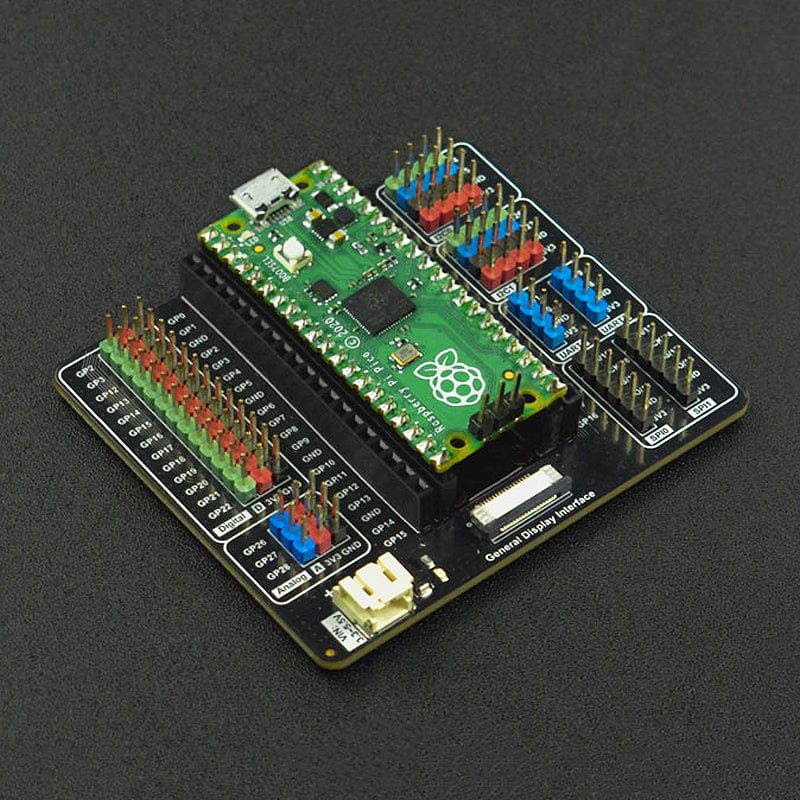

Your Pico will need to have male headers soldered to it with the pins pointing downwards (or grab one of our Pre-soldered Picos).
Note: Raspberry Pi Pico NOT included - click here if you'd like to buy one
Features
- No need to weld, plug-and-play
- Support all kinds of Gravity sensor and modules
- Comes with 3.3~5.5 V PH2.0 power interface, applicable to mobile projects
- Onboard GDI port, compatible with DFRobot - GDI series display

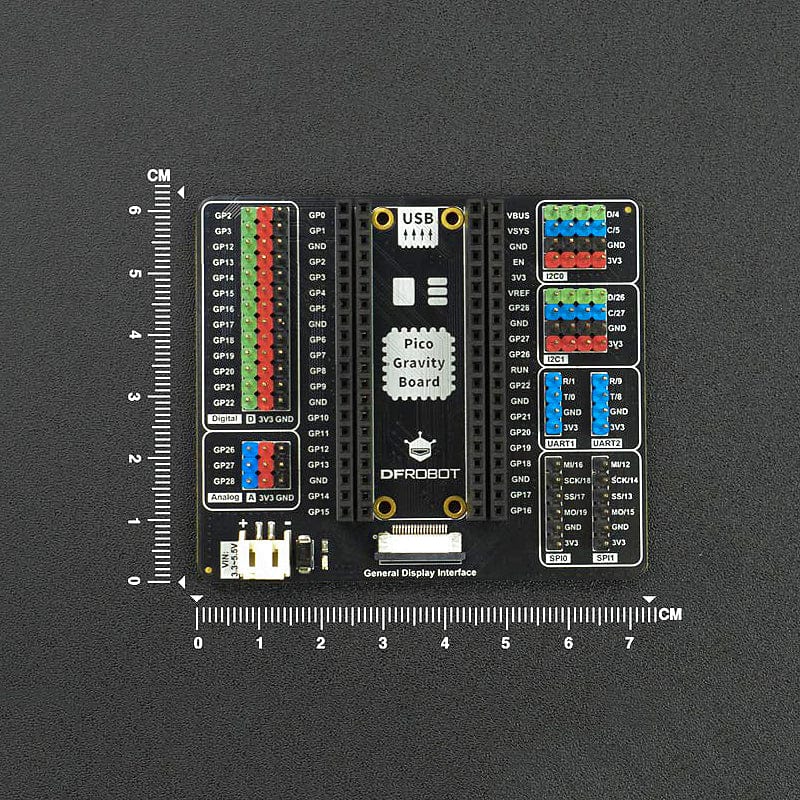

Specifications
- All pins brought out onto female pin headers
- Digital IO x 13: GP2, GP3, GP12-22
- Analog IO x 3: GP26-GP28
- UART x 2
- I2C x 2
- SPI x 2
- PH2.0 Power Connector: 3.3 V - 5.5 V
- Display Screen Interface: GDI
- Dimension: 73.00 x 63.00 mm/28.74 x 24.8 inch
Resources
Package Contents
- 1x Gravity: Expansion Board
Original: $4.80
-65%$4.80
$1.68More Images
