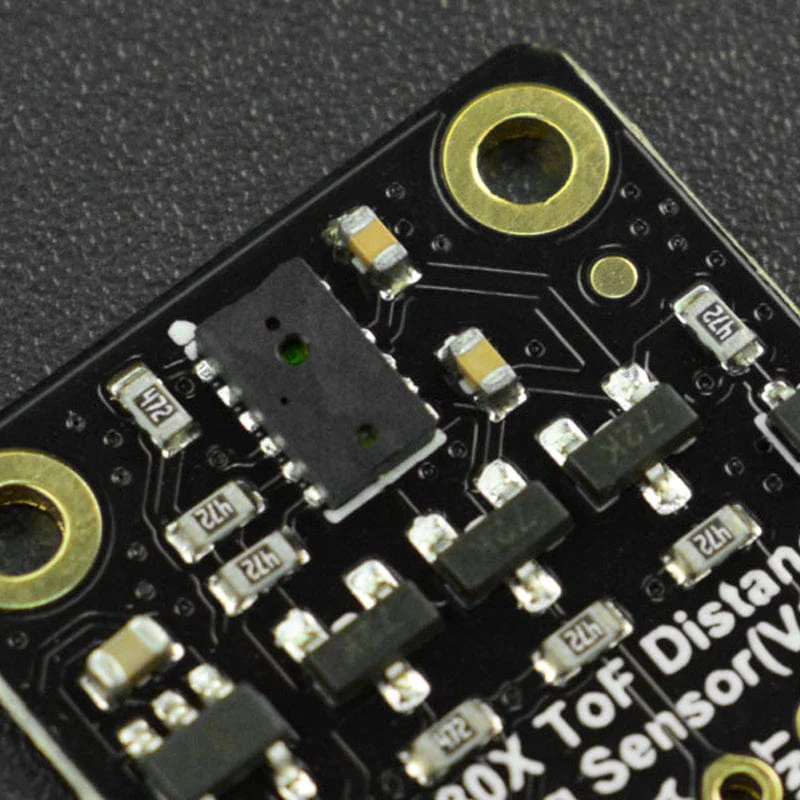

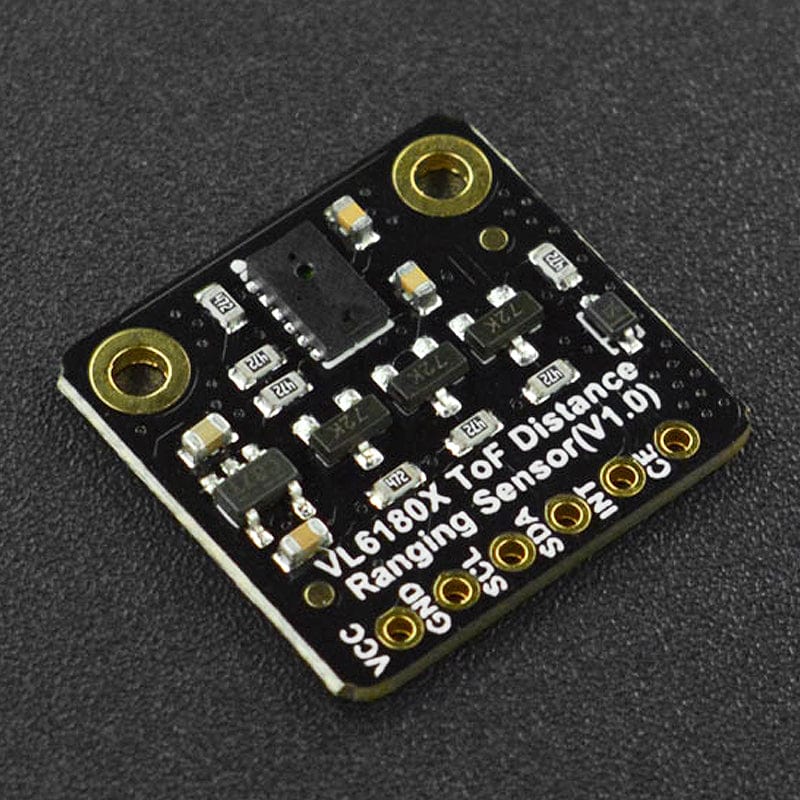

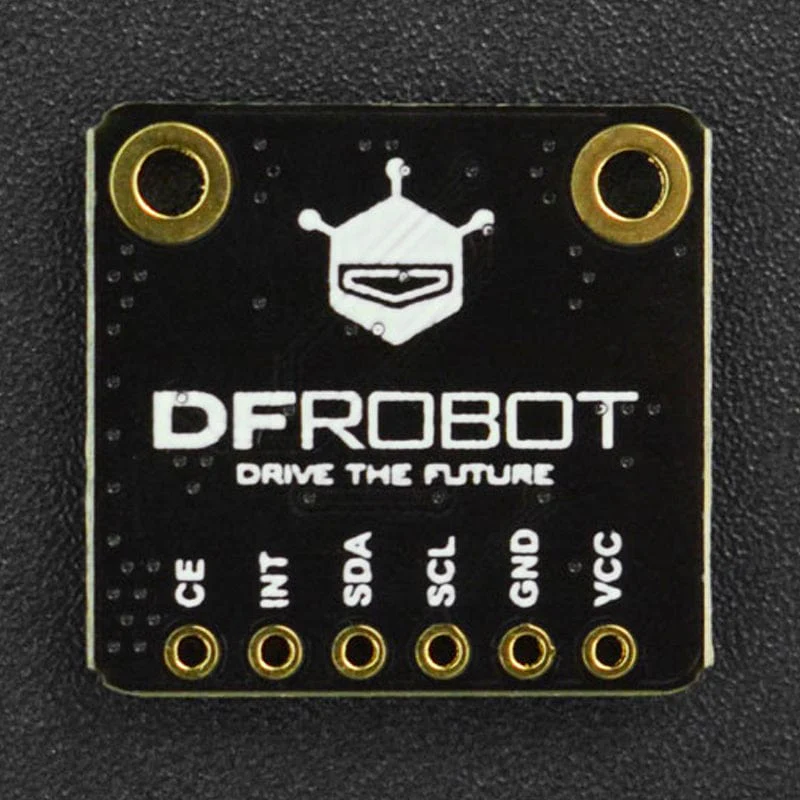

Fermion: VL6180X ToF Distance Ranging Sensor (Breakout)
The STMicroelectronics VL6180X Time of Flight Ranging Sensor embeds ST’s patented FlightSense™technology that allows distance to be accurately measured independent of target reflectance. The sensor is rated to perform ranging measurements of 5-100mm, but it can provide readings up to 200mm in a good environment. Besides, VL6180X is also equipped with an ambient light sensor, so basically, this is a sensor that combines proximity ranging and ambient light level measurement capacities into a single package.
Features
- Simultaneous measurement of distance and ambient light
- VCSEL light source
- Strong anti-interference
Connection Example - DFRduino UNO
Specifications
- Power Supply Voltage: 3.3V~5V
- Operating Current: ＜5mA
- Measuring Distance: 5-100mm
- Emitter: 940nm invisible laser (VCSEL)
- I2C Address: 0x29
- Operating Temperature Range: -20°C~85°C

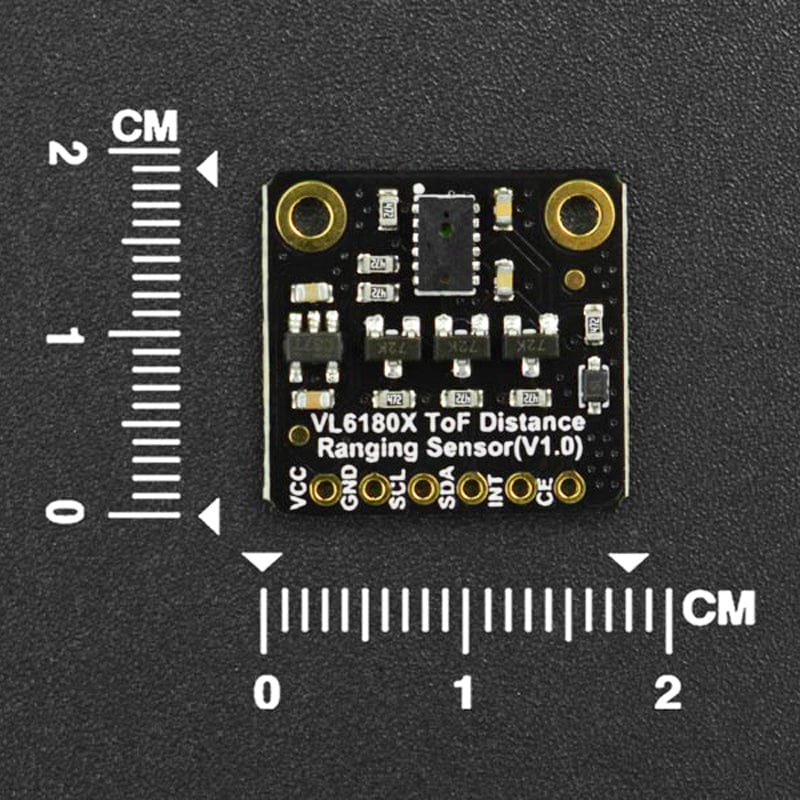

- Product Size: 19 x 18mm
Resources

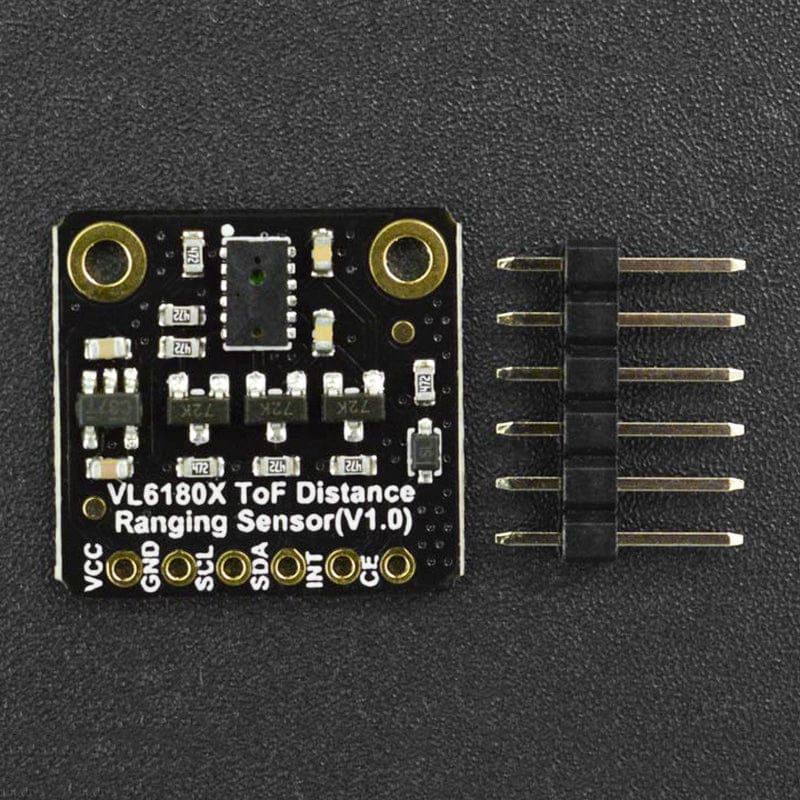

Package Contents
- 1x Fermion: VL6180X ToF Distance Ranging Sensor (Breakout)
- 1x 2.54-6P Black Single Row Pin Header
Original: $9.20
-65%$9.20
$3.22More Images
