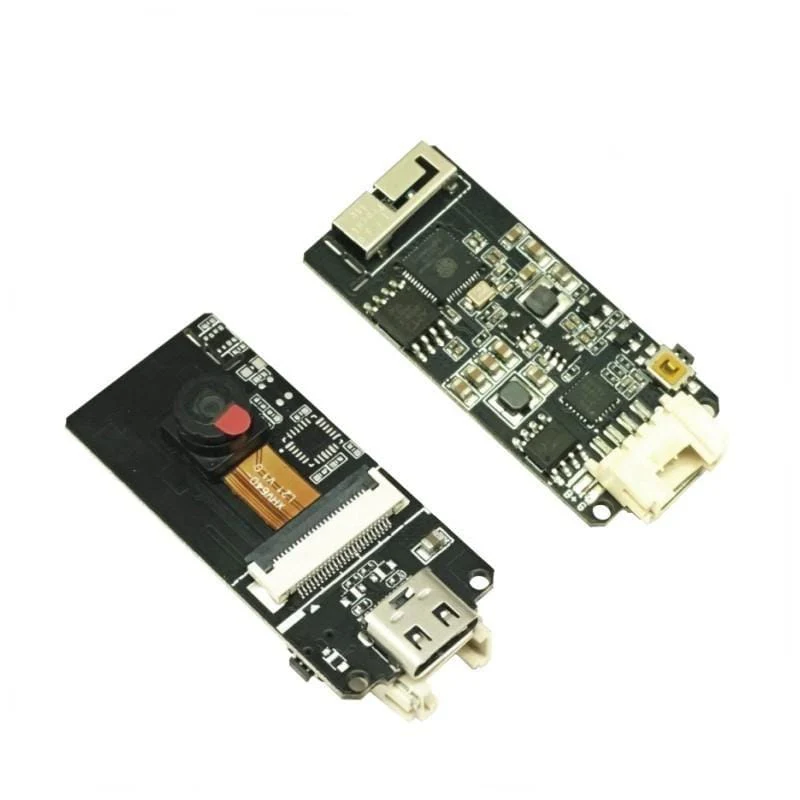

M5Stack ESP32 Camera Module Development Board (OV2640) [Discontinued]
ESP32CAM is a compact development board for image recognition, with an ESP32 processor, a 2 megapixel OV2640 camera and onboard wifi.
It comes preloaded with wifi camera software, connect to the wifi network starting with 'm5stack-' and navigate to 192.168.4.1 to get started!
For more information and for help getting started, click here
Product Features
- ESP32 specifications
- Dual-core Tensilica LX6 microprocessor
- Up to 240MHz clock frequency
- 520KB internal RAM
- 4MB Flash memory
- Integrated 802.11 BGN WiFi transceiver
- Integrated dual-mode Bluetooth (classic and BLE)
- Hardware accelerated encryption (AES, SHA2, ECC, RSA-4096)
- CP2104 USB TTL
- OV2640 sensor
- Output Formats(8-bit):
- YUV(422/420)/YCbCr422
- RGB565/555
- 8-bit compressed data
- 8-/10-bit Raw RGB data
- Maximum Image Transfer Rate
- UXGA/SXGA: 15fps
- SVGA: 30fps
- CIF: 60fps
- Scan Mode: Progressive
- Output Formats(8-bit):
- Camera specifications
- Field of View : 65 degree
- Maxmium Pixel: 2M
- Size: 20.5 × 46.5 × 11.5mm
Includes
- 1x ESP32CAM Unit
Original: $11.00
-65%$11.00
$3.85More Images
