Encoder Adapter [Discontinued]

Encoder Adapter [Discontinued]

This adapter is especially designed for DFRobot 12V DC Motors, adding the compatibility factor for those products without customized connectors or external power supplies.
This adapter integrates an external pull-up resistor, which raises the output voltage when the transistor is turned off. This board has two built-in pull-up resistors.

Specification

  • Compatible with open collector output encoder
  • Size:31x24mm(1.22x0.94")

Documents


Shipping List

  • Encoder Adapter x1
  • Cable x1
$1.19

Original: $3.40

-65%
Encoder Adapter [Discontinued]—

$3.40

$1.19

More Images

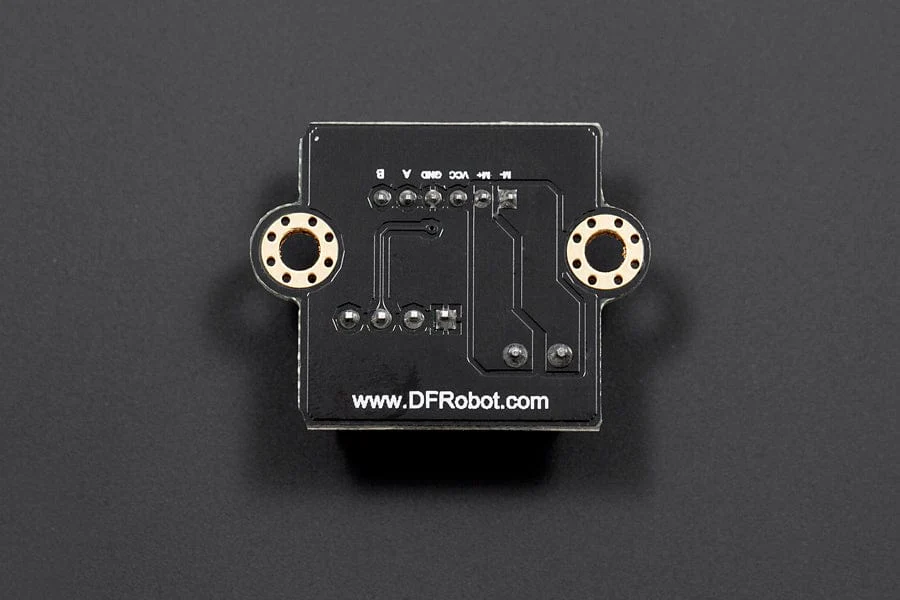

Encoder Adapter [Discontinued] - Image 2

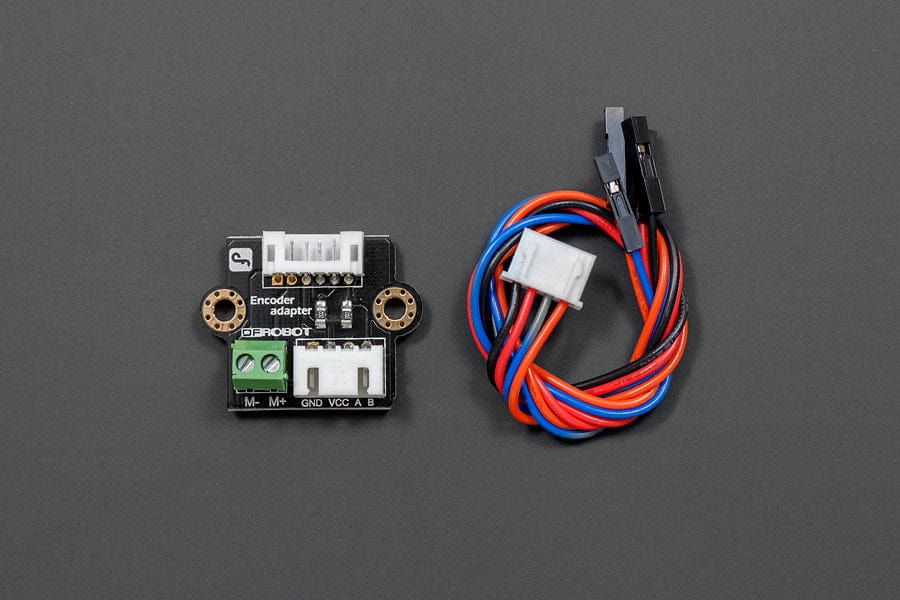

Encoder Adapter [Discontinued] - Image 3

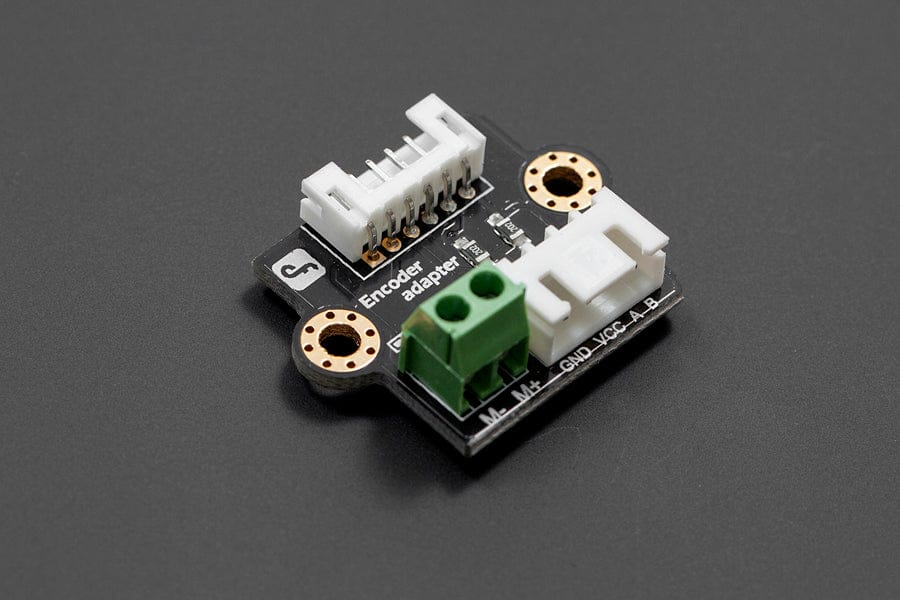

Encoder Adapter [Discontinued]
