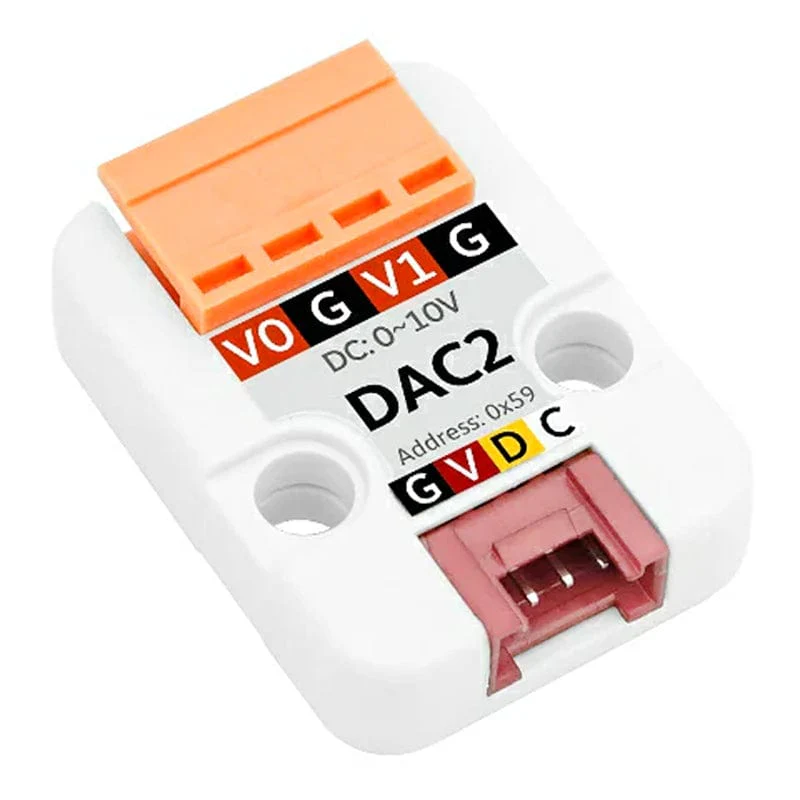

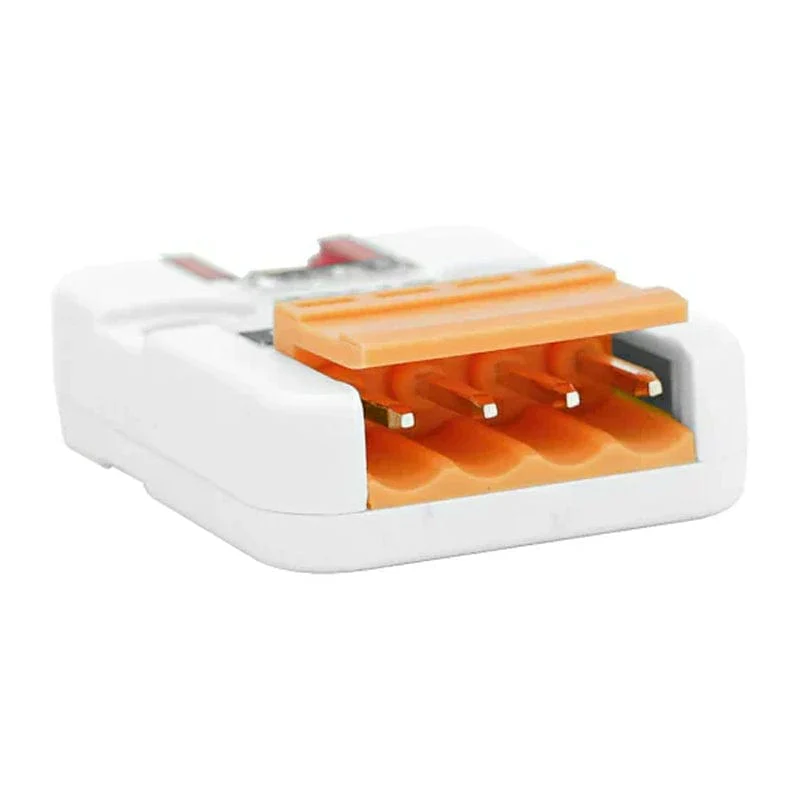

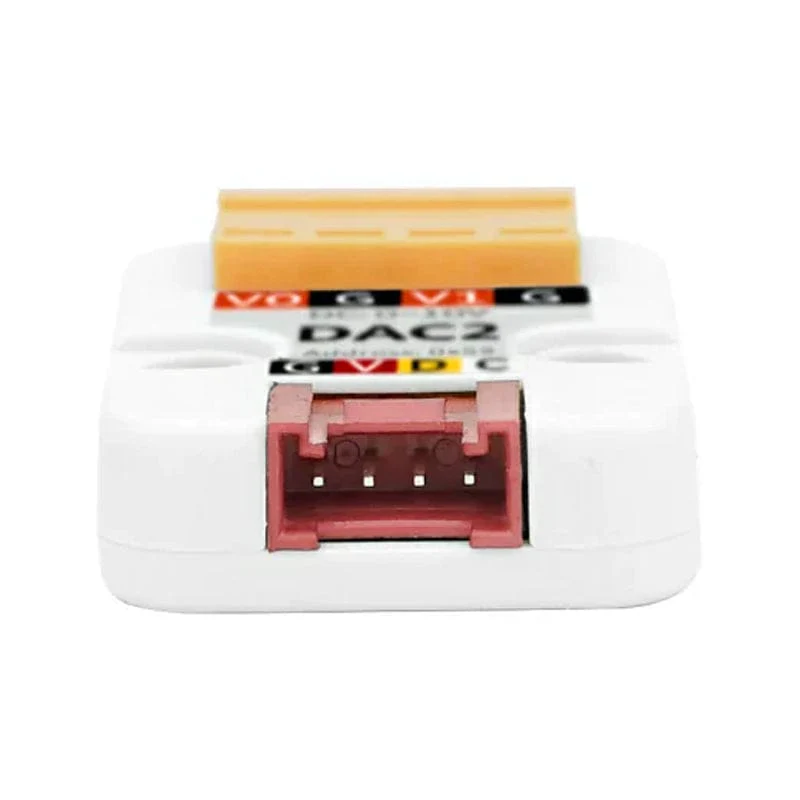

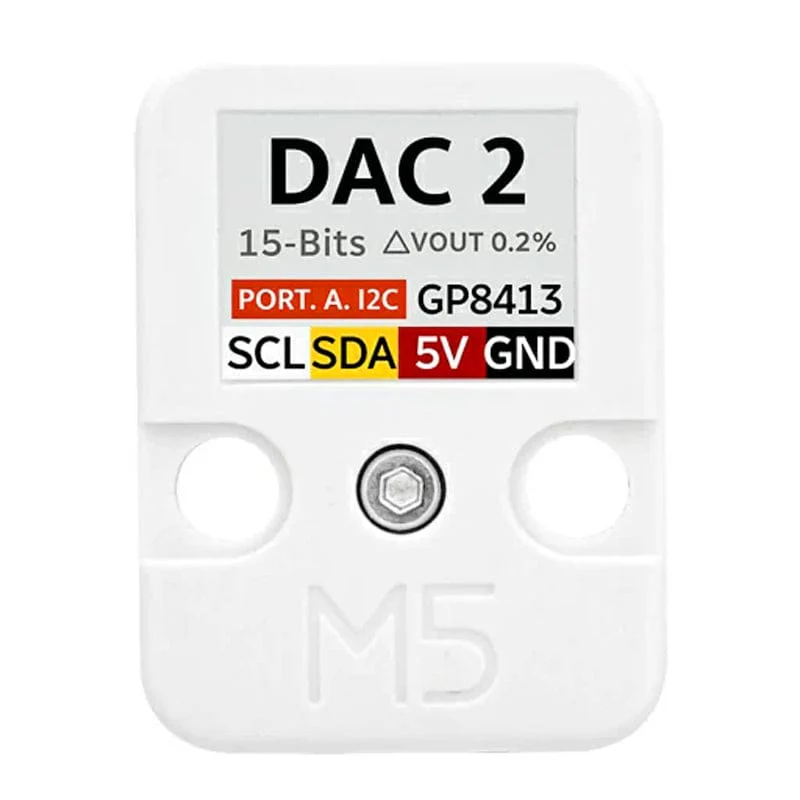

DAC 2 I2C Unit (GP8413)
The DAC2 Unit is a digital-to-analogue conversion module that operates over an I2C interface, using the GP8413 solution to produce high precision and accuracy. This chip can linearly convert a 15-bit digital input into two independent analogue voltages ranging from 0-5V or 0-10V, with an output voltage error of only 0.2% and linearity up to 0.01%.
It includes a 3-bit hardware address, enabling the connection and simultaneous operation of up to eight devices, enhancing its scalability. Additionally, it features output short-circuit protection; it automatically transitions into protection mode when a short circuit occurs between the output pins and ground, preventing damage by halting the output.
Features
- I2C communication (default address 0x59)
- Supports multiple parallel connections
- Short-circuit protection
- High precision, small error
Specifications
| DAC Chip | GP8413 |
| Resolution Ratio | 15Bit |
| I2C Serial Communication | 0x59 (default) |
| Maximum Output Voltage | 10V |
| Output Voltage Error | <0.2% |
| Output Voltage Linearity error | 0.0001 |
| Operating Temperature | 0-40°C |

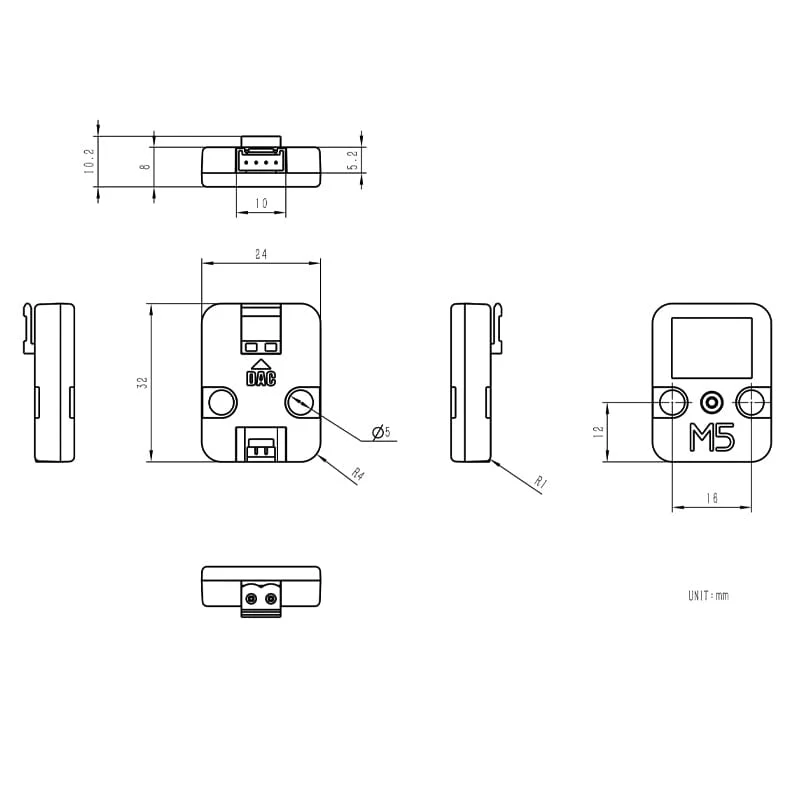

| Product Size | 32 x 24 x 10.2mm |
| Package Size | 136 x 92 x 13.7mm |
| Product Weight | 5g |
| Package Weight | 13.3g |
Resources
Package Contents
- 1x DAC2 Unit
- 1x VH3.96-4P
- 1x Sticker
