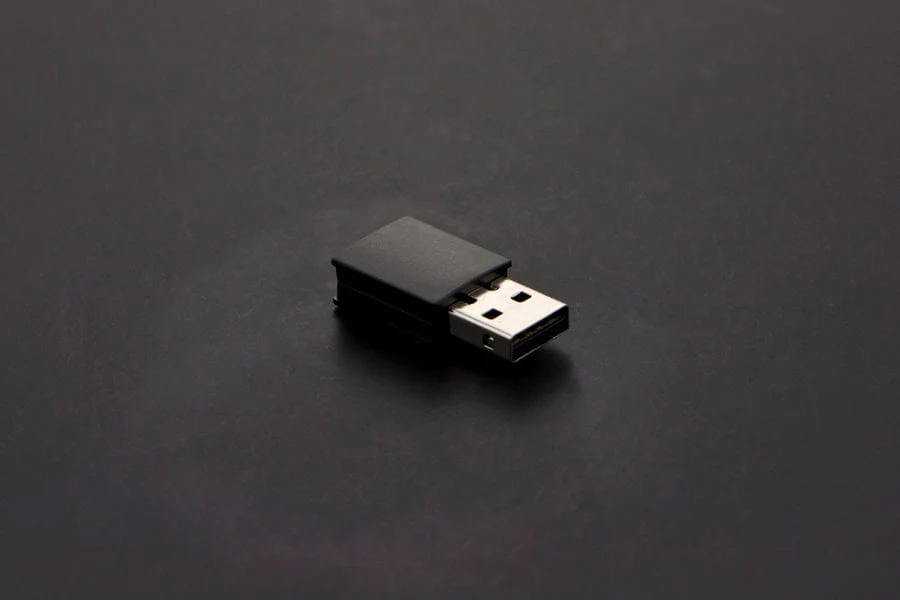

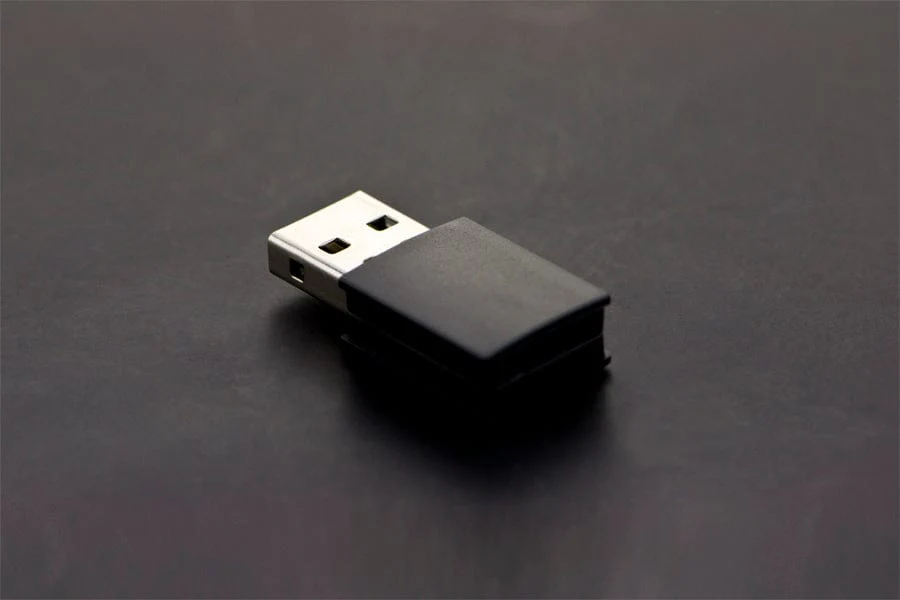

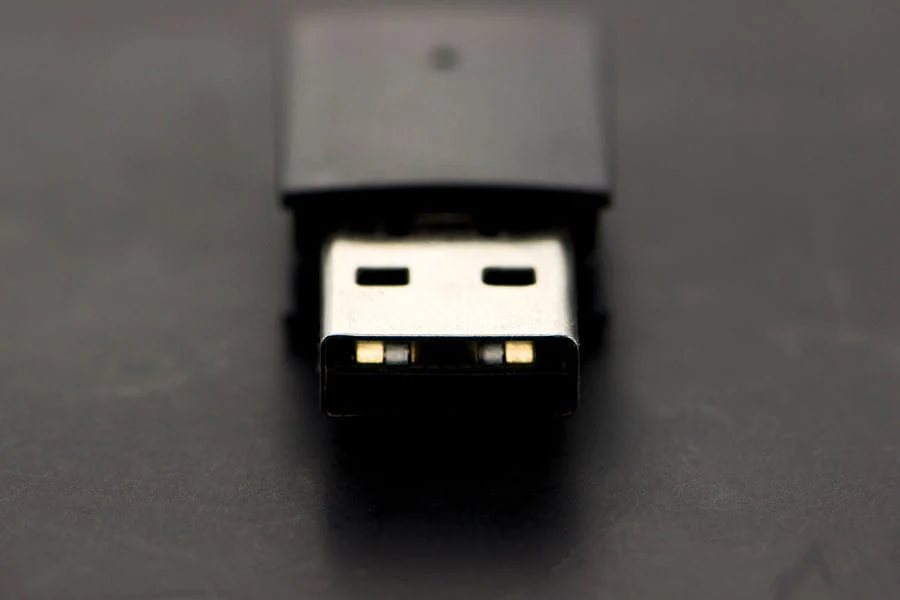

Bluno Link - USB Bluetooth 4.0 (BLE) Dongle

Add bluetooth 4.0 to your PC, Mac directly with this USB BLE-Link. It uses the USB package which is compact and compatible with v2.1 and earlier, and also supports the latest v4.0/Bluetooth Low Energy. Now you could use this adapter to receive/transmit data.

With two USB-BLE Link users can do point-to-point wireless transparent transmission, master-slave machine setting, and wireless programming. It can also work as a PC BLE wireless programming adapter. Comaptible all DFRobot BLE series modules: i.e. Bluno - An Arduino Bluetooth 4.0 (BLE) Board, Romeo BLE (Arduino Robot Control Board with Bluetooth 4.0), etc

JavaScript display

		Bluetooth 2.0 Module V3 For Arduino	Bluetooth 2.0 Bee Module For Arduino	Bluno Link - A USB Bluetooth 4.0 (BLE) Dongle	Bluetooth Adapter Mini
SKU	TEL0073	TEL0026	TEL0023	TEL0087	TEL0002
BLE Chip	TI CC2540	CSR BC417143	CSR BC417143	TI CC2540	—
Frequency	2.4GHz	2.4 ~ 2.48GHz unlicensed ISM band	2.4 ~ 2.48GHz unlicensed ISM band	2.4GHz	2.4 ~ 2.48GHz FHSS
Transfer rate	1Mbps GFSK	Asynchronous: 2.1Mbps (Max) / 160 kbps; Synchronous: 1Mbps/1Mbps	Asynchronous: 2.1Mbps (Max) / 160 kbps; Synchronous: 1Mbps/1Mbps	1Mbps GFSK	3Mbps
BLE protocol	V4.0	V2.0 + EDR	V2.0 + EDR	V4.0	V2.0
Modulation	GFSK	GFSK	GFSK	GFSK	FHSS
Power consumption	10.6mA average, ready mode: 8.7mA	—	—	10.6mA average, ready mode: 8.7mA	—
Sensitivity	-93dBm	≤-84dBm	≤-84dBm	-93dBm	≤-84dBm
Working Voltage	3.3V	+3.5 V ~ +8 V DC and 3.3V DC/50mA	3.3V	3.3V	—
Operating temperature	-40 ℃ ~ +85 ℃	-20 ℃ ~ +55 ℃	-20 ℃ ~ +55 ℃	-10 ℃ ~ +85 ℃	-20℃ ~ +55℃
Transmission distance	30m	20 ~ 30m	20 ~ 30m	10 ~ 20m	<10m
Dimension	32*22mm	402013mm	32249mm	32mm * 16mm	20168mm
Weight (g)	10	10	12	10	10
AT command to debug the BLE	√	√	√	√	—
master-salve machine switch	√	√	√	√	—
Transparent transmission	√	√	√	√	—
Wireless programming	√ (Available for Bluno series)	—	—	√	—
iBeacons	√	—	—	—	—
BLE HID	√	√	√	√	√
Mobile App Control	√	√	√	—	—
Key Features	support Android and IOS applications,open source code,suitable for secondary development by the user	Compatible with APC220 communication interface, can be directly used in I/O Expansion Shield, Romeo, XBoard and etc,.	It can be plugged into the Arduino controller using the XBEE base for Bluetooth wireless control.	Standard USB interface. Support for firmware update via USB. Install Arduino UNO USB driver, default host mode.	USB2.0 standard interface. supports the native Windows Bluetooth stack.

Specification

Bluetooth chip: TI CC2540
Frequency: 2.4GHz
Pin Layout: Compatible with Xbee pinout
Transfer rate: ≤1Mbps
Modulation: GFSK, bluetooth low power, V4.0
Sensitivity: -93dB
Input Voltage: +3.3 DC
Operating temperature： -10 ℃ ~ +85 ℃
Transmission distance: 5~15m in free space
Size: 32mm * 16mm(1.26"*0.63")
support AT command to debug the BLE
support master-salve switch
support transparent transmission serial port
support bluetooth remote update the Arduino program

Documents

Wiki (Bluno Link - A USB Bluetooth 4.0 (BLE) Dongle)

Shipping List

USB BLE-LINK x1

$9.60
