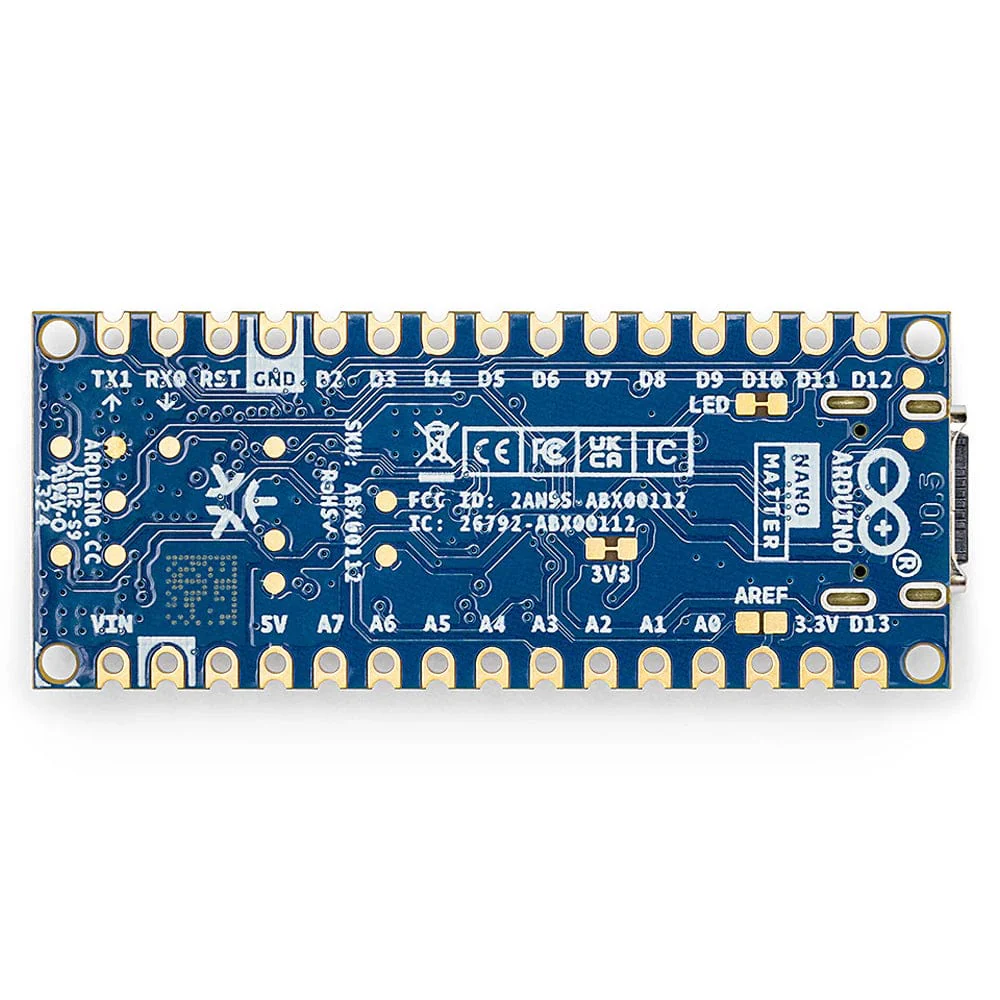

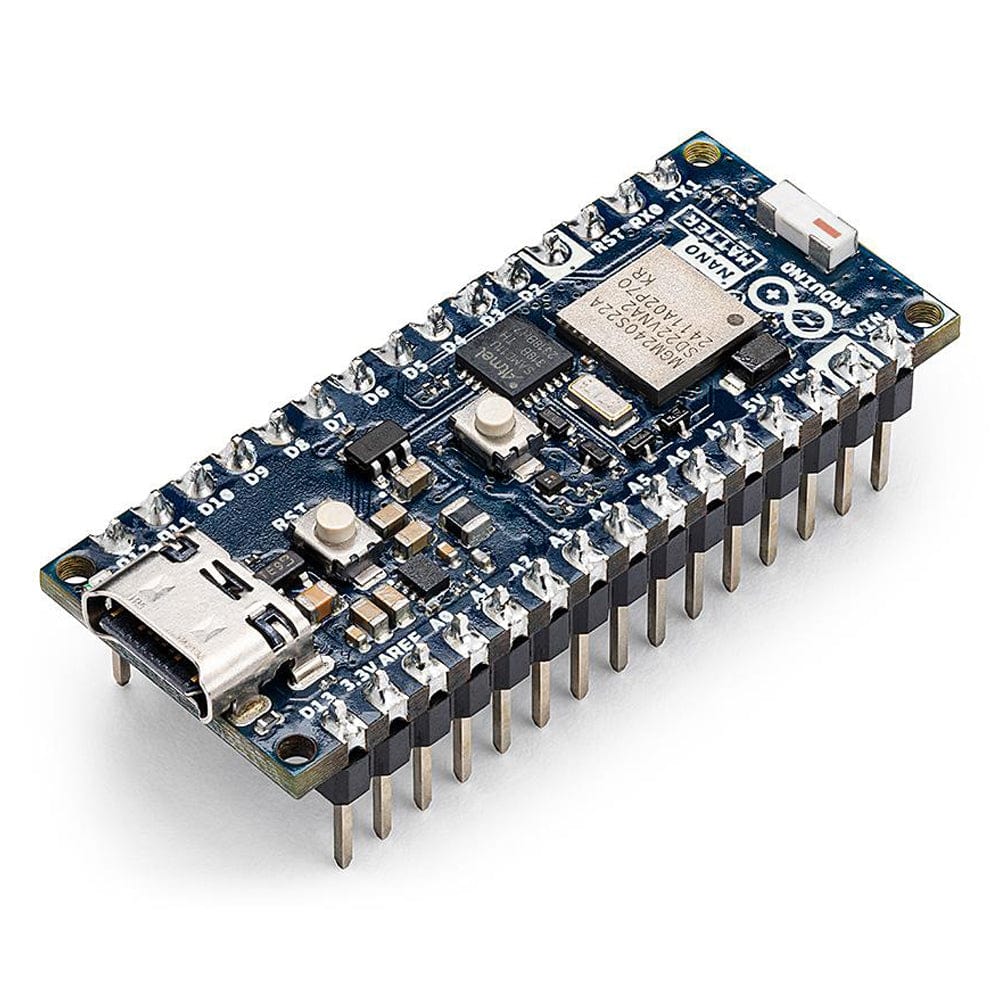

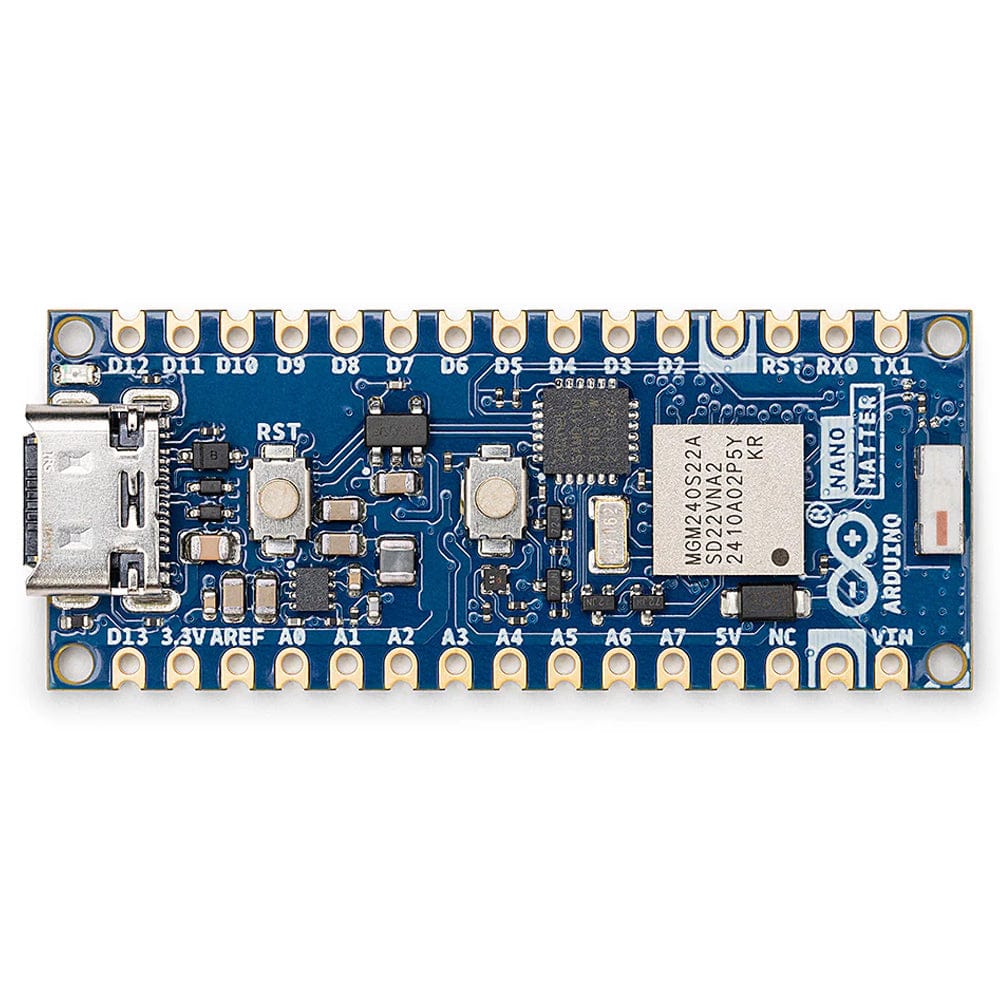

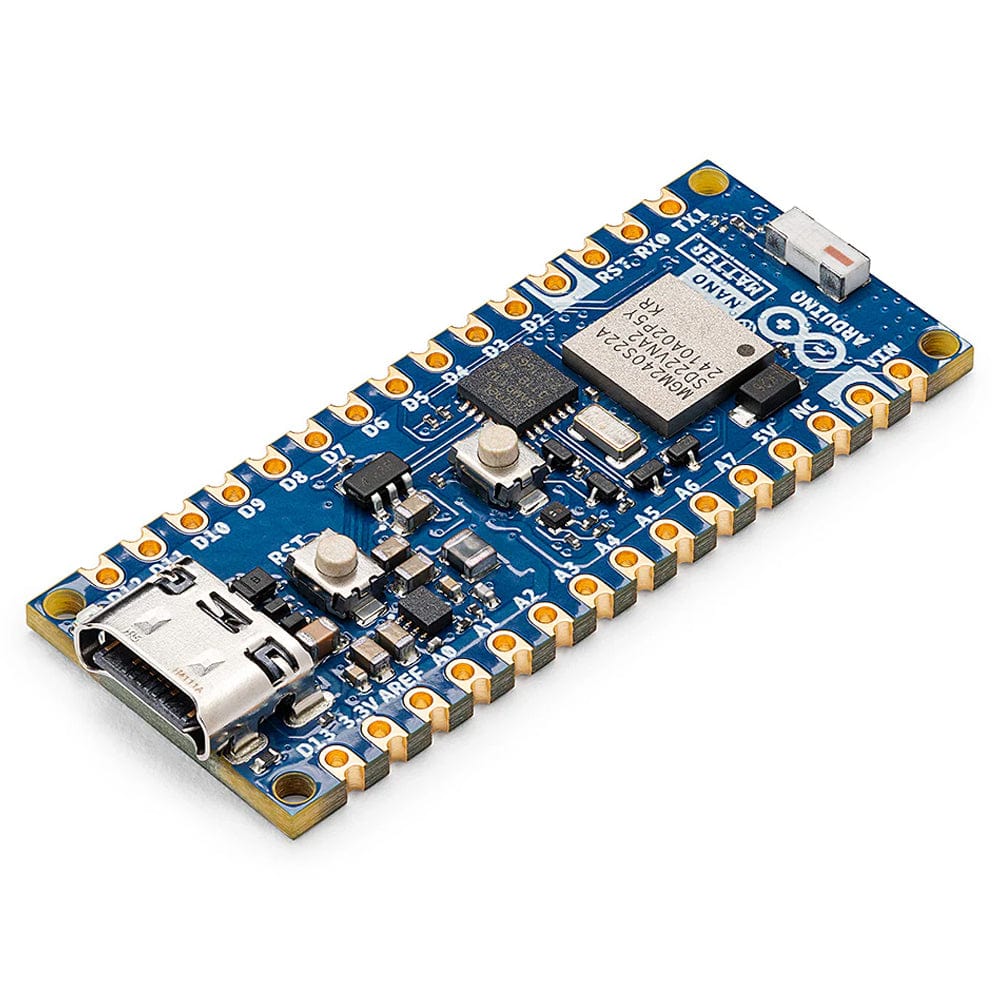

Arduino Nano Matter
Nano Matter merges Arduino’s signature ease of use with the powerful Silicon Labs® MGM240S, wrapping the best of two worlds into one of the smallest form factors currently on the market. Experimenting with Matter-compatible devices has never been easier!
With Nano Matter, makers – at all levels of expertise – can leverage the popular Matter IoT connectivity standard to build interactive solutions, upgrade previous Nano-based projects to fully function as smart home devices, and even experiment with protocols like Zigbee® and OpenThread.
Features
- Matter® Ready - Create, connect, and communicate with Matter® compatible devices using Arduino as the software layer for rapid prototyping.
- OpenThread - Nano Matter uses Thread for IoT mesh networking communication in a highly compact form factor.
- MGM240SD22VNA 32-bit Arm® Cortex®-M33 - The Nano Matter integrates MGM240SD22VNA, boasting a 32-bit Arm® Cortex®-M33 processor optimized for complex calculations and signal processing in power-sensitive IoT applications.
- Bluetooth® connectivity - Leverage dual-mode connectivity, integrating both IEEE 802.15.4 (Thread) for mesh networking and Bluetooth® Low Energy for short-range communication.
- Debugging over USB - No external debugging device is needed. Connect the board to the computer over USB and have access to a SWD interface.
- Low power consumption - The Nano Matter has been designed as an ultra-low power board, being the perfect solution for IoT battery-powered applications.
- Tiny footprint - With a length of 45 mm and a width of 18 mm, the Nano Matter maintains a tiny footprint of the well-known Nano family, allowing easy upgrades for existing projects.
- Secure Vault technology-enabled - Protect your project with the industry-leading suite of security features from Silicon Labs escalating Internet of Things (IoT) threats.
- Arduino IoT Cloud Compatible - Use your board on Arduino's IoT Cloud, a simple and fast way to ensure secure communication for all of your connected Things. Try the Arduino Cloud for free!
Specifications
| Microprocessor | MGM240SD22VNA (32-bit Arm® Cortex®-M33 with DSP instruction and FPU) |
| Connectivity | 802.15.4 (Thread), Bluetooth® Low Energy 5.3, Bluetooth® Mesh, Matter-ready Smart Home Connectivity |
| Memory | 1536 kB Flash, 256 kB RAM |
| USB Connector | USB-C® |
| Security | Secure Vault™ High |
| Debugging | Over USB |
| UART | 2 |
| I2C | 2 |
| SPI | 2 |
| Digital I/O | 22 |
| Analog Inputs | 20 (12 bits resolution) |
| DAC | 4 (8-12 bits resolution) |
| PWM pins | 22 (A maximum of 5 pins simultaneously) |
| External interrupts | Available within all Digital pins |
| User Interface | On-board RGB LED, User pushbutton |
| Circuit operating voltage | 3.3 V |
| Input Voltage (VIN) | 5 V |
| Source Current per I/O Pin | 40 mA |
| Sink Current per I/O Pin | 28 mA |
| Clock Speed | 78 MHz |
| Antenna On-board | 2.4 GHz |
| Dimensions | 18x45 mm |
| Environmental Temperature | -40 °C to + 85 ° |
Resources
- User manual
- Pinout
- Datasheet
- Schematics
- STEP Files
- Project Hub
- Arduino GitHub Repository
- Arduino Forum
- Product numbers:
- Board + Loose headers:Arduino ABX00112
- Pre-soldered Board: Arduino ABX00137
- EAN:
- Board + Loose headers: 7630049204867
- Pre-soldered Board: 7630049205291
Software/Libraries
Tutorials
- Matter Smart Fan with the Arduino Nano Matter
- Matter Smart Relay with the Arduino Nano Matter
- Matter RGB Light with the Arduino Nano Matter
- Matter Temperature Sensor with the Arduino Nano Matter
- Open Thread Border Router with Nano Matter & ESP32
Package Contents

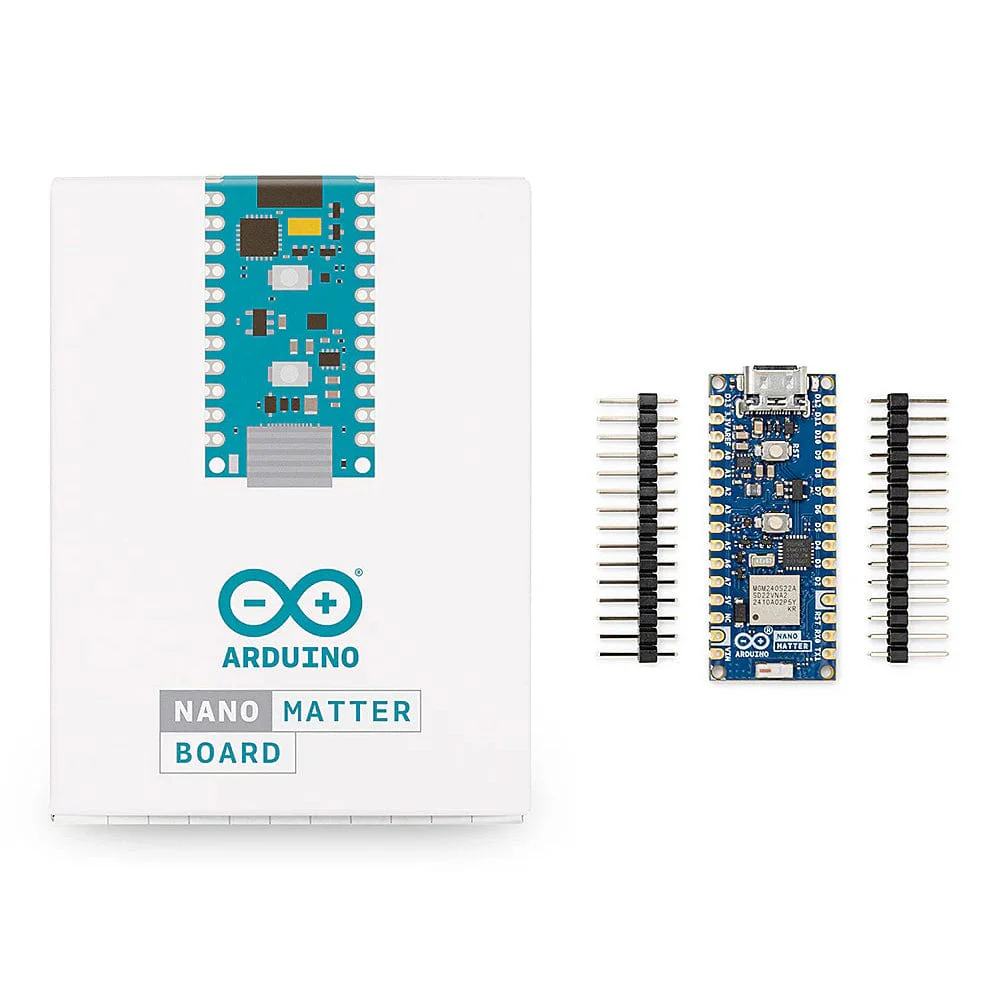

- 1x Arduino Nano Matter board (with loose headers or pre-soldered - select before adding to your cart)
USB-C cable not included
