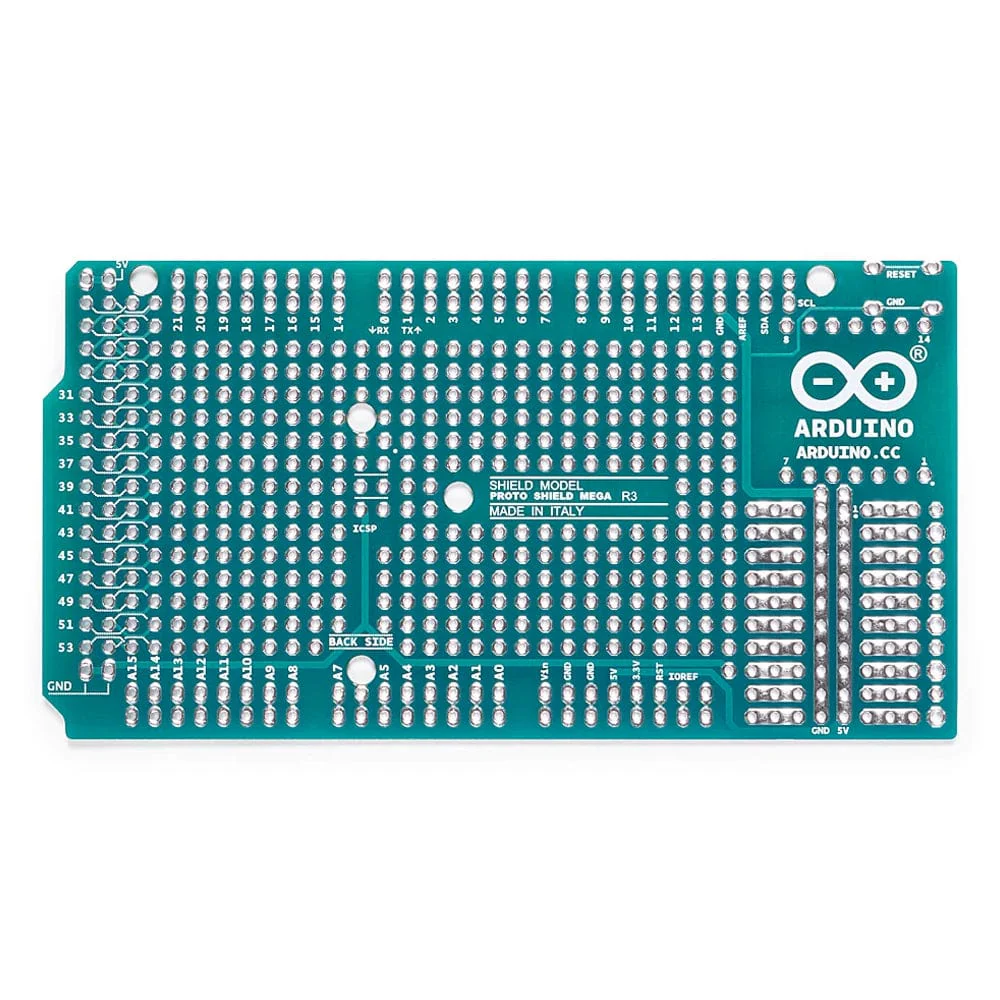

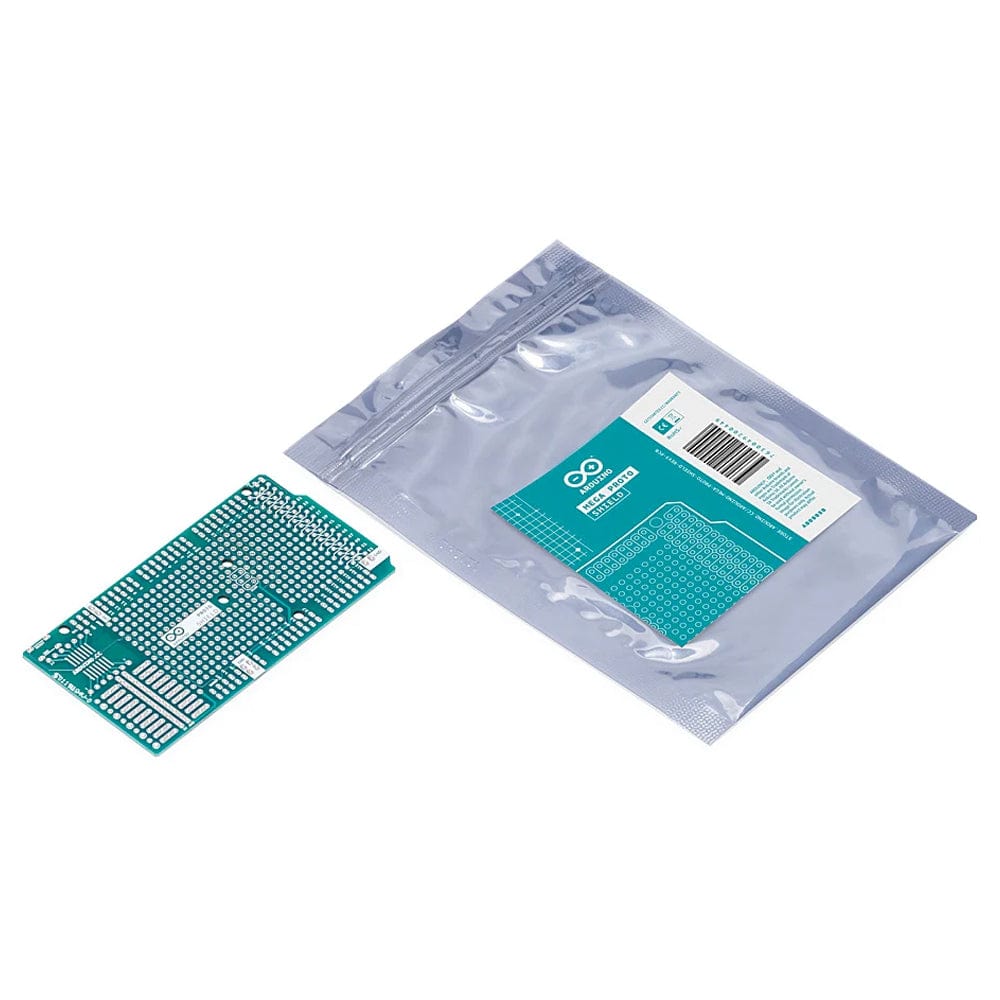

Arduino MEGA Proto Shield Rev3 (PCB)
The Arduino Prototyping Shield makes it easy for you to design custom circuits with your Arduino MEGA.
You can solder parts to the prototyping area to create your project, or use it with a small solderless breadboard (not included) to quickly test circuit ideas without having to solder. It's got extra connections for all of the Arduino MEGA I/O pins, and it's got space to mount through-hole and surface-mount integrated circuits. It's a convenient way to make your custom Arduino circuit into a single module.
Features
- 1.0 Arduino pinout
- 1 Reset button
- 1 ICSP connector
- 14 pins SMD footprint (50 mils pitch)
- 32 double-row through Hole pads, standard Arduino breakout layout
- Proto aerea with multiple THT pads, 100 mils pitch
Getting Started
You can find in the Getting Started section all the information you need to configure your board, use the Arduino Software (IDE), and start tinker with coding and electronics.
Specifications
- PCB Size: 101.5 x 53.3 mm
- Weight: 0.013 Kg
Resources
- Schematics
- Eagle Files
- Product number: Arduino A000080
Original: $5.90
-65%$5.90
$2.06More Images
