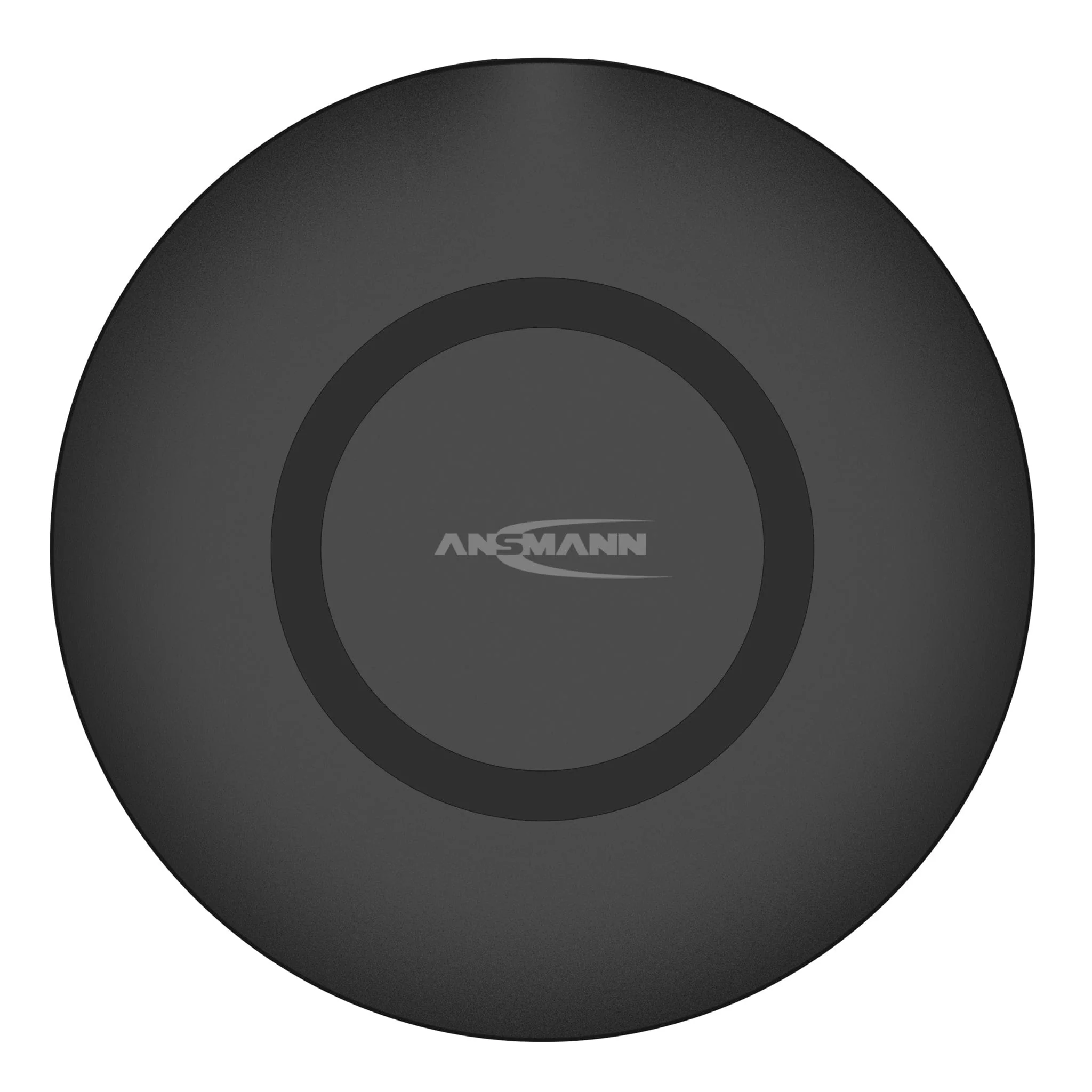

ANSMANN WiLine 15R Wireless Charger

The ANSMANN WiLine 15R is a compact Qi-enabled wireless charger with an integrated LED power indicator, offering 15W output (5V 1A / 9V 1.1A / 9V 1.7A).

The integrated LED glows blue during charging and flashes red when an error or foreign object is detected. It also glows red in standby mode.

With a thickness of just 5mm, the WiLine 15R is one of the thinnest wireless chargers available. Thanks to its passive cooling concept, it stays within the green zone even at peak performance. Anti-slip rubber feet ensure stability on smooth surfaces, and the rubberised support ring keeps your smartphone securely in place.

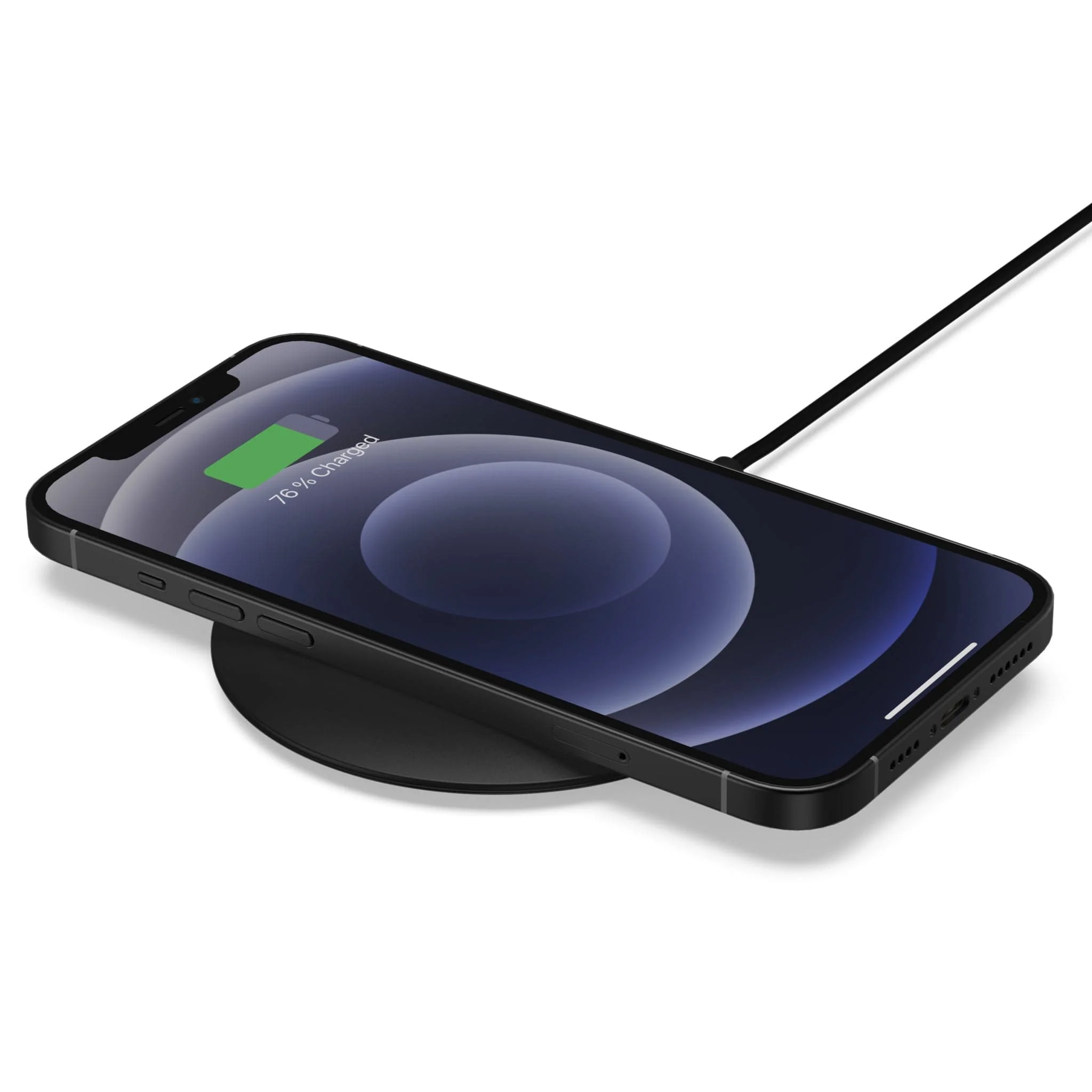

The wireless charger is compatible with all Qi-enabled smartphones and Qi receivers and is therefore suitable for universal use.

The WiLine 15R comes with a USB-C cable, allowing the charger to be used with any USB power adapter. A USB power adapter is required but not included - we recommend the ANSMANN Dual-USB charger.

Power Output

Voltage	Current	Wattage Mode
5V	1A	5W
9V	1.1A	10W
9V	1.7A	15W

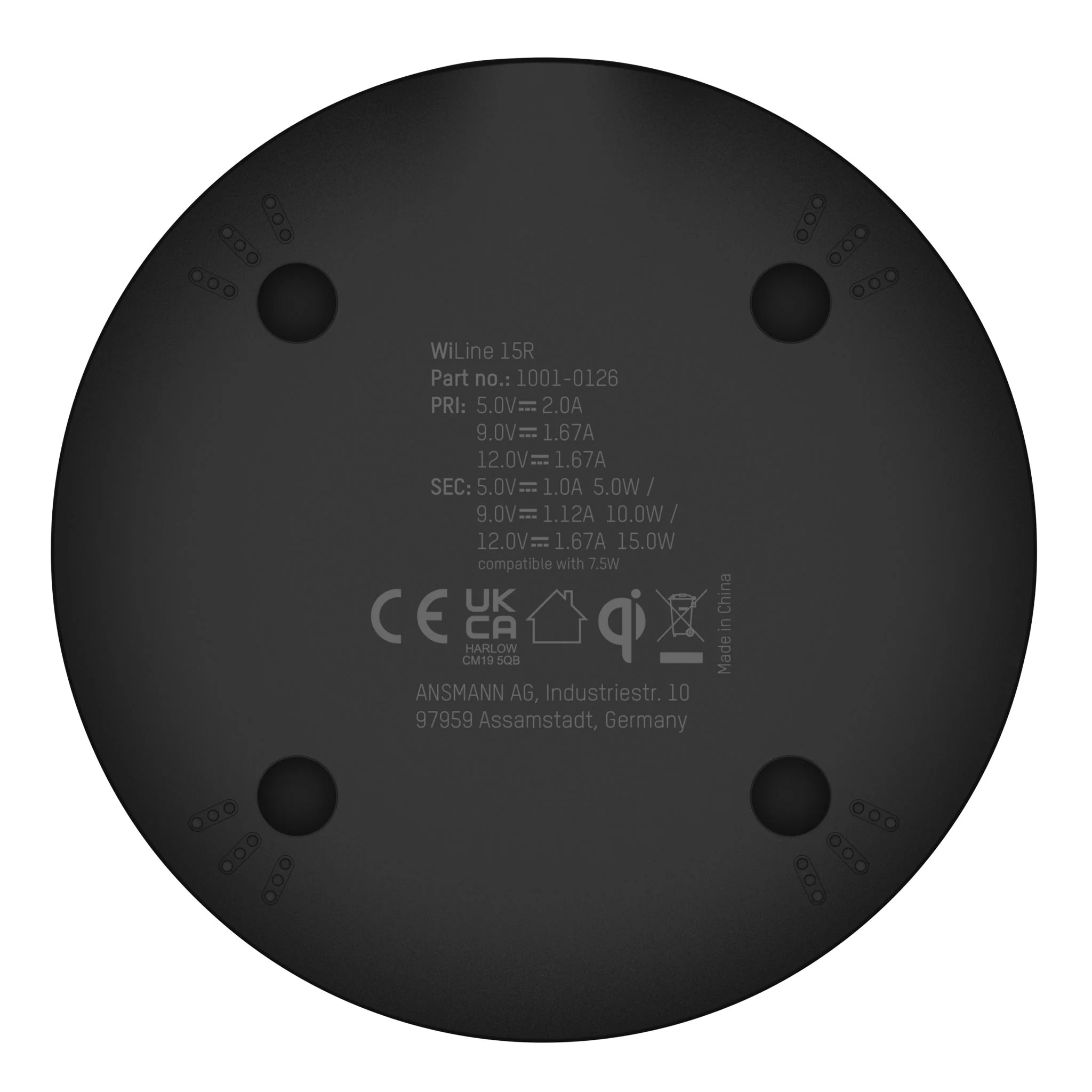

Specifications

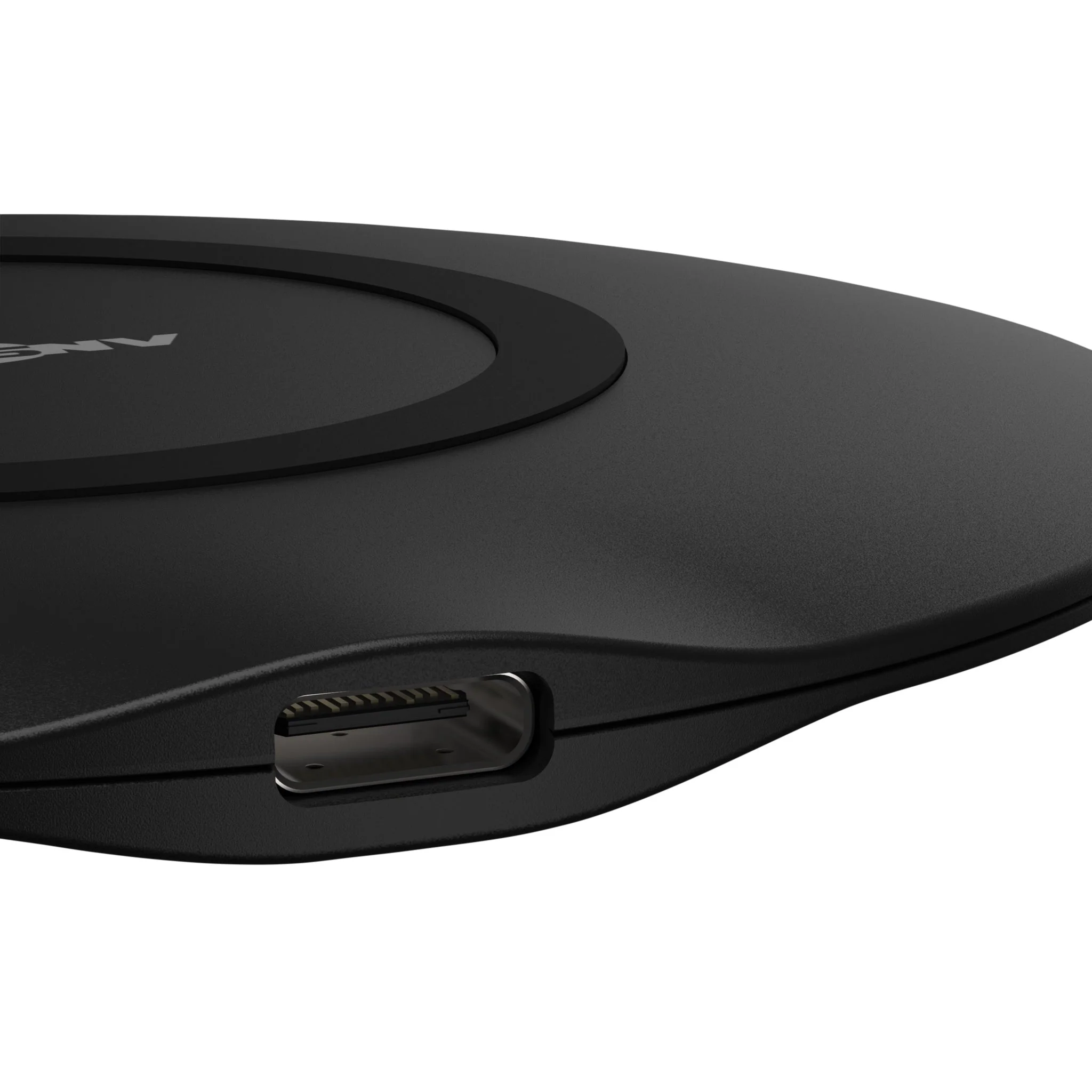

• Input socket DC: USB Type-C
• Input voltage and input current:
  • 5.0 V DC 2.0 A (max.)
  • 9.0 V DC 2.0 A (max.)
  • 12.0 V DC 2.0 A (max.)
• Possible output voltage, current and power:
  • 5.0 V DC 1.0 A (max.) – 5.0 W
  • 9.0 V DC 0.83 A (max.) – 7.5 W
  • 9.0 V DC 1.2 A (max.) – 10.0 W
  • 9.0 V DC 1.67 A (max.) – 15.0 W
• Foreign object detection (FOD): Yes
• Over voltage protection (OVP): Yes
• Over current protection (OCP): Yes
• Temperature protection (OTP): Yes
• Efficiency:
  • 10 W & 15 W: 75%
  • 5 W: 67%
• Status indicator LED:
  • Standby: Red
  • Charging: Blue
  • Full: Off
  • Error (FOD, OCP): Blinks blue
• Compatible with:
  • 15W, 10W, 7.5W, 5W charging
  • Samsung S7, S7 edge, S8, S9, S10, iPhone8 + similar wireless charge devices
  • Mobile phones supporting the Qi protocol, such as iPhone8 Plus, iPhone X, Mate20Pro, P30Pro, can be charged wirelessly
• Housing material: ABS
• Approval: CE
• Net weight: 49 g ± 3 g (Charger only)
• Operating temperature: -10 °C - 45 °C
• Storage temperature: -20 °C - 70 °C
• Package: Coloured folding box
• Product number: ANSMANN 1001-0126
• EAN: 4013674184897

Resources

• Datasheet
• CE Declaration

Package Contents

• 1x WiLine 15R Wireless Charger
• 1x USB-C cable
• 1x Printed instruction manual
