SMT Breakout PCB for SOIC-20 or TSSOP-20 - 3 Pack

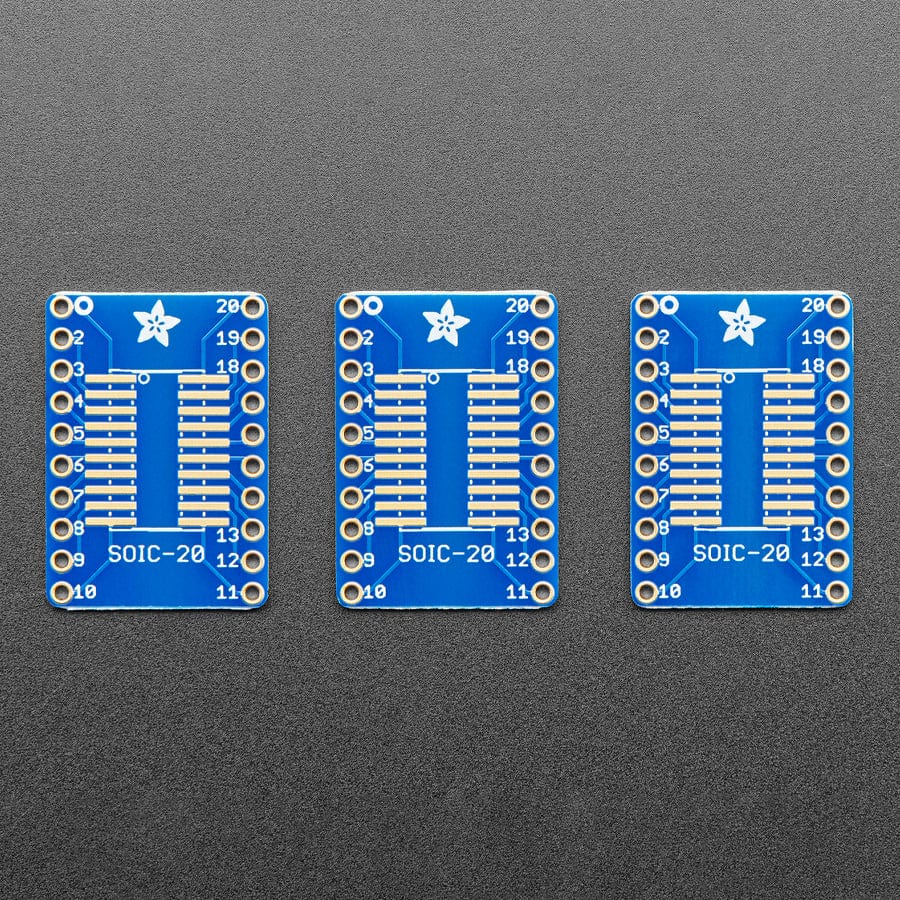

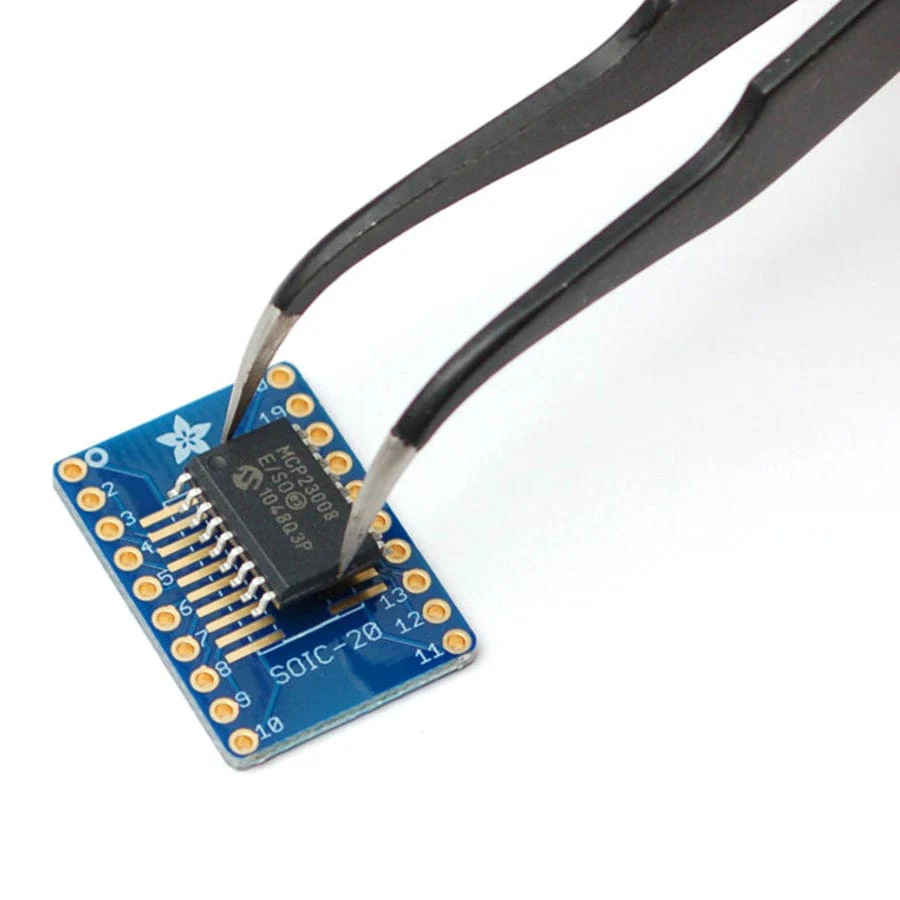

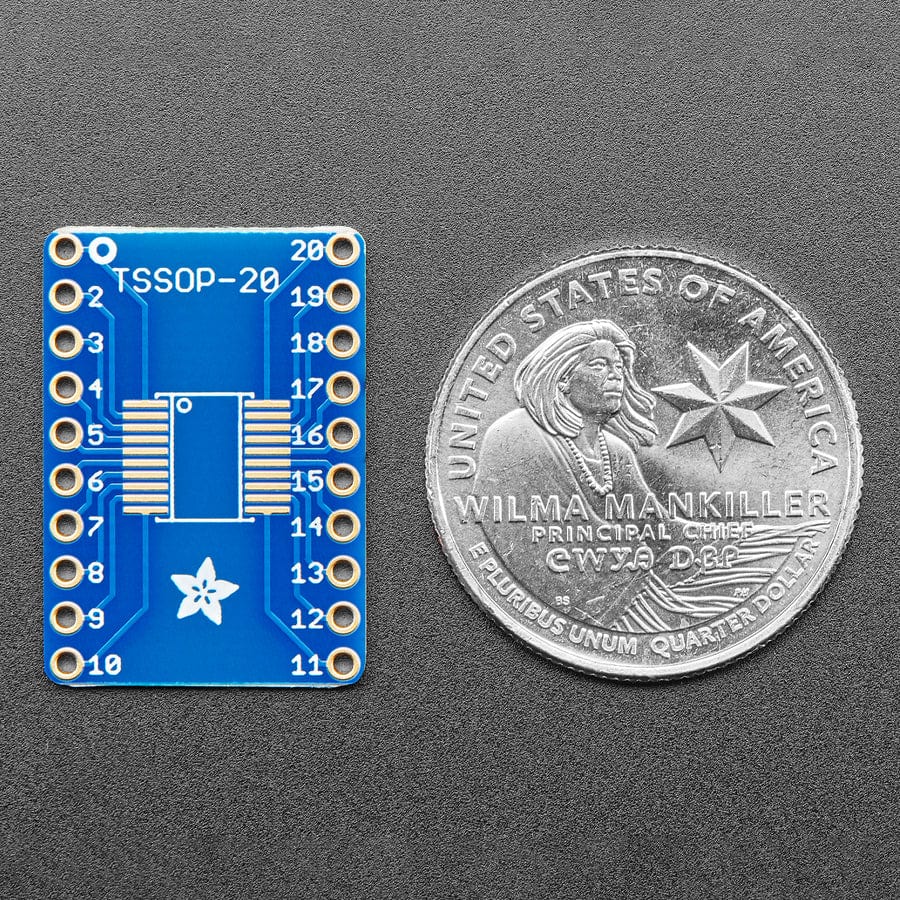

Beguiled by a fancy new chip that is only available in a SOIC or (T)SSOP pinout? This breakout PCB set will make your life much much easier and get you prototyping faster than ever. One side has a 20-TSSOP pin out with traces going to two rows of 0.1" spaced holes, the other has 20-SOIC. Solder your chip to either side, and you're ready to rock on any solderless breadboard.
Each item comes with three PCBs, each PCB is identical and can support either a SOIC (narrow, medium or wide variety) or TSSOP. Standard thickness PCBs, with 0.6" spacing between the two rows. You can of course use a smaller chip, but the pin numbering won't be right, so use care.
Chip is NOT included
Note: The board does not include headers, so why don't you pick some up?
Specifications
- 17.79mm wide x 25.63mm long x 1.62mm high
Resources
Original: $4.40
-65%$4.40
$1.54More Images
SMT Breakout PCB for SOIC-20 or TSSOP-20 - 3 Pack
Beguiled by a fancy new chip that is only available in a SOIC or (T)SSOP pinout? This breakout PCB set will make your life much much easier and get you prototyping faster than ever. One side has a 20-TSSOP pin out with traces going to two rows of 0.1" spaced holes, the other has 20-SOIC. Solder your chip to either side, and you're ready to rock on any solderless breadboard.
Each item comes with three PCBs, each PCB is identical and can support either a SOIC (narrow, medium or wide variety) or TSSOP. Standard thickness PCBs, with 0.6" spacing between the two rows. You can of course use a smaller chip, but the pin numbering won't be right, so use care.
Chip is NOT included
Note: The board does not include headers, so why don't you pick some up?
Specifications
- 17.79mm wide x 25.63mm long x 1.62mm high
