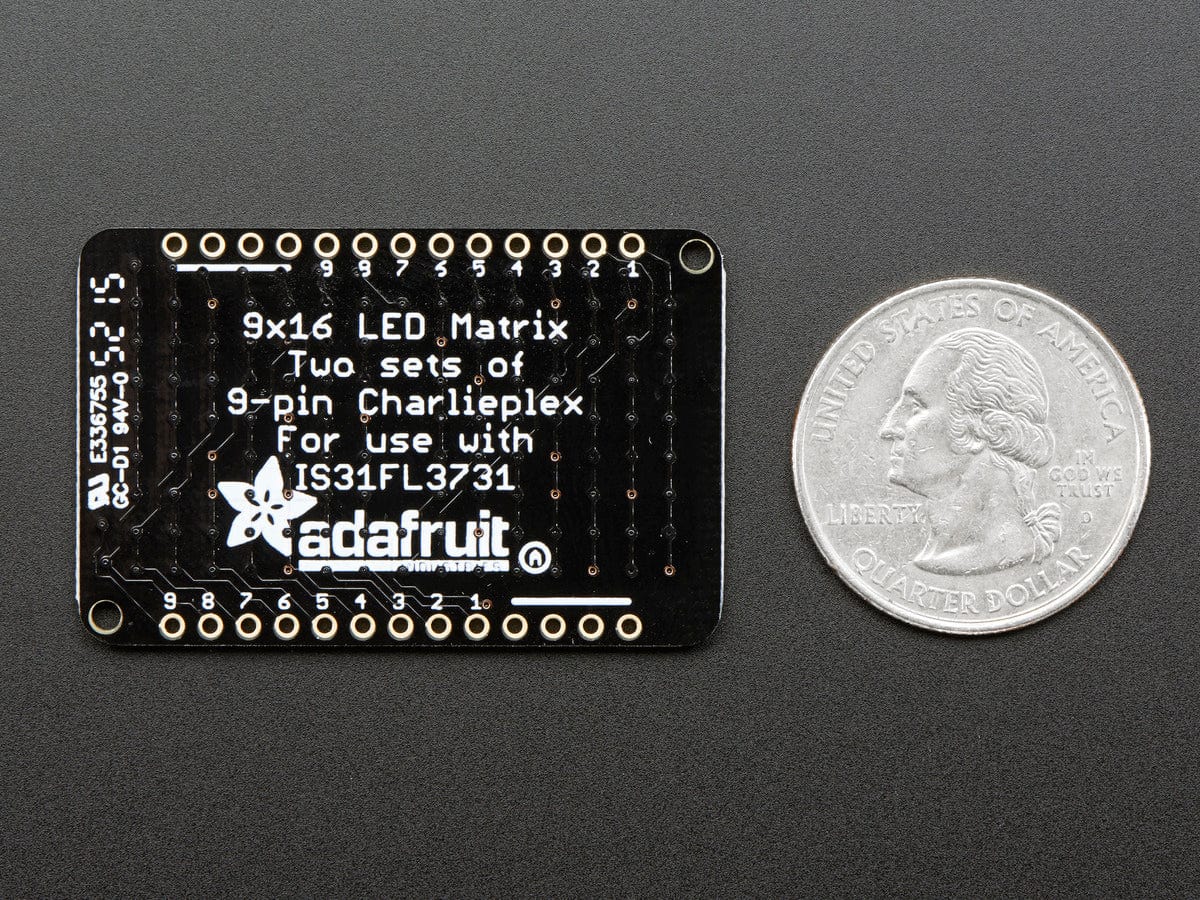

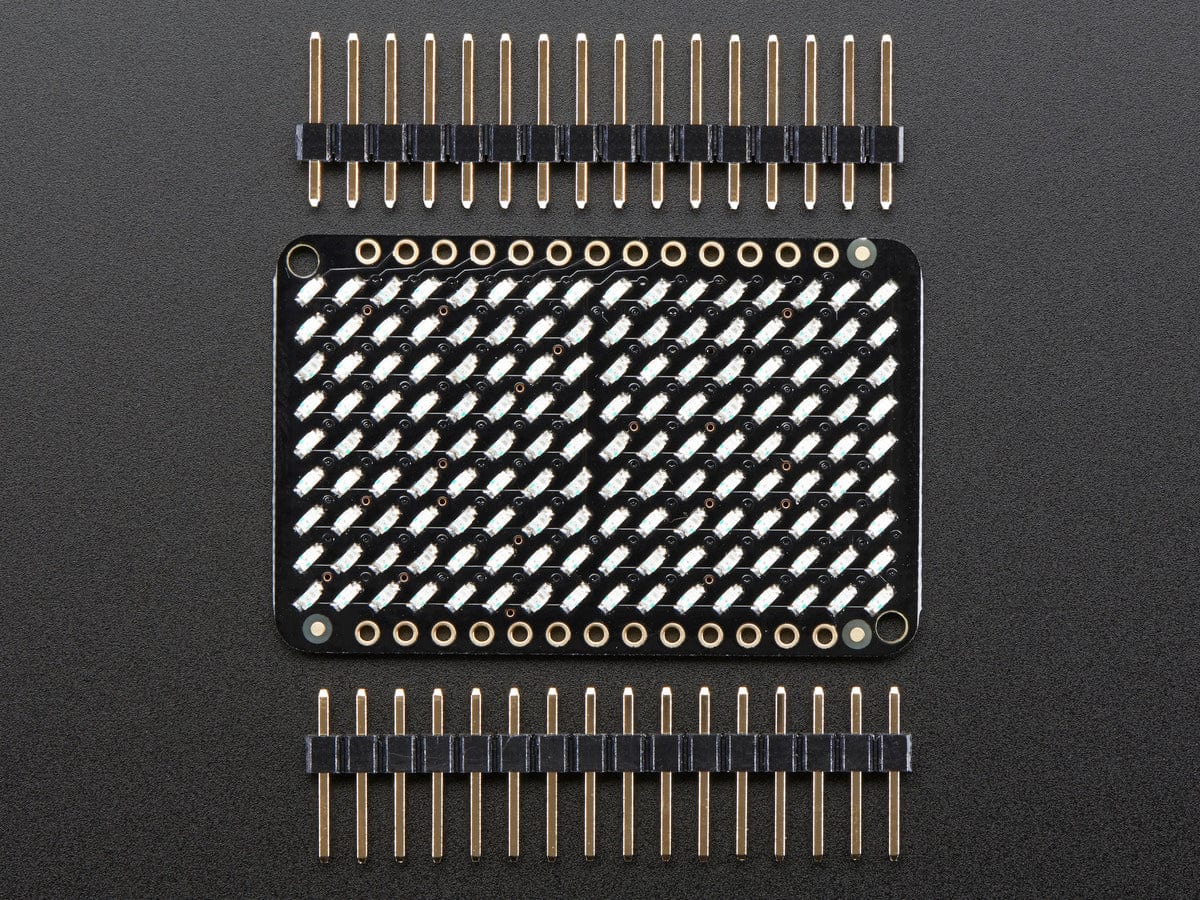

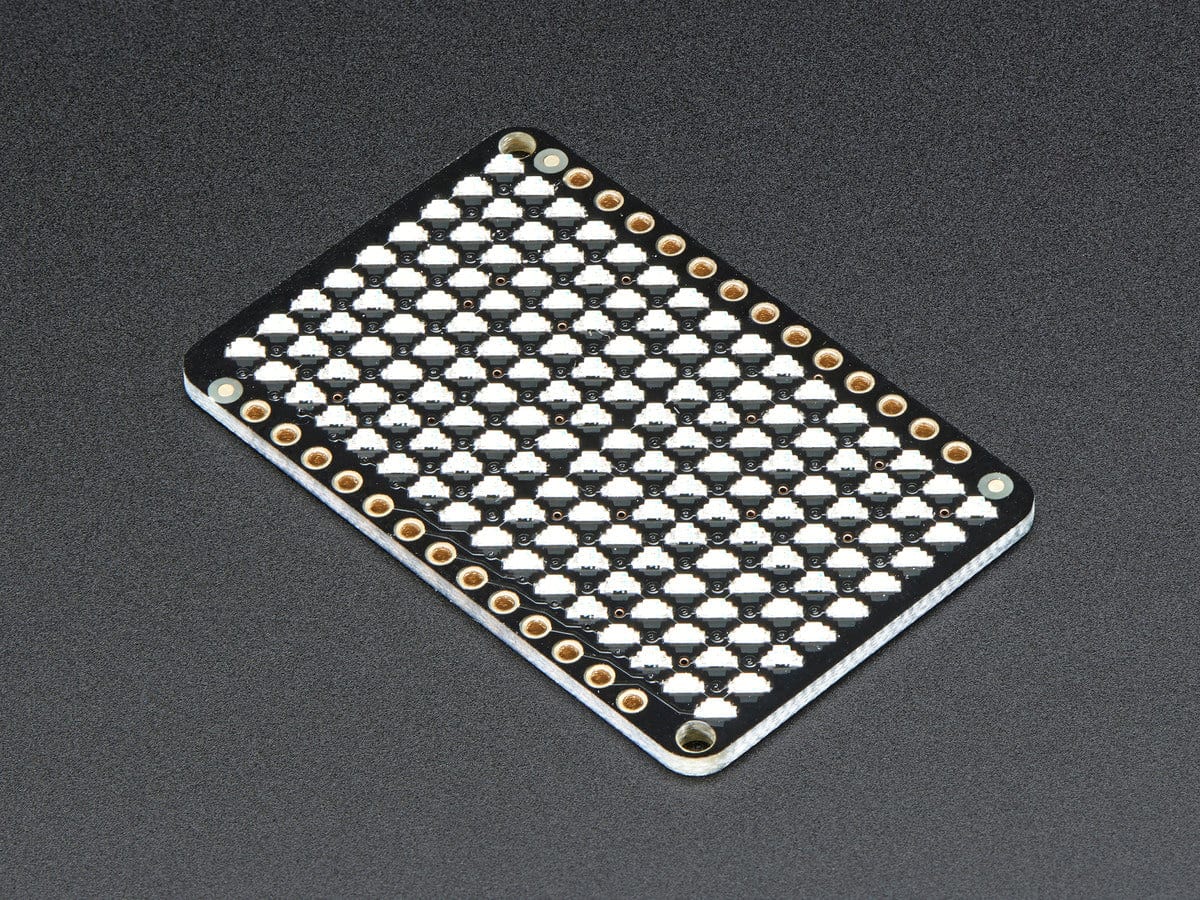

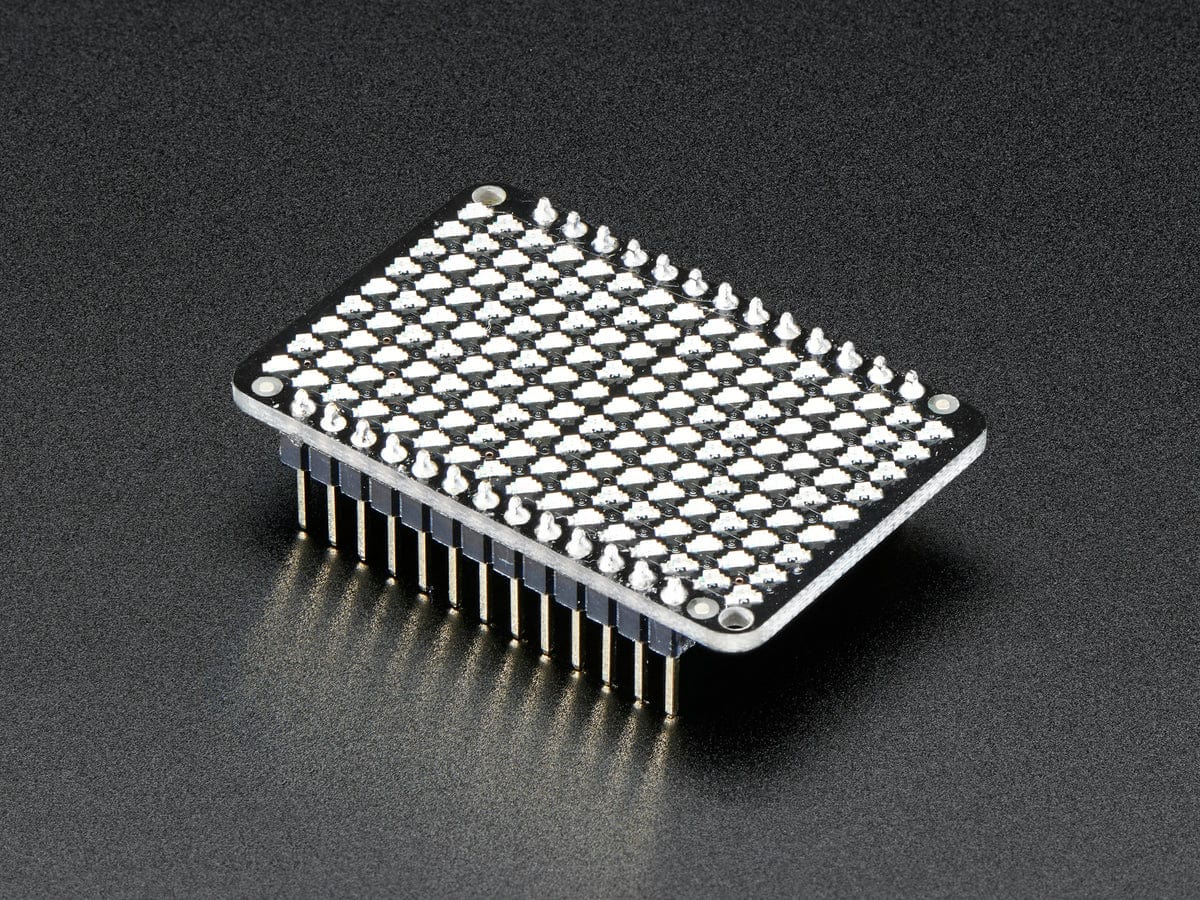

LED Charlieplexed Matrix - 9x16 LEDs - Green
These are 9x16 Charlieplexed LEDs designed to match with the Adafruit 16x9 Charlieplexed PWM LED Matrix Driver - IS31FL3731. You don't get any resistors or driver chips with this grid, its just a mess of LEDs in a charlieplexed arrangement
This is the Green version. Check out our other colors!
Technical Details
- 43.3mm x 27.8mm x 2.4mm / 1.7" x 1.1" x 0.09"
- Weight: 3.8g
- Datasheet, schematic, EagleCAD PCB files, and Fritzing available in the product tutorial
Original: $7.70
-65%$7.70
$2.69More Images
