60-pin 0.5mm FFC / FPC Extender [Discontinued]

60-pin 0.5mm FFC / FPC Extender [Discontinued]

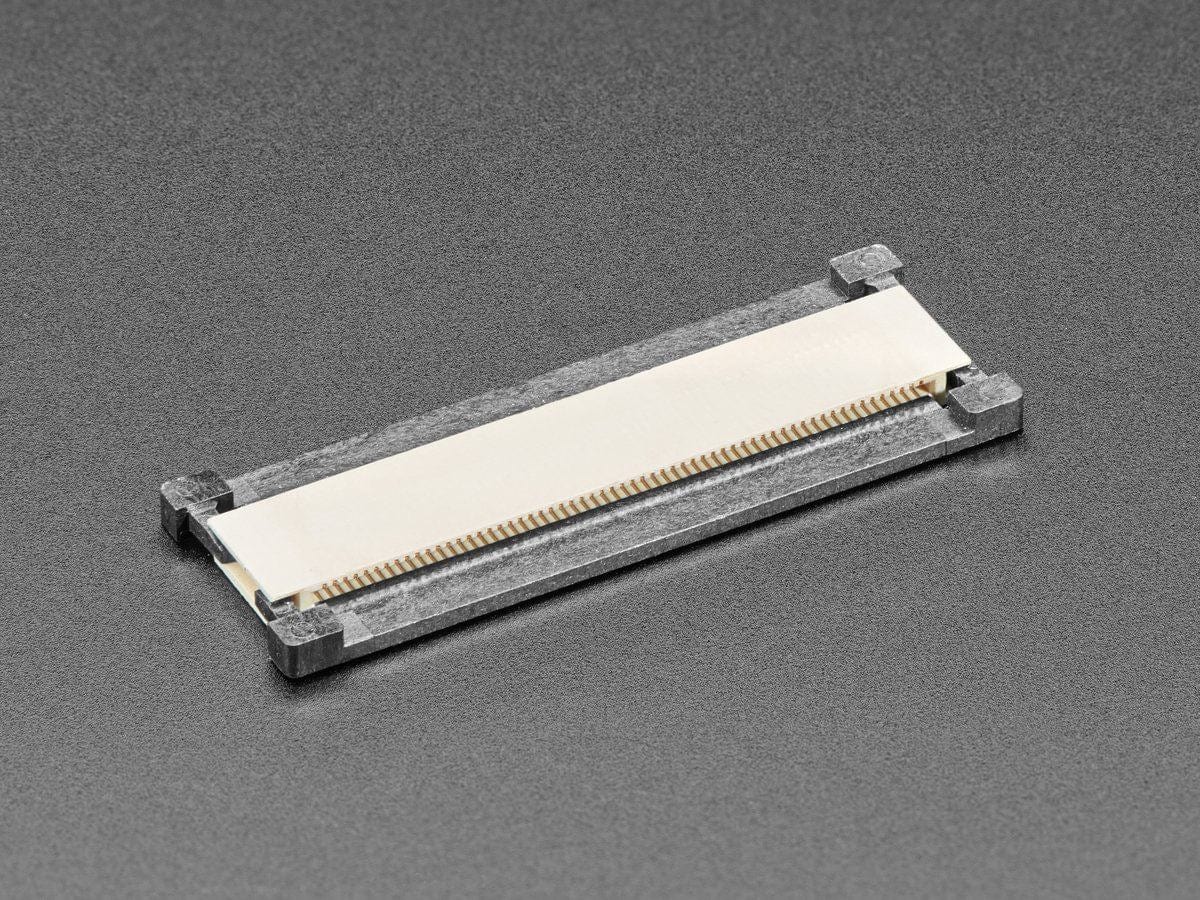

This 60-pin FFC / FPC Extender is very simple. It lets you connect two 60-pin 0.5mm pitch FFC (Flexible Flat Cable) / FPC (Flexible Printed Circuit) cables end-to-end and extend the length.

Note that pin 1 of one cable is connected to pin 60 of the other so you need to use a cable that has contacts on the same side (type A-A cable)

Carefully pry the two ears of the connectors, plug the cables with contacts pointing up, and then push the ears back in for a solid connection.

Technical Details

  • Product Dimensions: 36.4mm x 10.3mm x 2.0mm / 1.4" x 0.4" x 0.1"
  • Product Weight: 1.2g / 0.0oz
$1.02
60-pin 0.5mm FFC / FPC Extender [Discontinued]—
$1.02

More Images

60-pin 0.5mm FFC / FPC Extender [Discontinued] - Image 2
60-pin 0.5mm FFC / FPC Extender [Discontinued] - Image 3

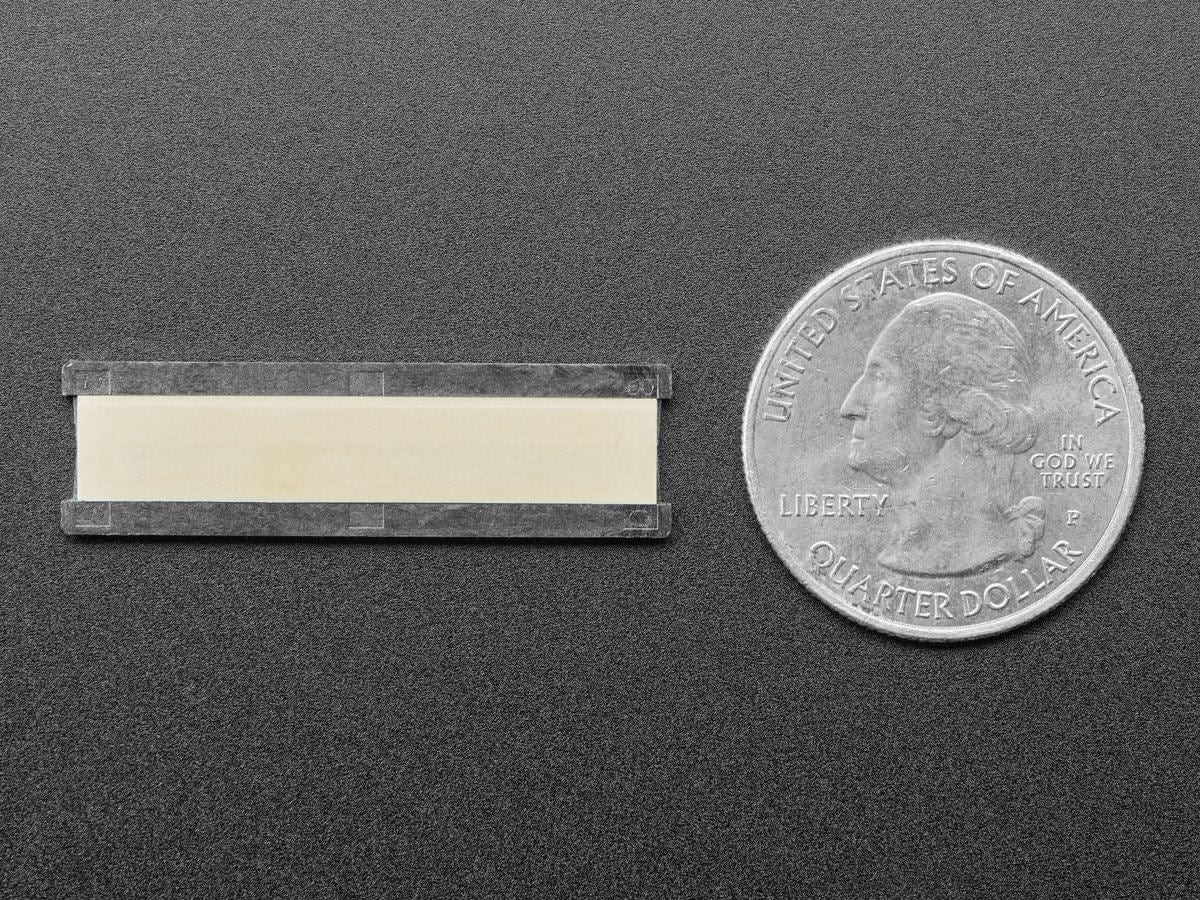

60-pin 0.5mm FFC / FPC Extender [Discontinued] - Image 4
