5" Capacitive Touchscreen LCD (Slimmed-down Version) (800×480)

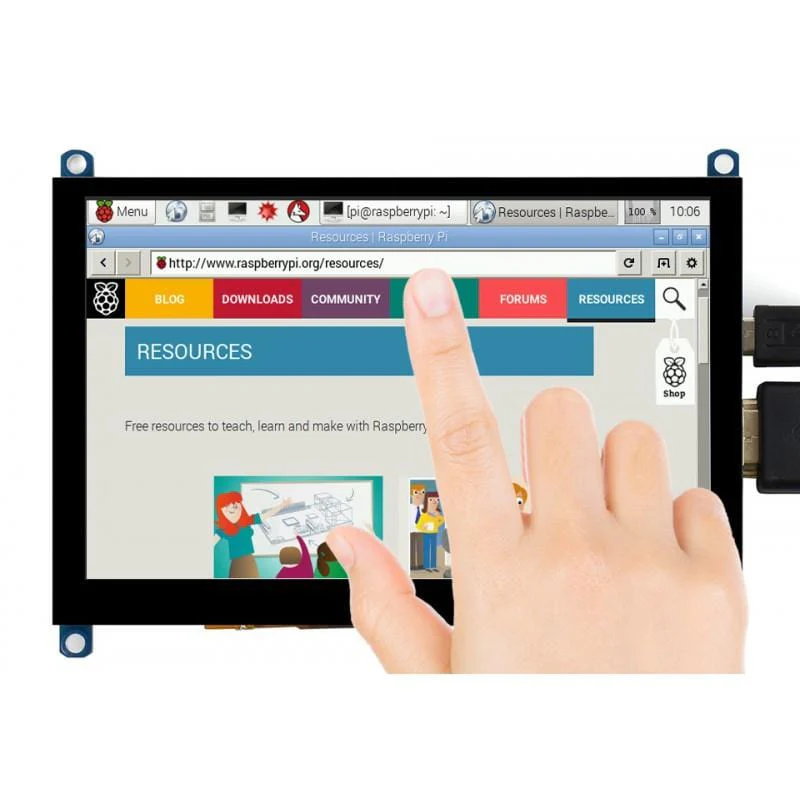

Looking for a medium-sized Display for your next project? Waveshare's 800x400 5-inch Capacitive Touchscreen LCD is the perfect solution for your next Raspberry Pi or Raspberry Pi Zero project.
This 5-inch display is Raspbian and Retropi compatible and is completely driver free which makes implementation super easy. When used in conjunction with a Raspberry Pi, five touch-points are supported. Ubuntu, Kali, and Windows 10 IoT are supported as well but feature single-point touch recognition. Windows versions 7-11 are also supported with five-point touch recognition.
Additionally, this display features a 6H hardness toughened glass panel for added protection.

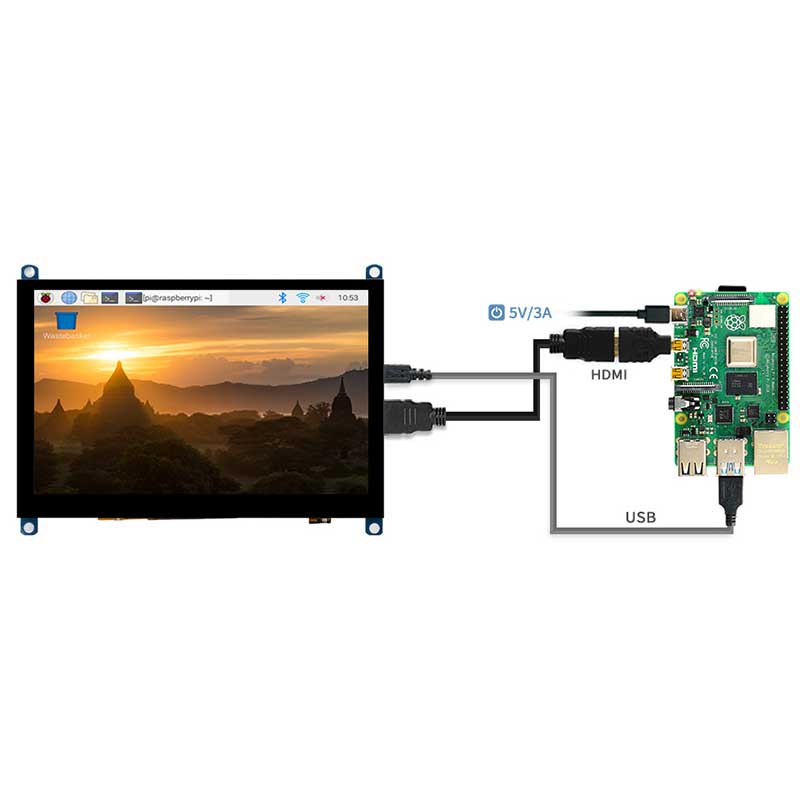

Online development resources are available, which include wiring guidance and example code, with additional information being found on the Waveshare Wiki.
Specifications
- Operating Voltage: 5V
- Connection Interface: HDMI & USB
- Display Panel: TFT
- Resolution: 800x400 pixels
- Display Size: 5-inch

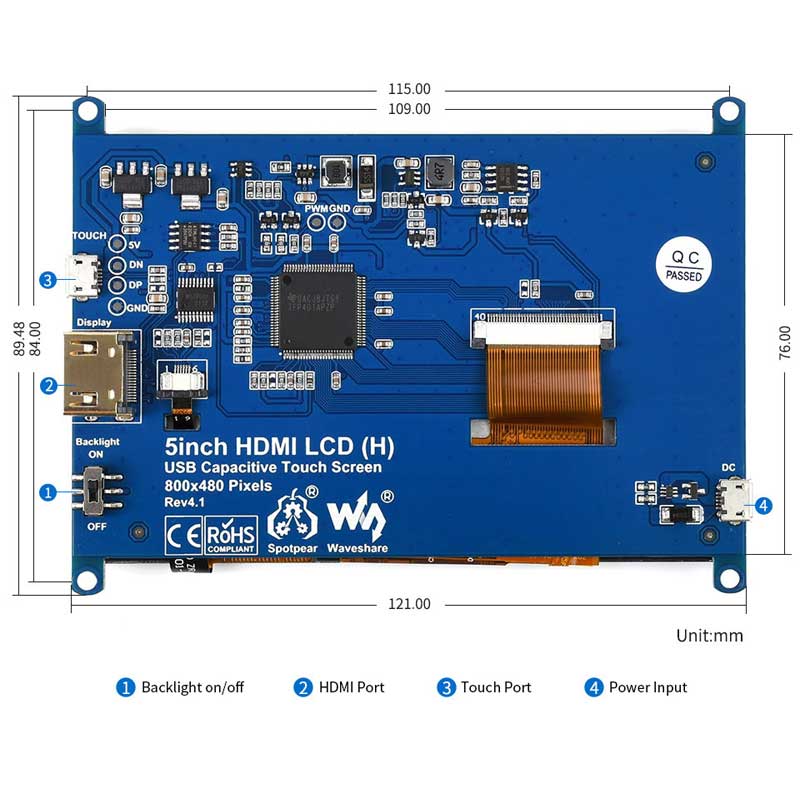

- Dimensions: 121 × 89.48 mm
- Touch Screen Type: Capacitive
Package Contents
- 1x 5" HDMI LCD (H) V4
- 1x HDMI cable
- 1x HDMI to Micro HDMI Adapter
- 1x USB type A plug to micro B plug cable
- RPi screws pack (4pcs)
Resources
