1.8" LCD display Module (128x160)

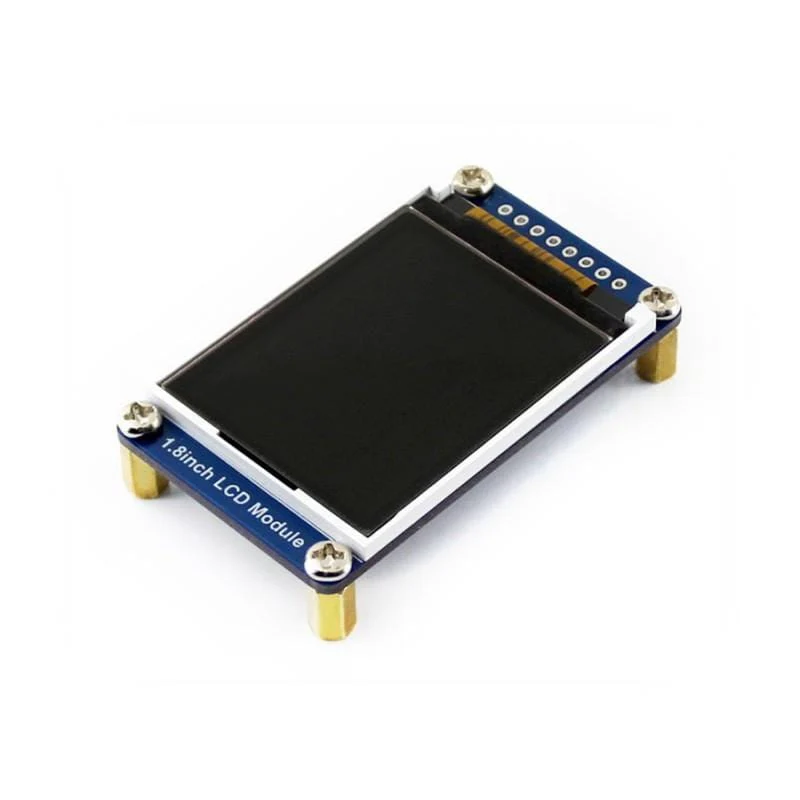

1.8" LCD display Module (128x160)

Looking for a small, full-colour, display for your next project? This little 1.8-inch general-purpose LCD display module, features a resolution of 128x160 pixels, with an embedded controller, and communication via SPI. This is an ideal display for your next Arduino, Adafruit HUZZAH, or Raspberry Pi project.

Features

  • SPI interface requires minimum GPIO for controlling
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

  • Driver: ST7735S
  • Interface: SPI
  • Display color: RGB, 65K color
  • Resolution: 128x160
  • Backlight: LED
  • Operating voltage: 3.3V

        Resources

        Package Contents

        • 1x 1.8" LCD Module
        • 1x PH2.0 20cm 8-Pin

        Dimensions

        Interface

        • VCC: Power (3.3V input)
        • GND: Ground
        • DIN: SPI data input
        • CLK: SPI clock input
        • CS: Chip selection, low active
        • DC: Data/Command selection (high for data, low for command)
        • RST: Reset, low active
        • BL: Backlight
