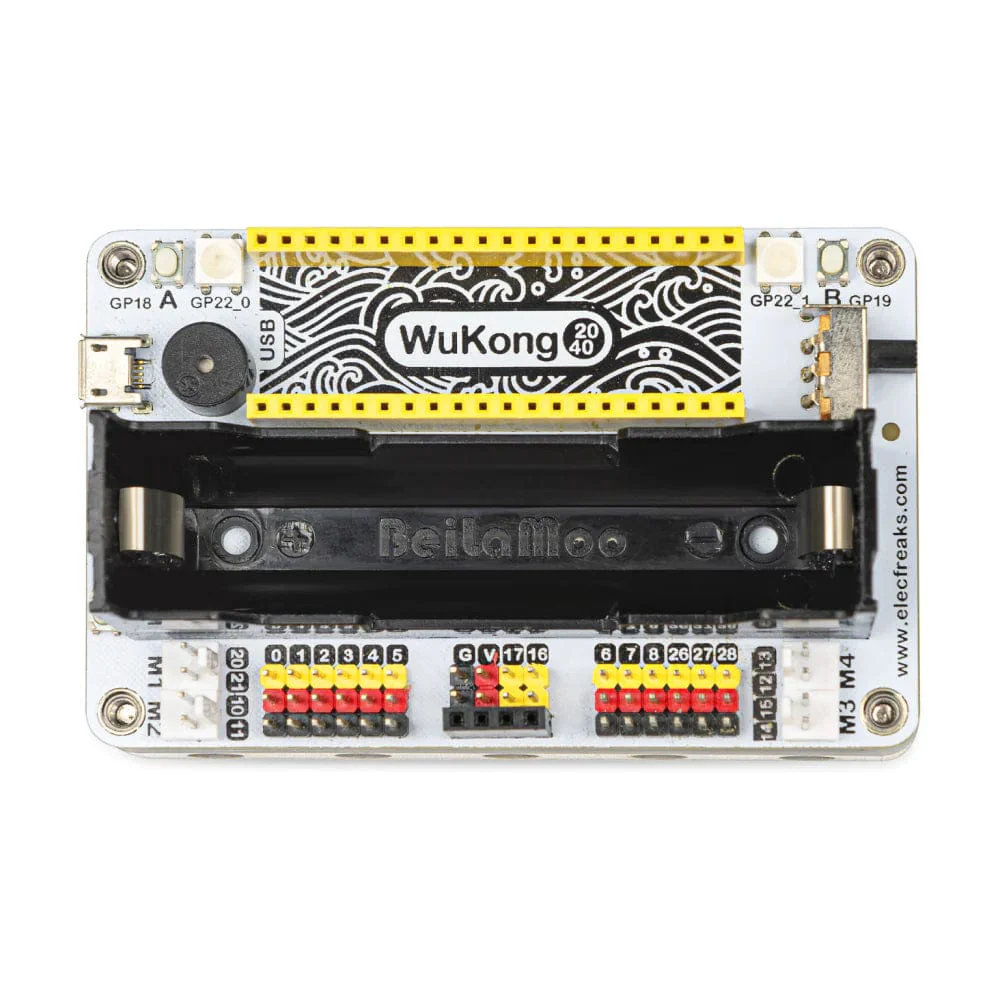

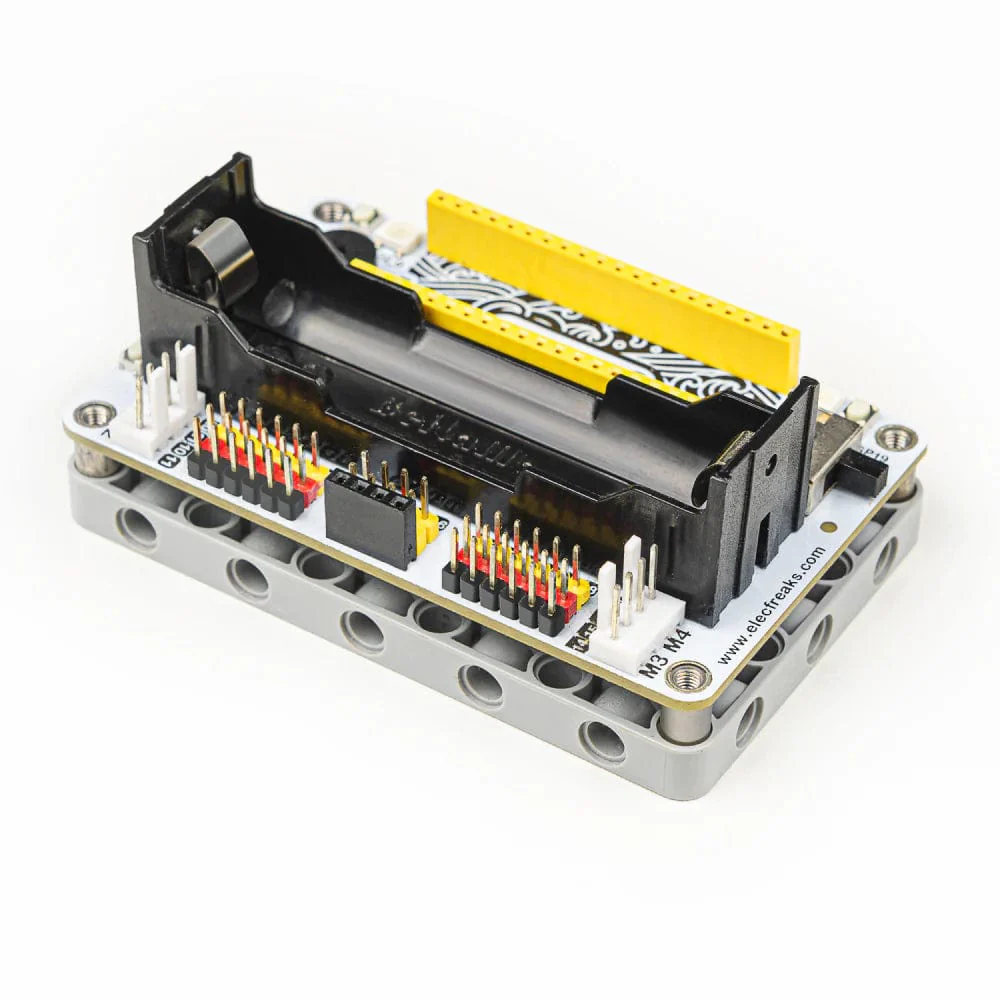

As seen in The MagPi magazine, the Elecfreaks Wukong 2040 is a compact multifunction breakout for your Raspberry Pi Pico with a huge list of handy features making this a go-to accessory for most Pico projects.

The foundation of most projects is covered with 14 GPIO pins broken out along with a separate I2C interface section. You've also got your familiar Micro-USB connection for power/programming, a reset button and a power switch.

Then you have all the extra stuff that makes this board perfect for making fun projects - a WS2812 RGB LED, two user-programmable buttons, onboard buzzer, 18650 battery holder with a charging circuit and indicator LED, building block-compatible base and servo/motor interfaces.

As Rob from The MagPi said..."Do just about everything with a Pico thanks to WuKong 2040"...

18650 battery and Pico not included.

The MagPi Review (9/10)

The MagPi reviewed the WuKong 2040 in issue 131 (page 77), giving it 9/10 - "Small, reasonably priced, and packed with functionality, this board is a fun way to learn and grow with Pico". Read the online article on the board here too.

Features

Multifunction board for the Raspberry Pi Pico
14 general-purpose IO pins
I2C interface
Reset button
2x programmable buttons
WS2812 RGB LED
Onboard buzzer
Motor and servo interfaces
Supports 18650 batteries
- Onboard intelligent power management chip
- Power indicators
Building block frame base for easy structure building
Supports multiple programming methods: MicroBlock, Python, C, C++
Online support materials

Specifications

Size	87.8 × 55.8 × 36.3mm
Net Weight	50g
Power Switch	Switch on/off
Reset Button	Yes
Power Supply	18650 Lithium Battery (optional)
Charging Current	1000 mA
Charging Time	About 120 minutes
Working Voltage	2.8V~4.2V
Overall Battery Life	60 minutes (dependent on capacity of battery)
Expansion GPIO Ports	14 ways
IIC Ports	Yes
SPI Ports	Yes
UART Ports	Yes
Onboard Components	2x Rainbow LEDs 2x Buttons 1 x Buzzer
Motor Driving	4-port
Motor Working Voltage	3.7V
Fixing Method	11 x 7 building block

Resources

Package Contents

1x Wukong 2040 board

18650 battery and Pico not included.

Elecfreaks Products

WuKong 2040 for Raspberry Pi Pico
