The Raspberry Pi Pico is an entirely new type of microcontroller from Raspberry Pi. Small, affordable and flexible - it’s great for learning to code with MicroPython!

Whether you’re looking to learn about the MicroPython programming language, take your first steps in physical computing or want to build a hardware project, the Raspberry Pi Pico – and its amazing community – will support you every step of the way. We also have a great range of accessories for the Pico too!

Looking for a kit with everything you need? Our great-value Starter Kit for Raspberry Pi Pico is just what you need!

Raspberry Pi Pico

The Pico isn’t designed to replace the Raspberry Pi, which is a different class of device known as a single-board computer.

Whereas you might use your Raspberry Pi to play games, write stories and browse the web, your Raspberry Pi Pico is designed for physical computing projects where it can control familiar components such as LEDs, buttons, sensors, motors and even other microcontrollers.

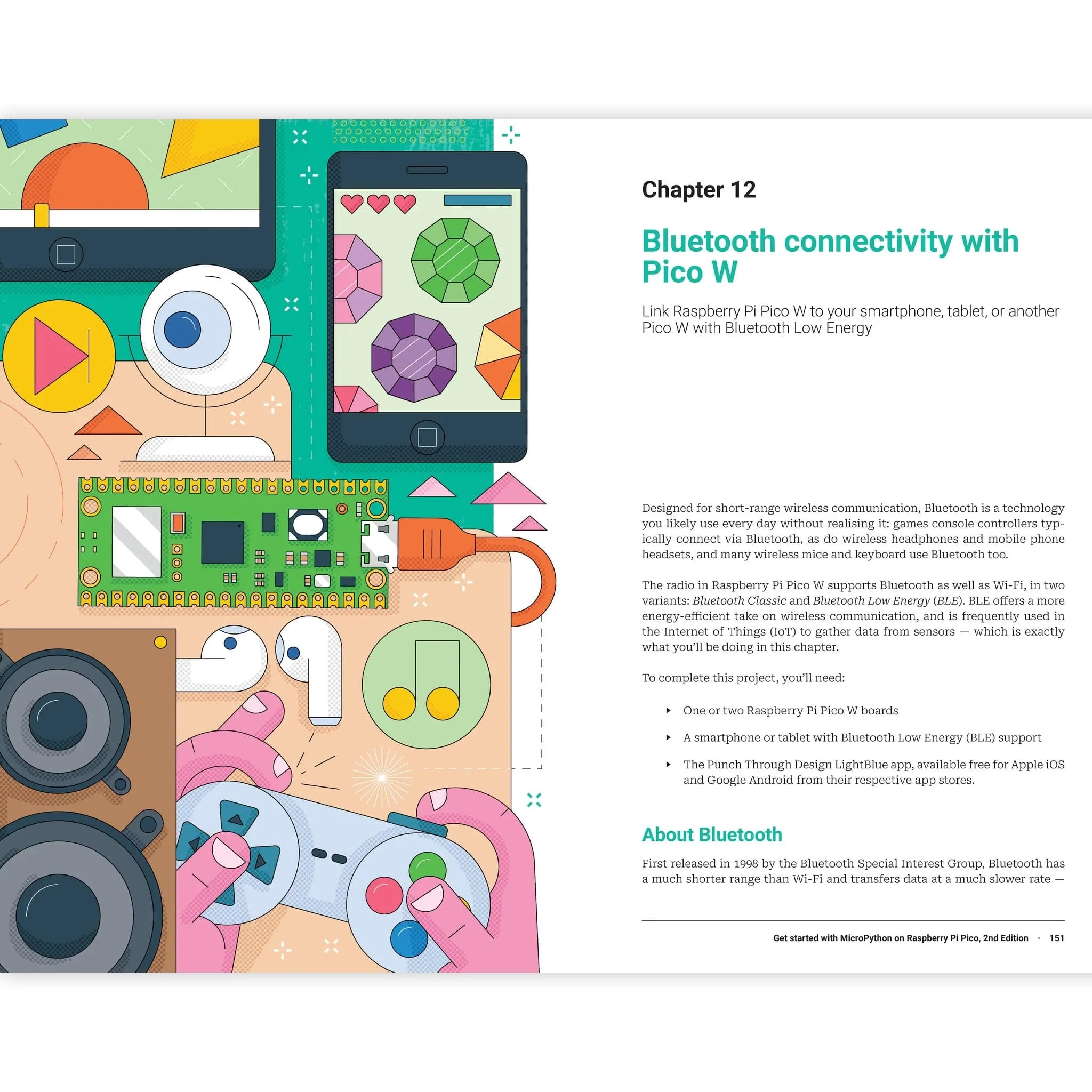

The Pico can be quickly and easily programmed using MicroPython and C/C++ using popular editors such as Thonny. Getting started is also very easy thanks to the officiald Getting Started page or our own Raspberry Pi Pico Getting Started Guide, and there's even a book dedicated to getting started with MicroPython on the Pico!

You can program your Pico from your computer, a Raspberry Pi 4 or even another Raspberry Pi Pico! A wireless-enabled version is also available here.

Raspberry Pi Pico Pinout

Available with or without headers!

The Raspberry Pi Pico is available as the board only, or with headers pre-soldered on the Pico H version. Select your option above before adding to your cart.

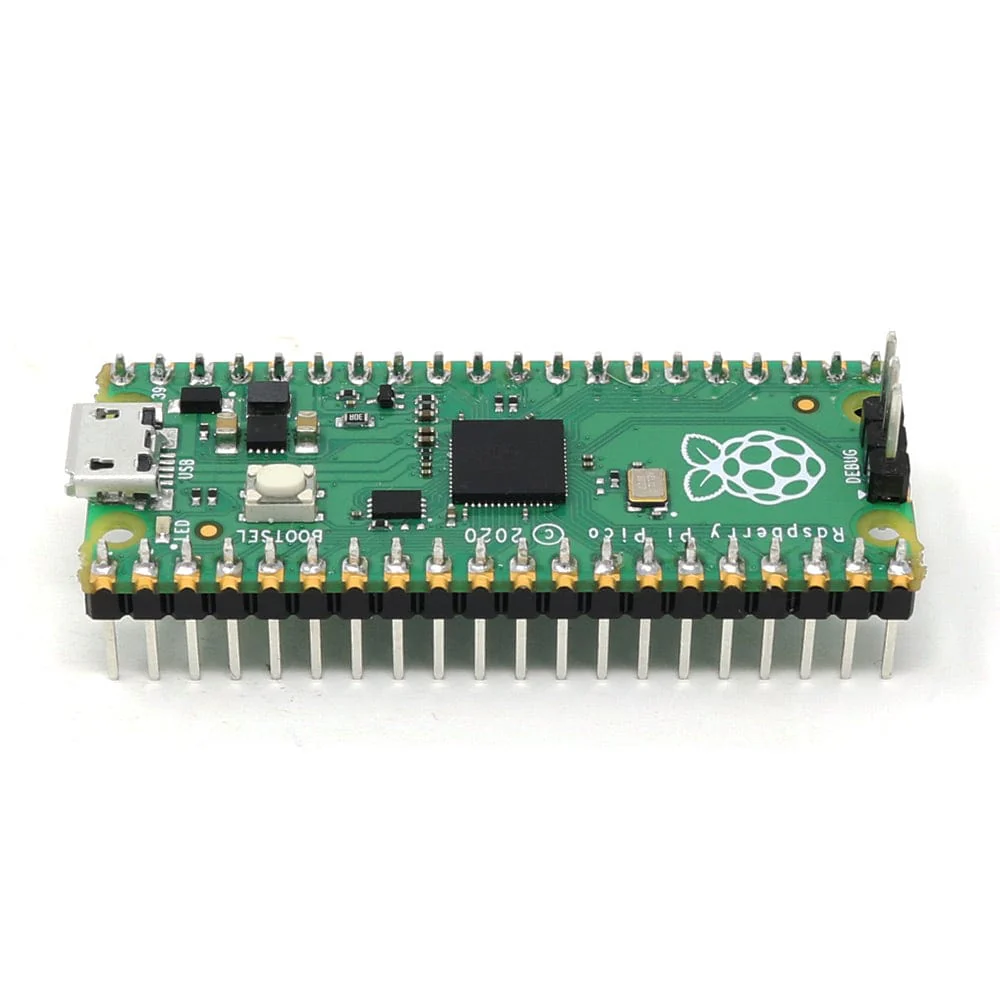

The Pico H comes with pre-soldered GPIO and 3-pin JST-SH debug header.

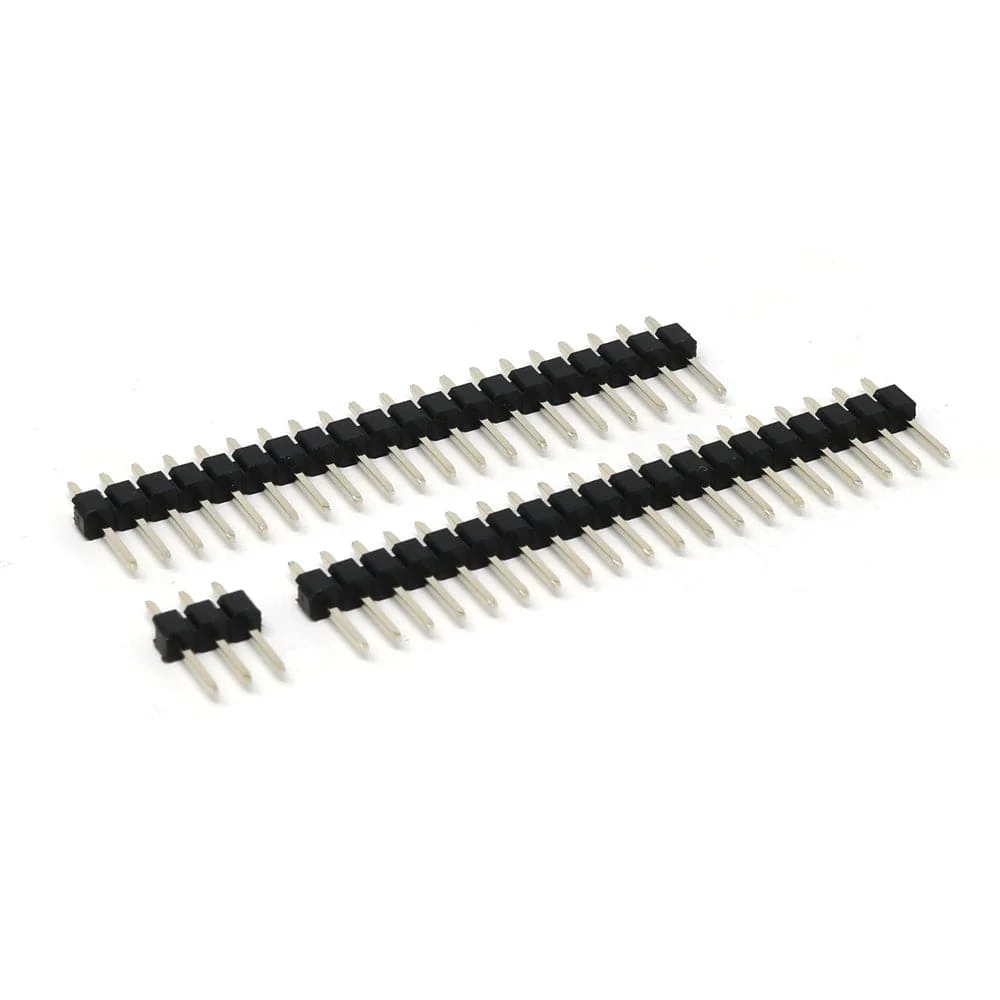

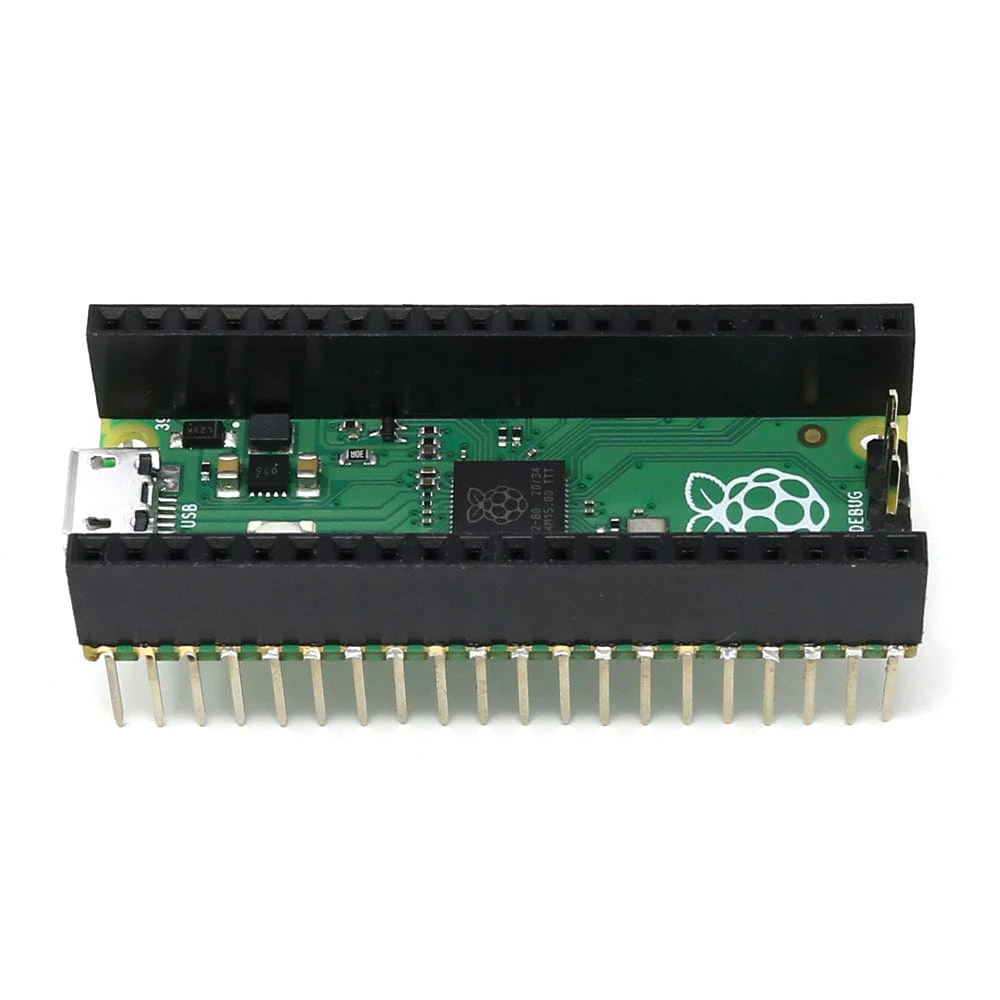

If you would rather solder your own headers, grab a set of our handy colour-coded headers, male, female or stacking headers from the store - all available in a range of colours. We also include headers in our Essential Raspberry Pi Pico Kit which includes lots of other handy bits and bobs.

Raspberry Pi Pico Specifications

The main chip on board is the 'RP2040' made by Raspberry Pi (their first in-house microcontroller chip!) and is a dual-core ARM Cortex M0+ processor, with a flexible clock running up to 133MHz.

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
264kB of SRAM, and 2MB of onboard Flash memory
Castellated module allows soldering directly to carrier boards (non-header version only)
USB 1.1 Host and Device support
Low-power sleep and dormant modes
Drag & drop programming using mass storage over USB
26 multi-function GPIO pins
2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16×controllable PWM channels
Real-time clock (RTC)
Temperature sensor
Accelerated floating-point libraries on-chip
8×Programmable IO (PIO) state machines for custom peripheral support
Dimensions: 51mm x 21mm (click for drawing)
